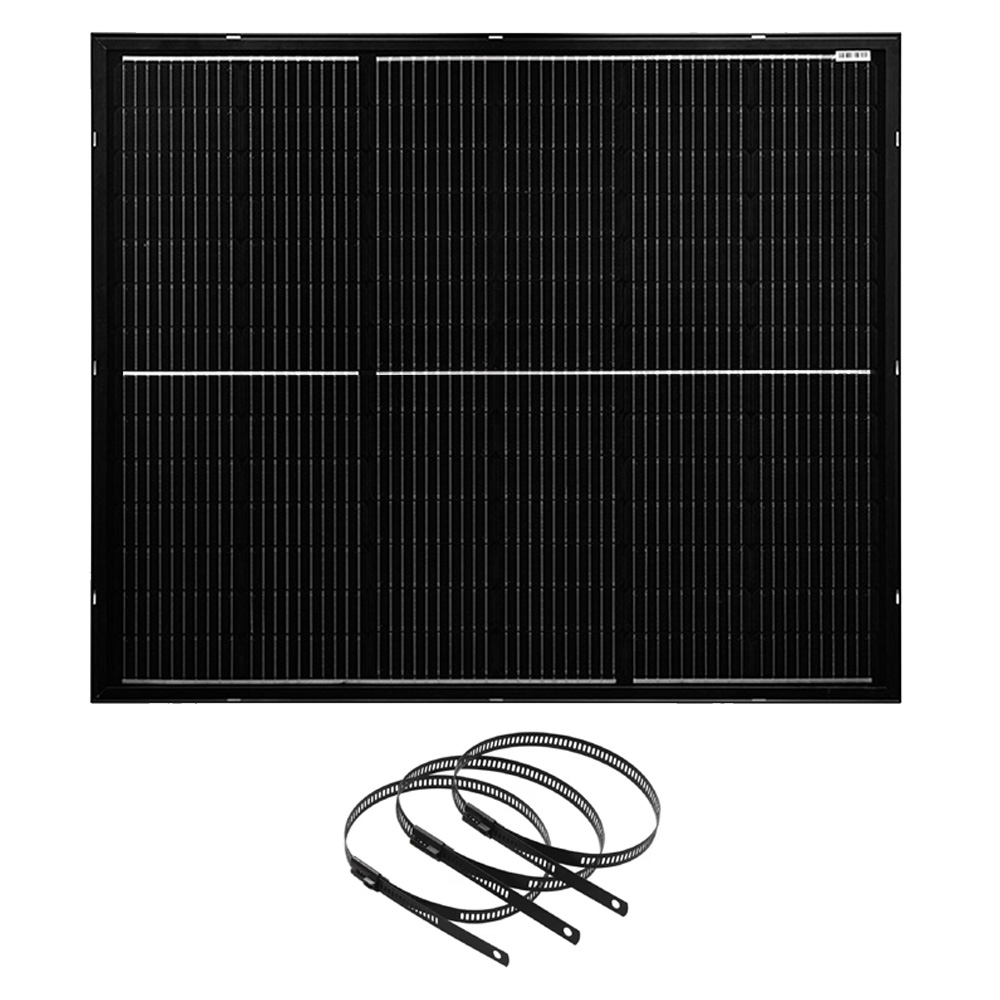

Offgridtec® balcony - solar module set 12V 2x 200W with thin aluminium frame and metal cable tie

The Offgridtec Balcony solar module set 2x 200w (MPN 018375) consists of two 200w solar modules, which work with monocrystalline solar cells and a remarkable efficiency of 22.7%. These modules offer an operating voltage of 24.2v each and combine outstanding energy efficiency, aesthetic design and easy installation at an affordable cost.

With the 12 metal cable ties included, the set is ideal for mounting on balconies and makes it easy to integrate photovoltaic technology to generate green energy on site.

Features of the Offgridtec balcony solar module set

• Powerful monocrystalline solar cells
• 8mm thin aluminum frame
• Incl. metal cable ties for easy installation

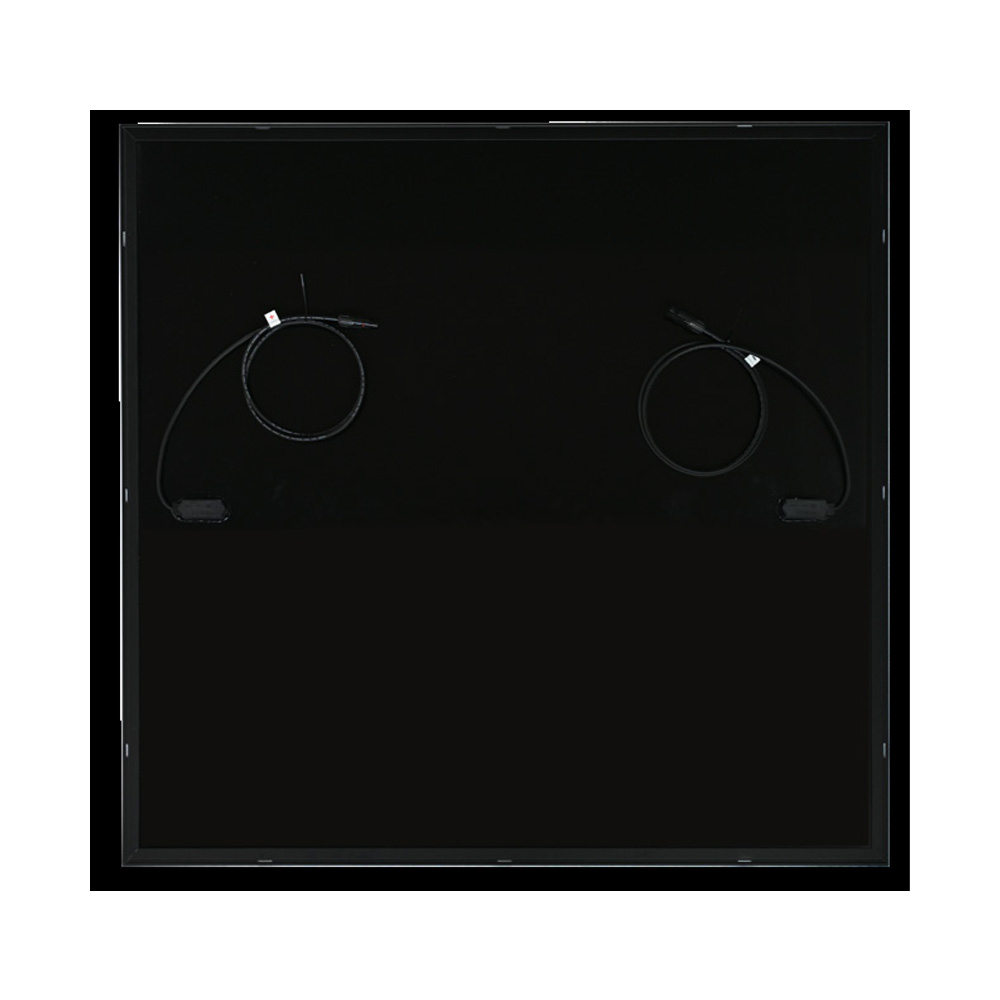

• 40cm connection cable
• Proven quality directly from Offgridtec
• High operating voltage of 24.2v
• Cell efficiency of 22.7%

Monocrystalline solar modules

Monocrystalline solar modules consist of silicon crystals made from a single crystal. Their manufacturing process makes them more efficient, as they have a higher efficiency than polycrystalline modules. These modules are characterized by a uniform color and require less space for the same output compared to polycrystalline modules. Monocrystalline technology allows more sunlight to be converted into electricity and is therefore well suited to applications with limited space or high power requirements.

Universally applicable

Offgridtecs balcony solar module set can be used universally. It is ideal for balcony power plants thanks to the metal cable ties supplied. This makes installation on the balcony railing child's play. For example, in 12 volt Solaranstallations on garden sheds, allotment gardens or for the power supply of lighting applications, self-sufficient signal and monitoring technology systems and many more. But this panel also cuts a fine figure in mobile systems such as mobile home solar systems.

Thin aluminum frame

Thin aluminum frames for solar modules offer many advantages. Their lower weight makes them easier to transport and install. Thinner frames also enable more efficient heat dissipation, which in turn increases the performance of the solar modules. Their slim design not only contributes to an aesthetically pleasing appearance, but also optimizes the space requirements of the Solarasystem.

The most important technical data at a glance

Per module

• Power (Pmax): 200w
• Operating voltage (Vmp): 24.2 V
• Open circuit voltage (Voc): 28.3 V
• max. current (Imp): 8.27 A
• Short-circuit current (Isc): 8.68 A
• max. system voltage: 1000 V
• permissible ambient temperature: -40°C - +85°C
• Number of cells: 6x7

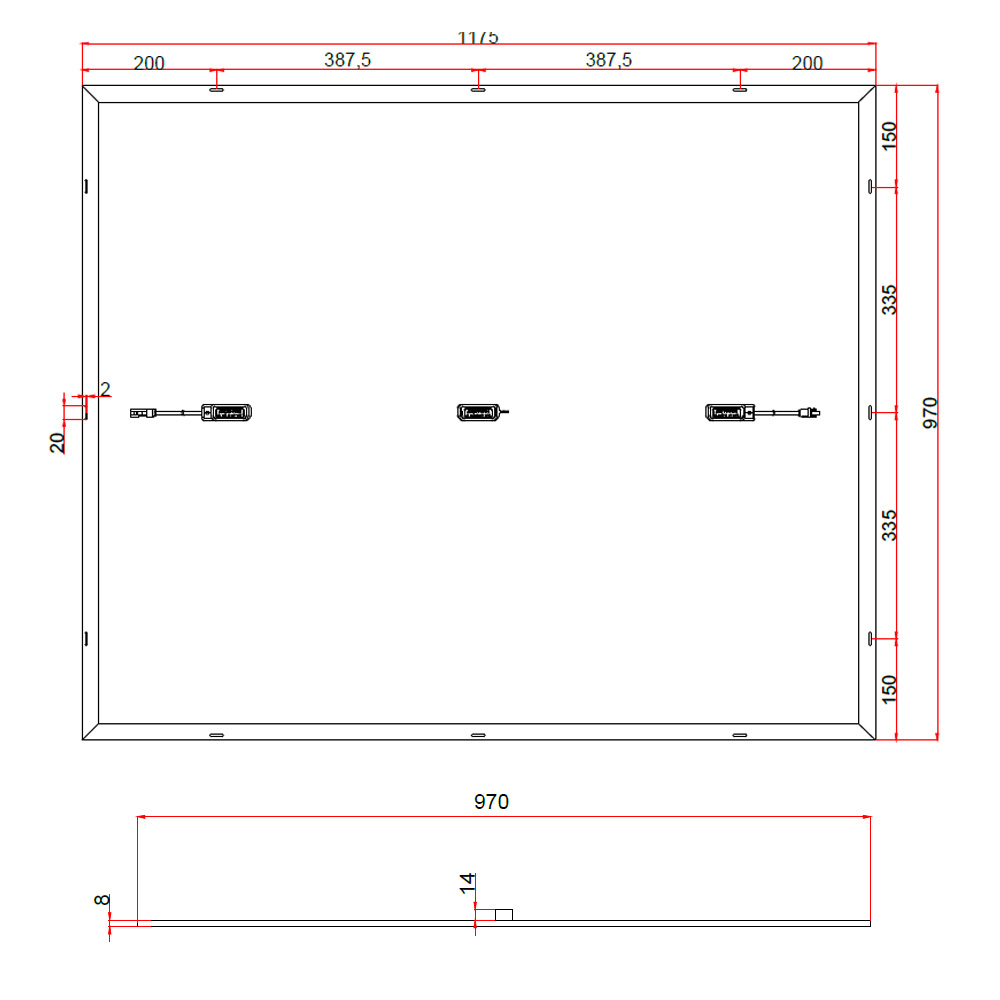

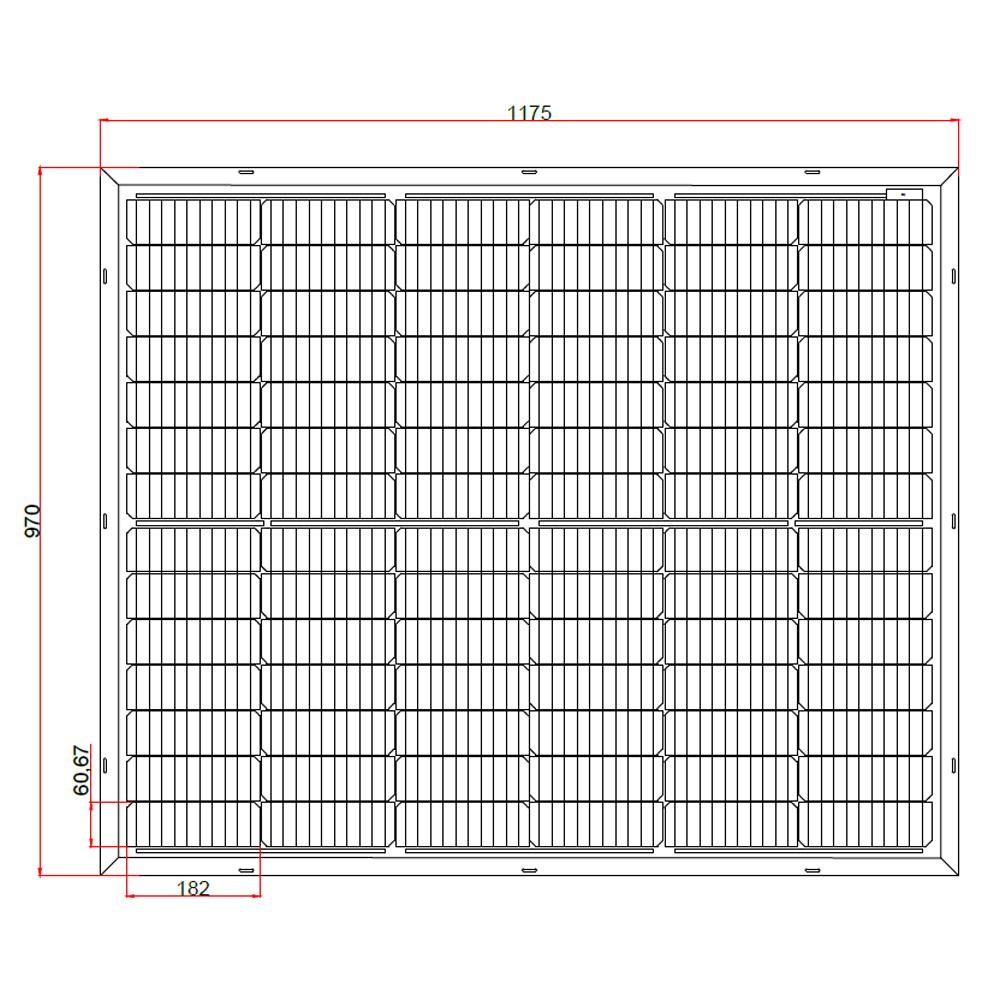

• Dimensions: 1175 x 970 x 8mm
• Weight: 9,8kg
• Part number: 018375

Scope of delivery:

1x Offgridtec Balcony - Solar module set 2x 200w (3-01-018375)
12x metal cable ties
