Offgridtec Backup kit retrofit kit 20.5kWh with Pytes 48100r-c battery Victron MultiPlus-II 48/5000 3-phase

The 3-phase backup systems from Offgridtec are ideal for emergency power supply or for expanding an existing solar system. The systems contain lithium-ion batteries from Pytes the matching MultiPlus-II inverters and a Cerbo GX MK2 from Victron Energy for system monitoring. This allows you to secure your energy supply even in the event of a power failure.

With the batteries from Pytes, you have a storage capacity of 20.5 kwh to 30.7 kwh, depending on your choice, to use your energy efficiently and remain self-sufficient for longer if required. Thanks to the UPS function, the MultiPlus remains switched on even in the event of a mains failure and takes over the supply to the connected consumers. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices can be guaranteed.

Areas of application for the Offgridtec backup kit:

• Emergency power supply
• Off-grid solar systems (stand-alone systems)
• Retrofitting existing PV systems
• Grid-connected power supply
• UPS systems

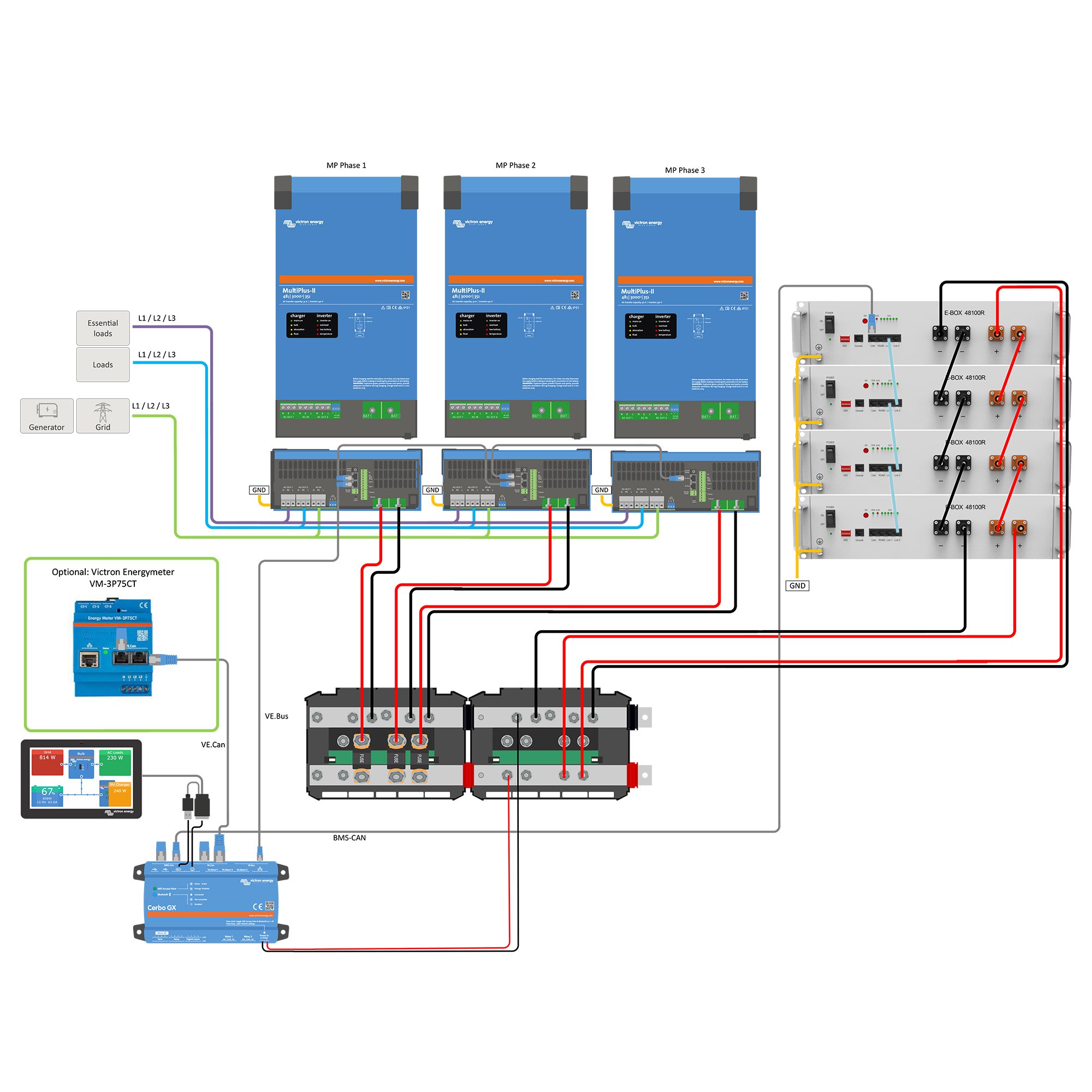

what does the Offgridtec backup system contain?

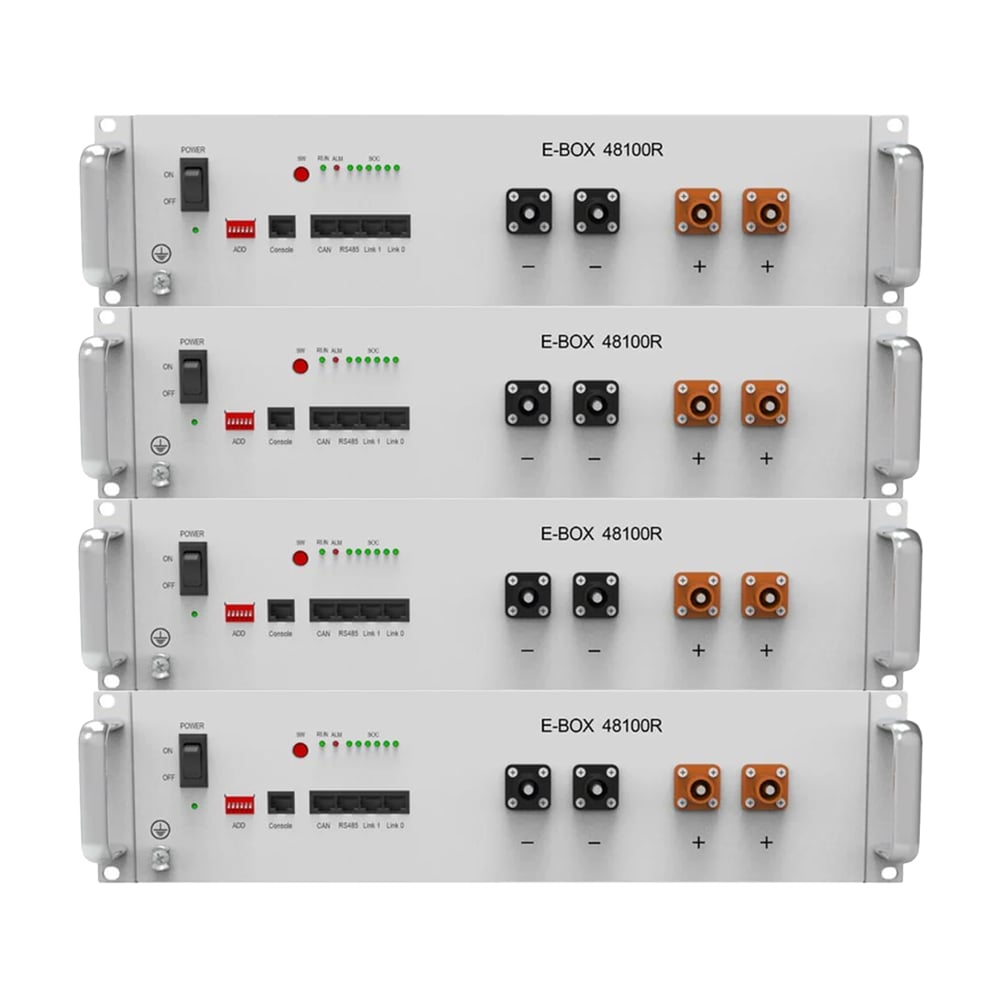

• Pytes E-Box-48100r-c 100ah 51v LiFePO4 battery (depending on selection 4 or 6x)

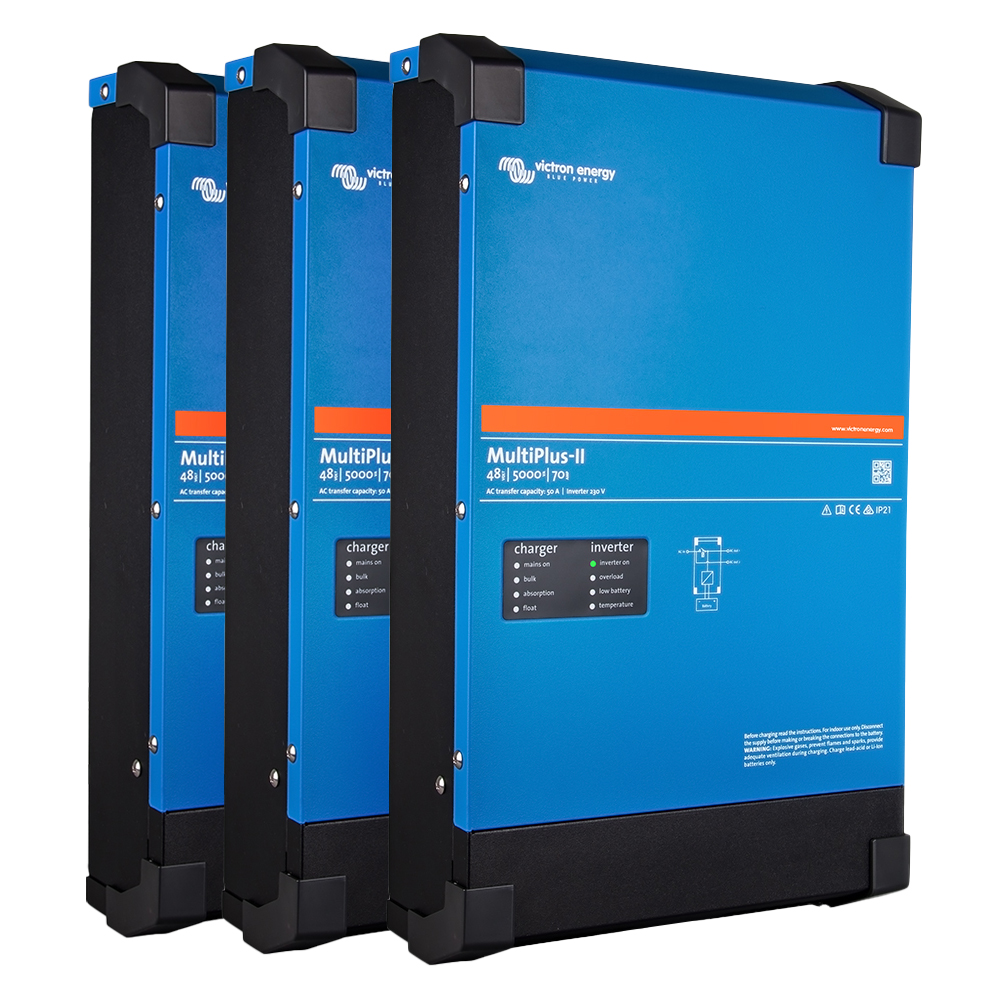

• 3x Victron MultiPlus-II 48/5000/70-50 230V
• 1x Victron Cerbo GX MK2 communication center System monitoring
• 1x Victron gx Touch 50 display panel for Cerbo gx

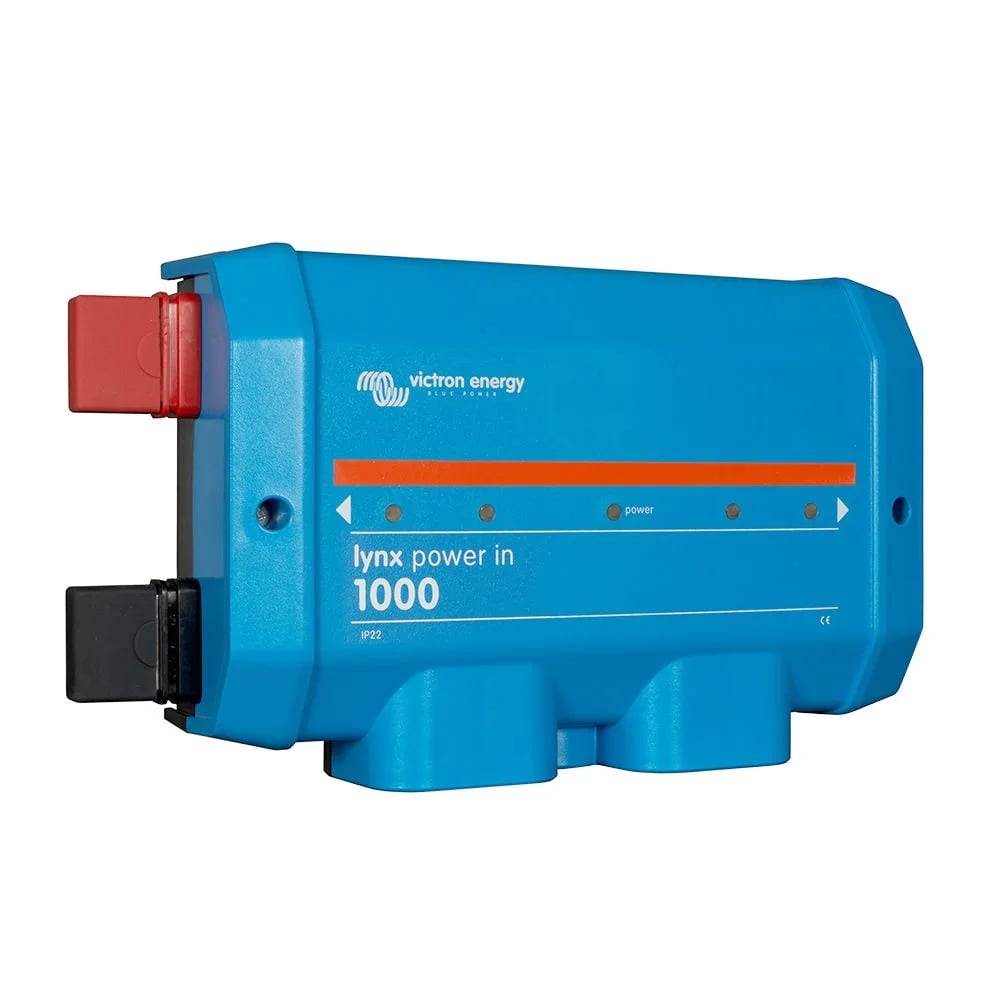

• 1x Victron Energy Lynx Power In (m8)

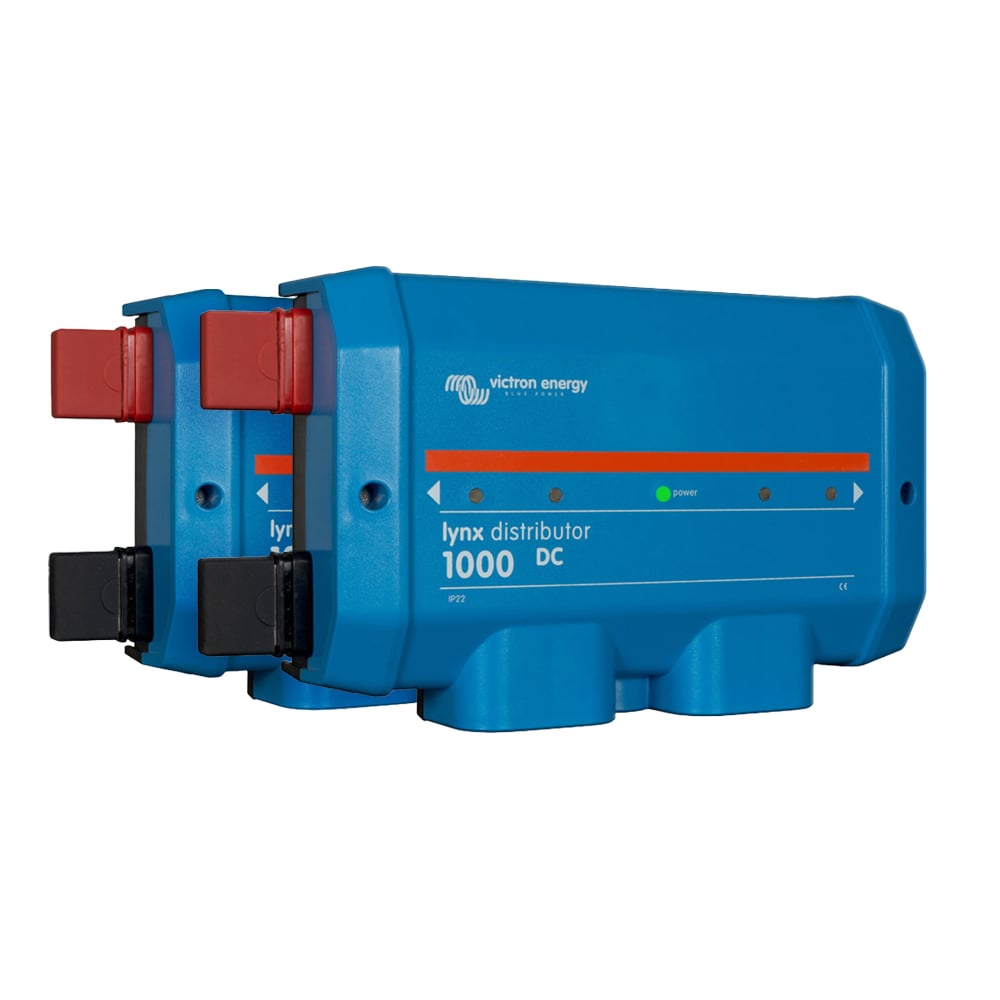

• 1x Victron Lynx Distributor (m8)

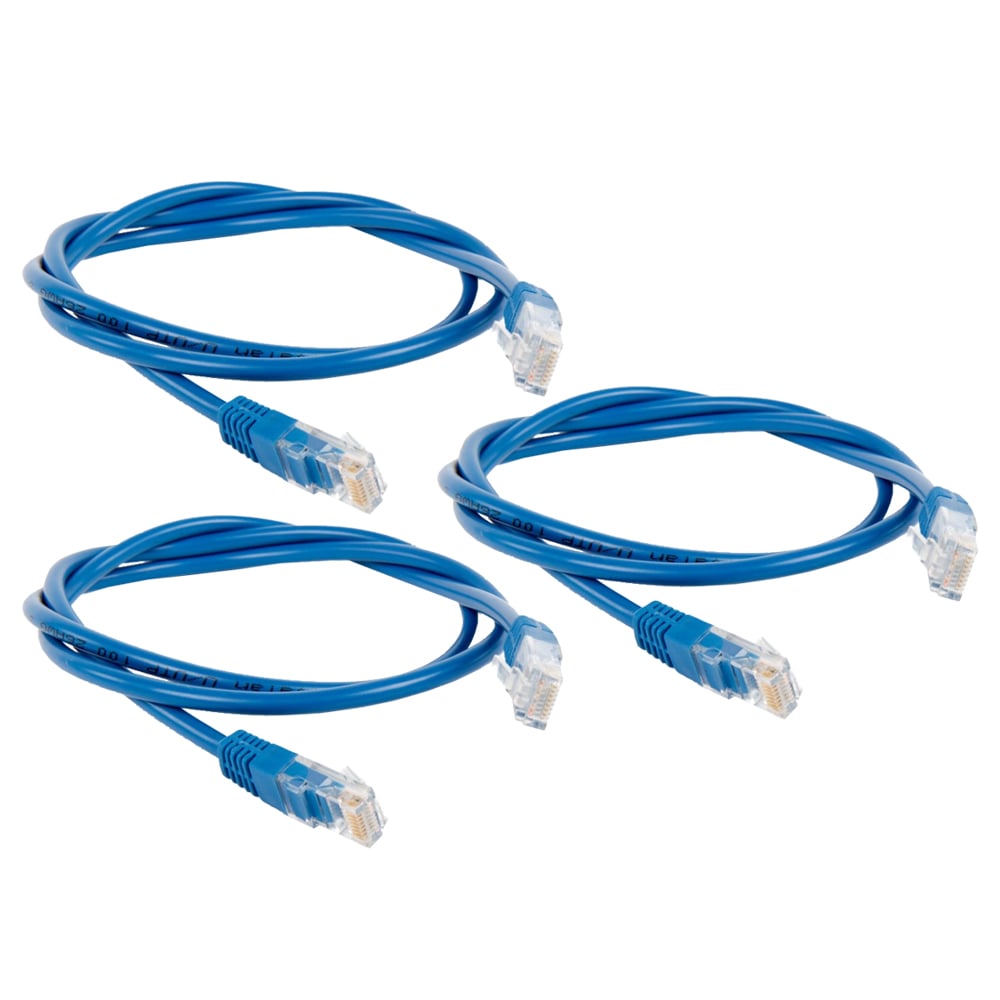

• 2x 0.9m Victron rj45 utp cable
• 1x 3m Victron rj45 utp cable

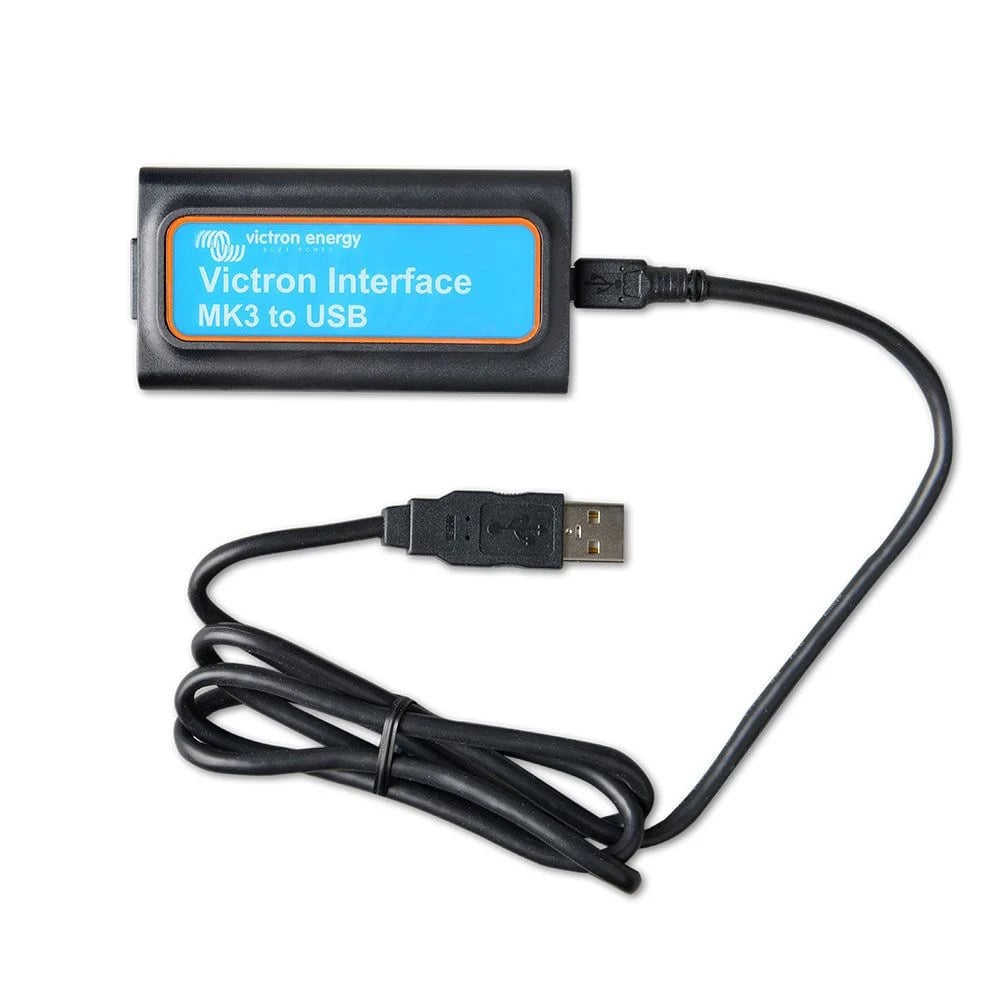

• 1x Victron mk3-usb VE.bus to usb interface
• 1x Pytes data cable battery to Victron Inverter 3.5m MultiPlus 2

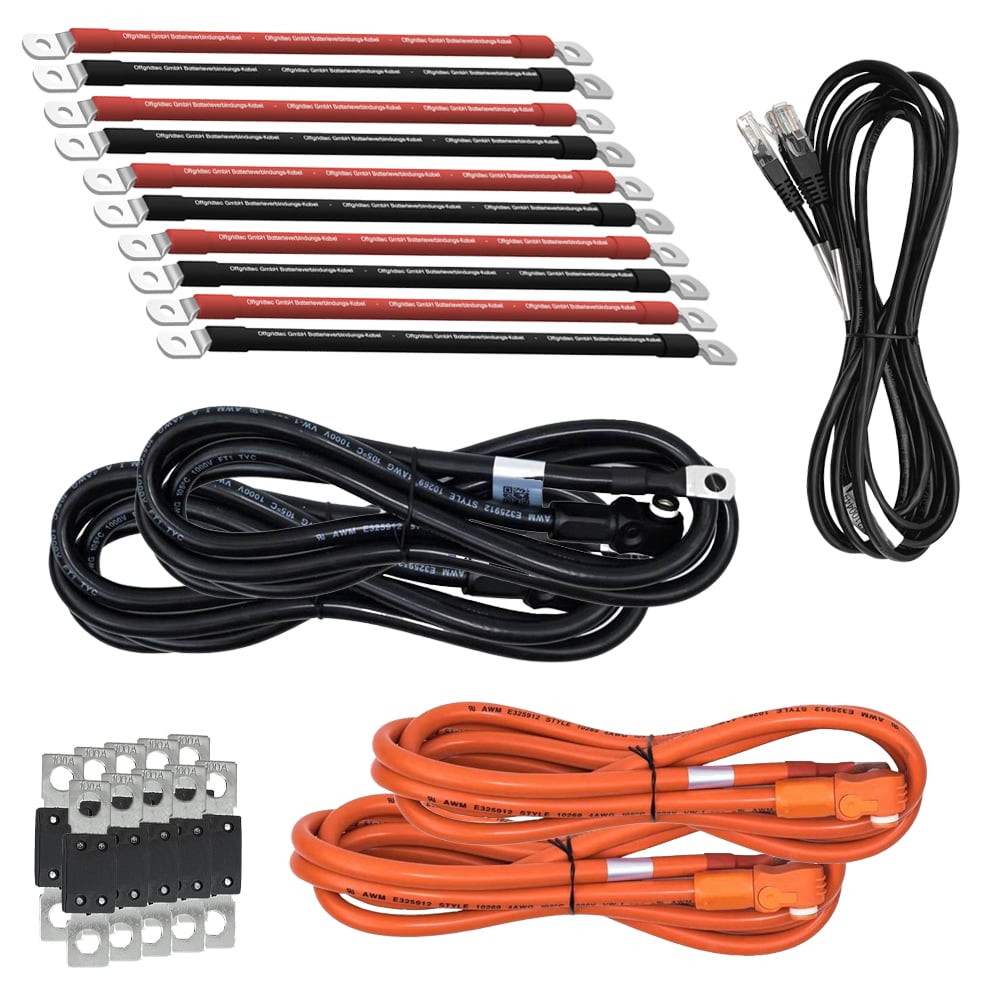

• Pytes battery inverter power cable 2m, positive (2-3x depending on selection)
• Pytes battery inverter power cable 2m, negative (2-3x depending on selection)
• 2x Offgridtec set of 5 MEGA fuses 100a 70v for 48v systems
• 3x Offgridtec® 1m Batteriekabel 50mm² beidseitig M8 Ösen

When selecting electricity meter

• 1x Victron vm-3p75ct Energy Meter
• 1xVictron 5m rj45 utp cable

Extended use of your backup system

The backup kit is supplied either with or without Victron electricity meter and cable, although an energy meter is always required to set up an energy storage system.

With this electricity meter, you can carry out a grid-parallel installation and then monitor your energy consumption and control your energy costs. Thanks to phase compensation, you can even use the 3-phase meter for 1-phase systems. This means that seamless integration of decentralized energy sources and consumers into the existing power grid is no problem.

In order for an ess to be included in a pre-configuration, the meter must be purchased in advance or for the system!

The storage solution - Pytes E-Box-481000R-C

ThePytes e-box 48100r-c is a state-of-the-art LFP battery with 100 Ah capacity and is characterized by its high level of safety, sophisticated design and impressive performance. The battery is compact, easy to install, maintenance-free and can be used as the basic building block of an energy storage system by connecting it in parallel.

Technical data

• Battery chemistry: Lithium iron phosphate (LFP)
• Nominal voltage: 51.2 V
• Voltage range: 47.5-57.6 V
• Rated power: 100 Ah
• Nominal energy: 5.12 kwh
• Max. Charging current: 50 A
• Max. Discharge: 50 A
• Charging temperature: 0~50°C
• Discharge temperature: -10~50°C
• efficiency: ≥95%
• Communication protocol: rs-232, rs-485, CAN
• Cycle life: >6000 cycles at 90% DoD
• Dimensions: 440 x 620 x 117 mm
• Weight: 51 kg

The electronic core - the Victron Multiplus-II appliance combination

The Multiplus-II is a high-end device combination from Victron Energy that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and PowerAssist functions to 100 A and extends the potential range of use to ESS applications.

• 5000 W power with non-linear load
• 4000 W continuous load and 9000 W peak power
• for 48V battery voltage
• 50A transfer switch
• 70A battery charger
• Output voltage: 230 VAC, frequency: 50 Hz
• Max. efficiency: 95
• Protection class: IP22

Configuration

The MultiPlus-II is delivered unconfigured as standard. You can find the configuration instructions for the system here in the download area. If you would like us to pre-configure the system for you, we can do this for you for an additional charge. To do this, please download the article "Offgridtec Pre-configuration" in the shopping cart during the ordering process. In this case, shipping may take 3-5 working days longer until the configuration has been completed.

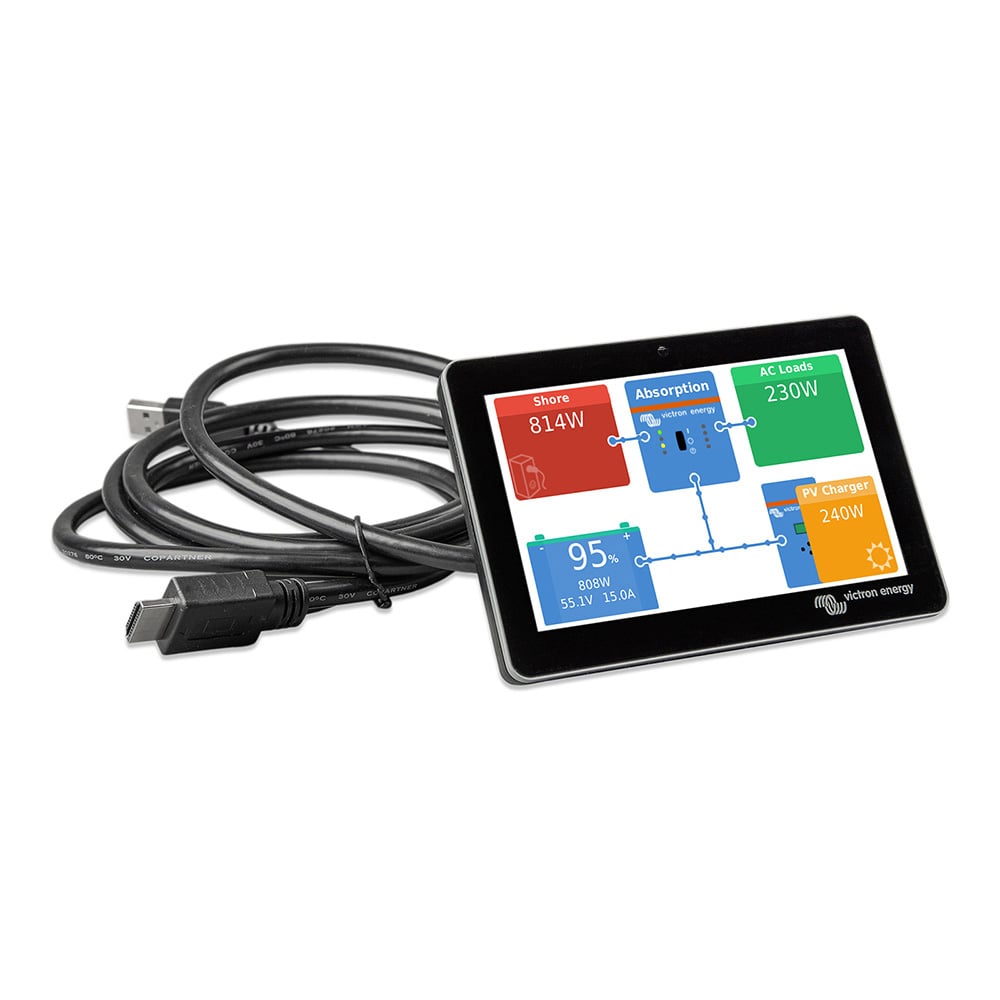

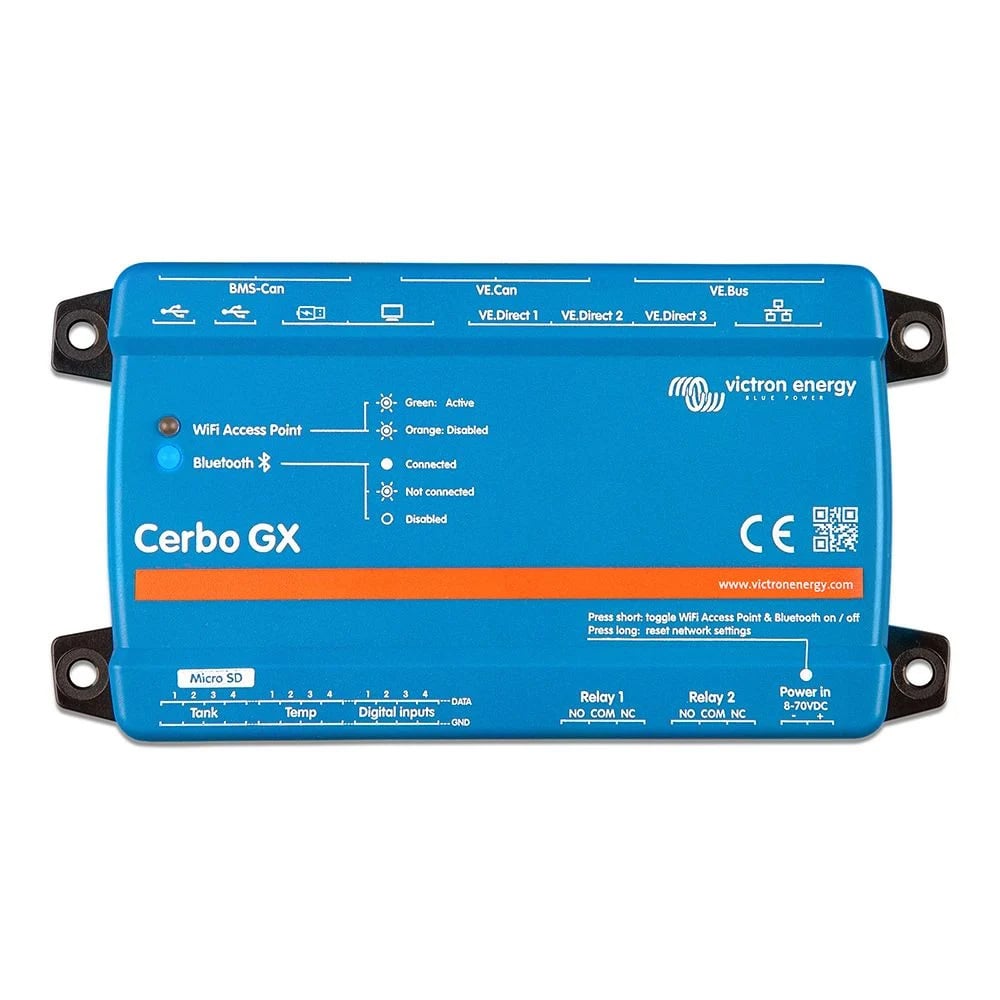

System monitoring with the Victron Cerbo GX MK2 and gx Toch display

With the Cerbo GX MK2 communication center, you can easily control and monitor your system. The flexible connection options maximize your system performance. Thanks to the Cerbo GX MK2, you can control your system from anywhere. With the gx Touch 50 display, you always have an overview of all your system parameters and can make changes quickly and easily.

Safety note: Only have this complete system installed and commissioned by a qualified electrician.
