Offgridtec® Autark Pro XXL 24V 1200W Solar System - 3000W AC Power 200Ah LiFePO4 Battery
Product is expected to be back in stock on 7 March 2025
€1,779.22*
€1,495.14**
The Offgridtec Autark Pro XXL 24V is your perfect complete system for comprehensive and sustainable energy supply. With an impressive average daily output of 4800 watt-hours between March and October, it guarantees reliable power production. The generated solar energy is stored in two powerful 100Ah LiFePO4 batteries, allowing you to access ample energy even with high consumption. The advanced charge controller with integrated display continuously informs you about the battery status, so you always stay informed. Your 230V consumers are powered via a high-quality pure sine wave inverter, enabling you to easily operate 230V household appliances with a maximum continuous power of 3000W. The system is, of course, delivered with a professional connection cable kit – just plug it in and get started immediately. It is suitable for a variety of applications, from 24V lighting to charging laptops, mobile phones, and camera batteries, to powering demanding devices in an autonomous household.
The Autark Pro XXL 24V at a Glance
- Average daily yield between March and October: approx. 4800Wh (under optimal conditions)
- MPPT charge controller with LCD display
- LiFePO4 battery with integrated BMS
- Expandable on the battery side
- Comprehensive electronic protection features, such as overload protection, over-temperature protection, under-voltage disconnection, short-circuit protection, reverse polarity, etc.
- Enables operation of 24V and 230V consumers, as well as 5V USB devices
- RS485 communication port on the inverter offers extensive configuration options via PC
- Plug & Play ready-to-use system – just plug it in and go
- Flexible mounting options due to 8m connection cable from module to controller
- Offgridtec brand quality
- Optional: Bluetooth monitoring of battery parameters with Victron SmartShunt (sold separately)
Application Areas
The complete system offers a wide range of applications. It is suitable for stationary use in mountain huts or garden sheds, where it can easily supply small coolers and refrigerators with energy as well as charge mobile phones and laptops. Additionally, it can also be ideally installed on motorhomes, for which we also offer suitable mounting brackets and adhesive kits for attachment.
Parts List – What's Included

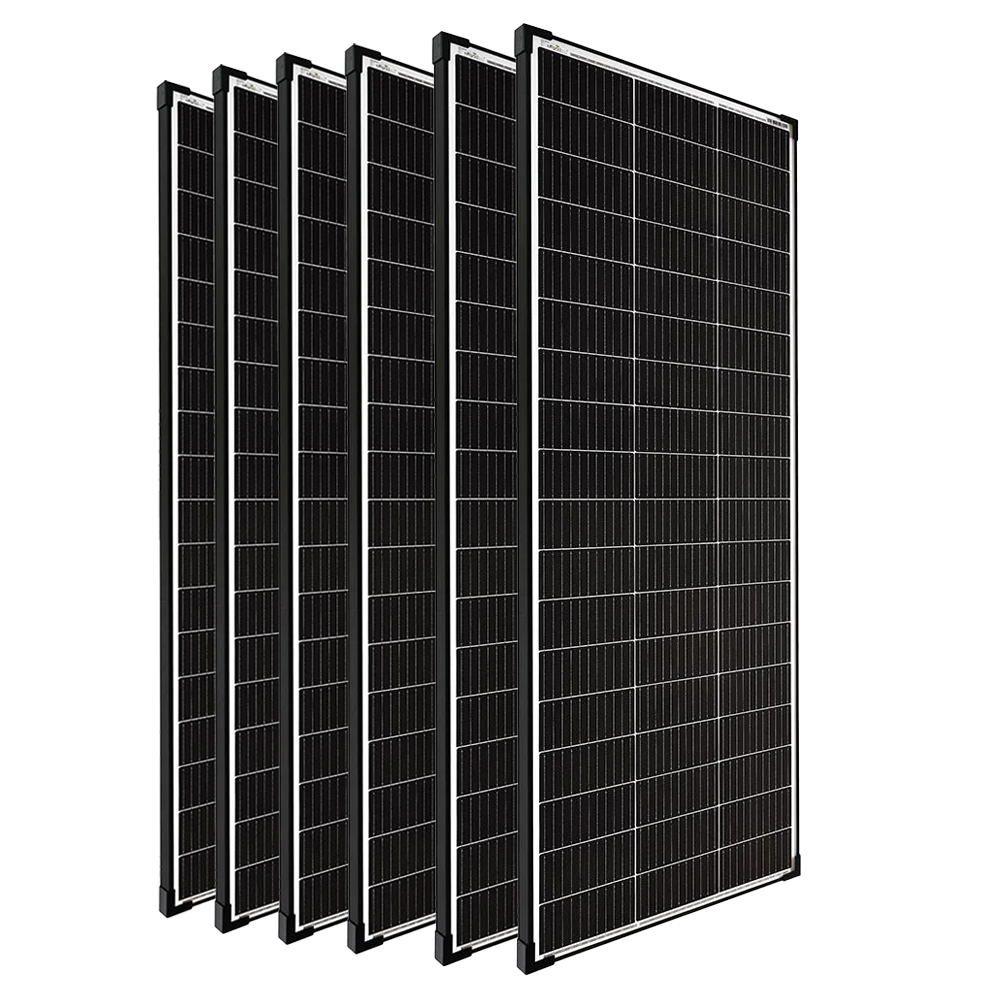

- 6x Offgridtec® MONO 200W V2 Solar Panel 30V Black Frame - 1720 x 590 x 35 mm - 22.3% cell efficiency - 11 busbars

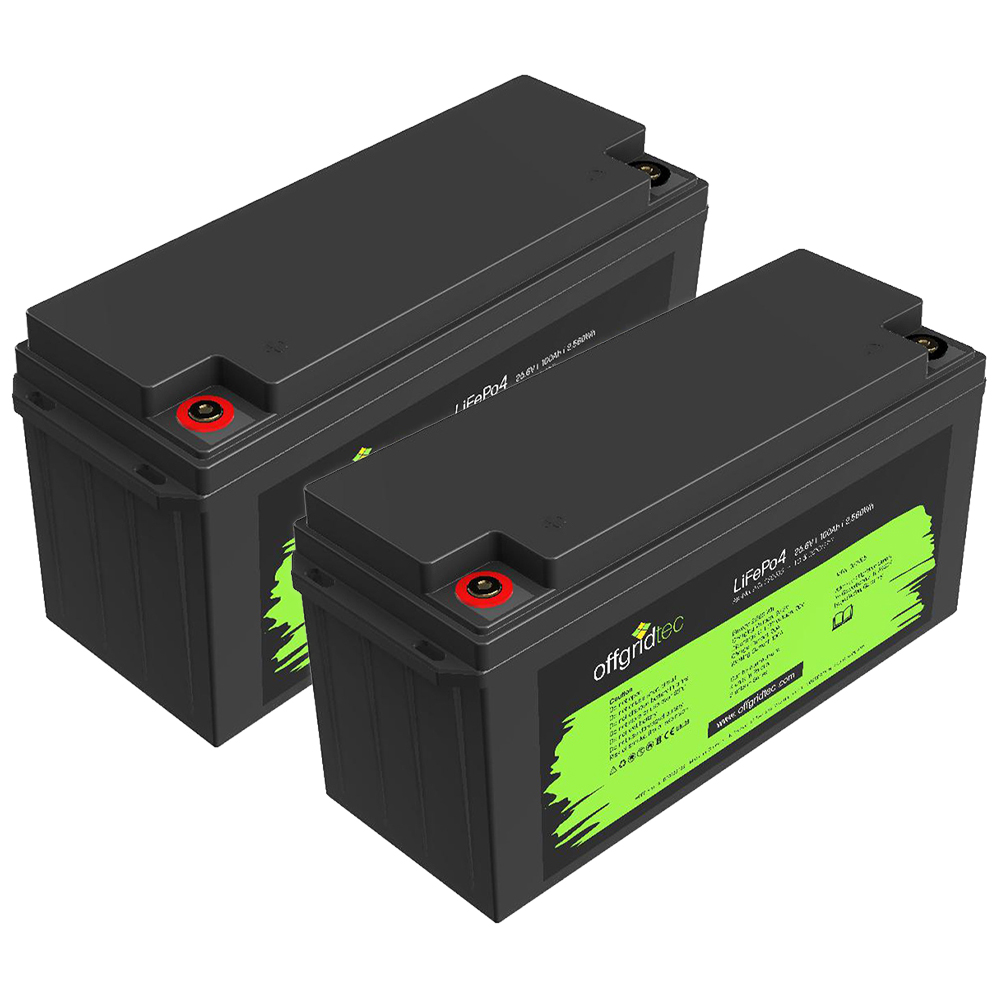

- 2x Offgridtec 24/100 LiFePo4 100Ah 2560Wh Lithium Battery 25.6V with integrated BMS
- 1x Offgridtec MPPT PRO-X 40A Charge Controller - with integrated LCD display - 40A load output - full load operation without capacity reduction
- 1x Offgridtec® PSI-Pro Pure Sine Wave Inverter RS485 - including connection cable - outputs a perfect sine wave - advanced SPWM technology - continuously outputs 3000W and for 5 seconds a peak output of 6000W - comprehensive protection features

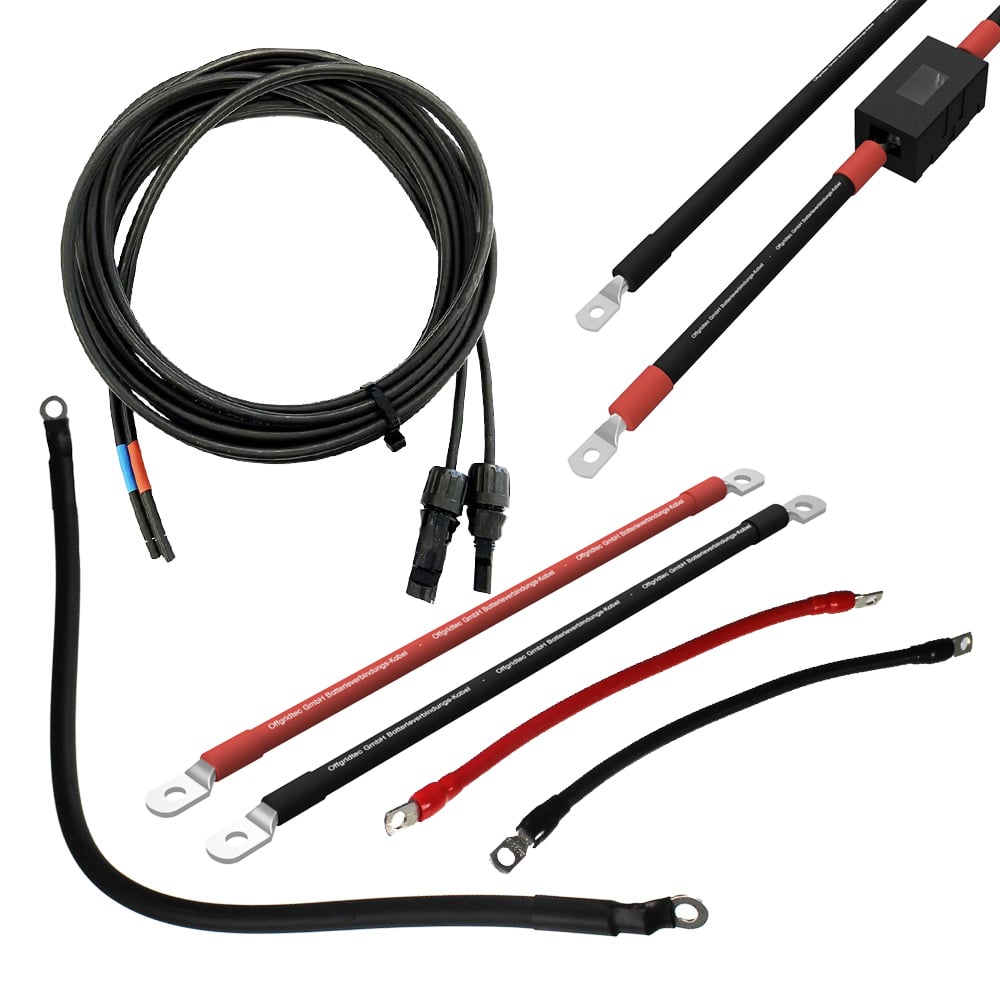

- 1x 8m 6mm² professional connection cable from solar module to solar charge controller with solar connection plug
- 1x Battery Cable 1m 35mm² with M8 lugs on both ends
- 1x Battery Connection Cable 50mm² 40cm M8 ozone, UV, and temperature resistant
- 1x Battery Connection Cable 25mm² 30cm with ring terminals
- 1x 1.5m 16mm² Battery Cable with MIDI fuse holder screw terminal connection to M8 to connect charge controller and battery

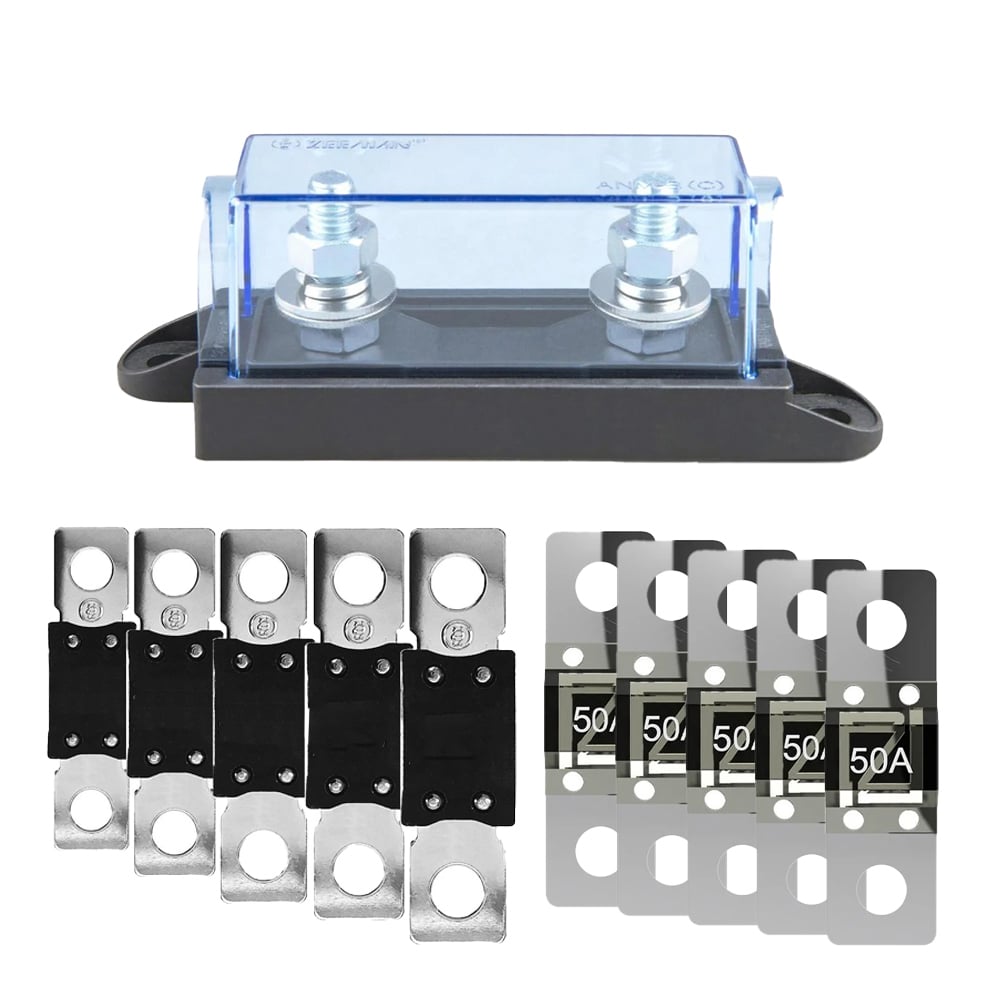

- 5x 50 A 58V MIDI Fuse
- 5x 200A 32V MEGA-Fuse to install between inverter and battery positive terminal for short circuit protection
- 1x Offgridtec MEGA-Fuse Holder

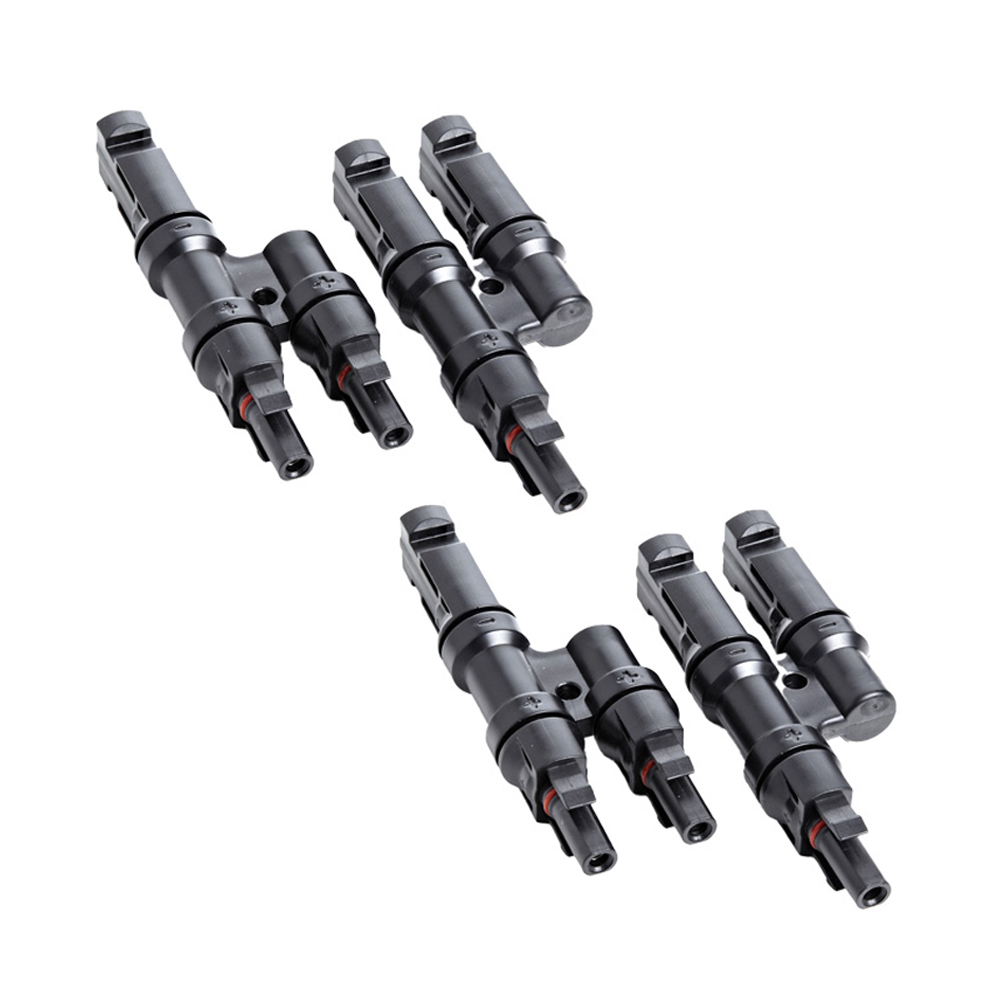

- 2x Offgridtec Y-Splitter (Pair) for parallel connection of the modules
Roof Mounting for the Solar Module
Since there are various requirements for mounting a module, which can vary significantly depending on the type of roof, the systems of the Autark series are not equipped with a mounting system by default. This can, of course, be purchased additionally – here are suitable suggestions:
- Mounting kit with clamp hooks for slanted roof installation
- Solar module holder for flat roof mounting - adjustable tilt 10°-60°
- Mounting kit with lag screws for slanted roof installation
- Mounting kit with adjustable clamps (for roof tiles)
Scope of delivery:
1x Offgridtec® Autark Pro XXL 24V 1200W Solar Power System - 3000W AC power 200Ah LiFePO4 battery
