Offgridtec® Autark Pro XL 600W Solar System - 3000W AC power 2x 200Ah LiFePO4 battery

The Offgridtec Autark Pro XL from the Autark series represents an outstanding solution for mobile and efficient energy supply. Equipped with powerful 150W monocrystalline solar modules, it stores energy via a 200Ah LiFePO4 battery, allowing for optimal utilization. The user-friendly MPPT solar charge controller with integrated display provides an up-to-date overview of the energy status at all times. With the included sine waveform inverter, 230V electrical devices can be operated seamlessly, with a maximum output of 3000W. This makes the system ideal for various applications, from 12V lighting to supplying everyday household appliances. Additionally, the package includes a professional connection cable kit, ensuring a quick and uncomplicated installation. This system is perfect for enabling independent energy supply.

The Autark Pro XL at a Glance

• Average daily yield between March and October: approx. 2400Wh (under optimal conditions)
• MPPT charge controller with LCD display
• LiFePO4 battery with integrated BMS
• Batteries can be expanded
• Extensive electronic protection functions, such as overload protection, over-temperature protection, reverse polarity, etc.
• Enables the operation of 12V and 230V consumers, as well as 5V USB loads
• RS485 communication port on the inverter provides extensive configuration options via PC
• Plug & Play ready-to-use system – just connect and get started
• Flexible installation possibilities thanks to 8m connection cable from module to controller
• Offgridtec brand quality
• Optional: Bluetooth monitoring of battery parameters with Victron SmartShunt (sold separately)

Application Areas

The Autark Pro XL system is extremely versatile. Whether installed permanently in a remote mountain lodge or in a cozy garden shed, this system makes the reliable operation of small coolers and refrigerators as well as the convenient charging of phones and laptops a breeze. Moreover, it is ideal for mobile use in campers – we also offer suitable mounts and adhesive kits for secure installation.

Parts List – What's Included

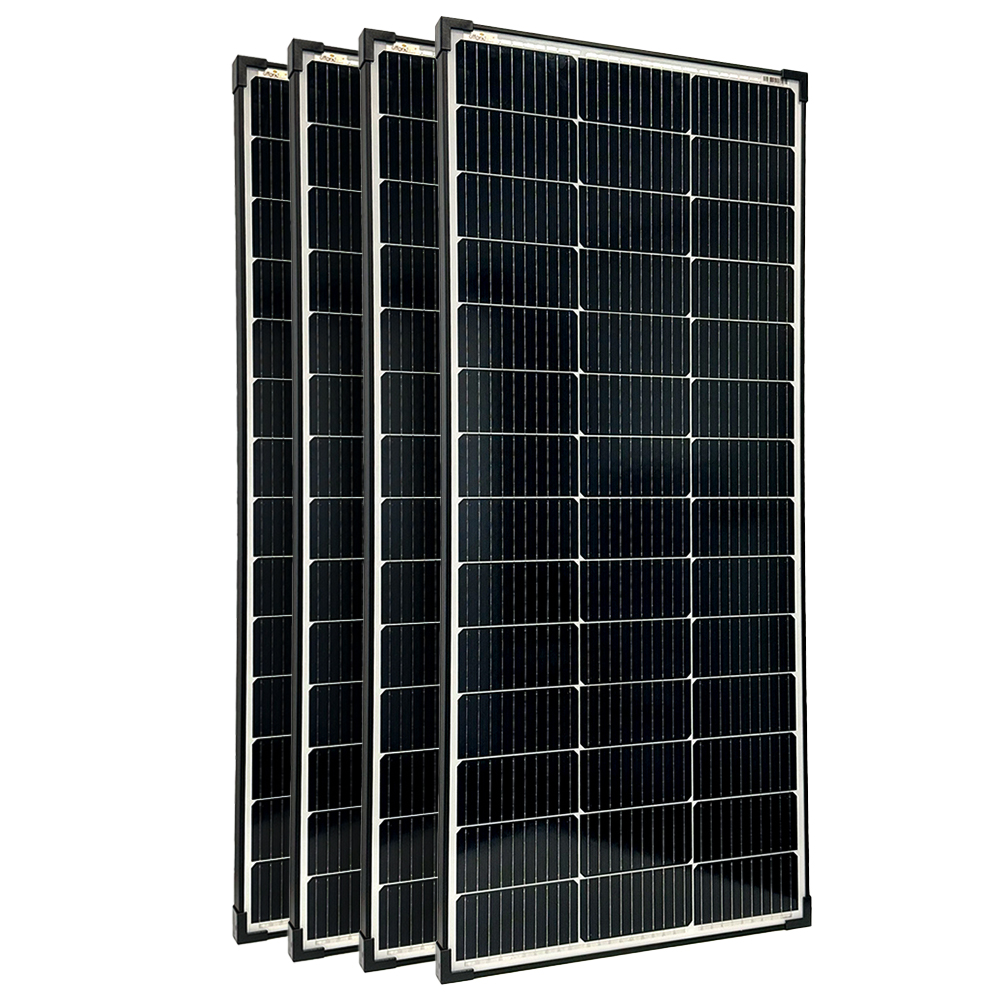

• 4x Offgridtec® MONO-150 V2 Solar Panel 23V Black Frame – 1350 x 590 x 35 mm - 22.3% cell efficiency - 11 busbars
• 2x Offgridtec 12/200 LiFePo4 Pro 200Ah 2560Wh Lithium Battery 12.8V > 4000 cycles at 100% DoD – integrated BMS with numerous protection functions – wide temperature range
• 1x Offgridtec MPPT PRO-X 40A Charge Controller – with integrated LCD display – 40A load output – full load operation without capacity reduction

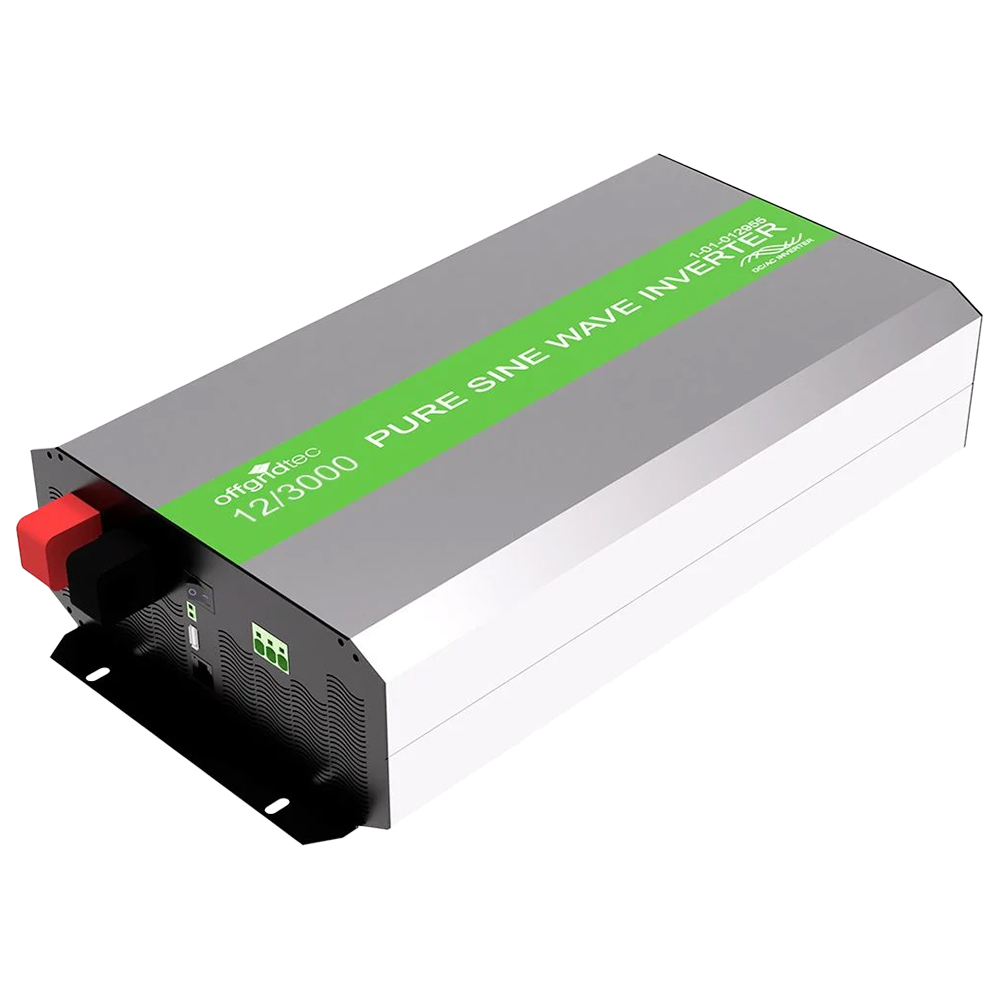

• 1x Offgridtec® PSI-Pro Sine Wave Inverter RS485 – including connection cable – produces a perfect sine wave – advanced SPWM technology – continuously outputs 3000W and peaks at 6000W for 5 seconds – comprehensive protection functions

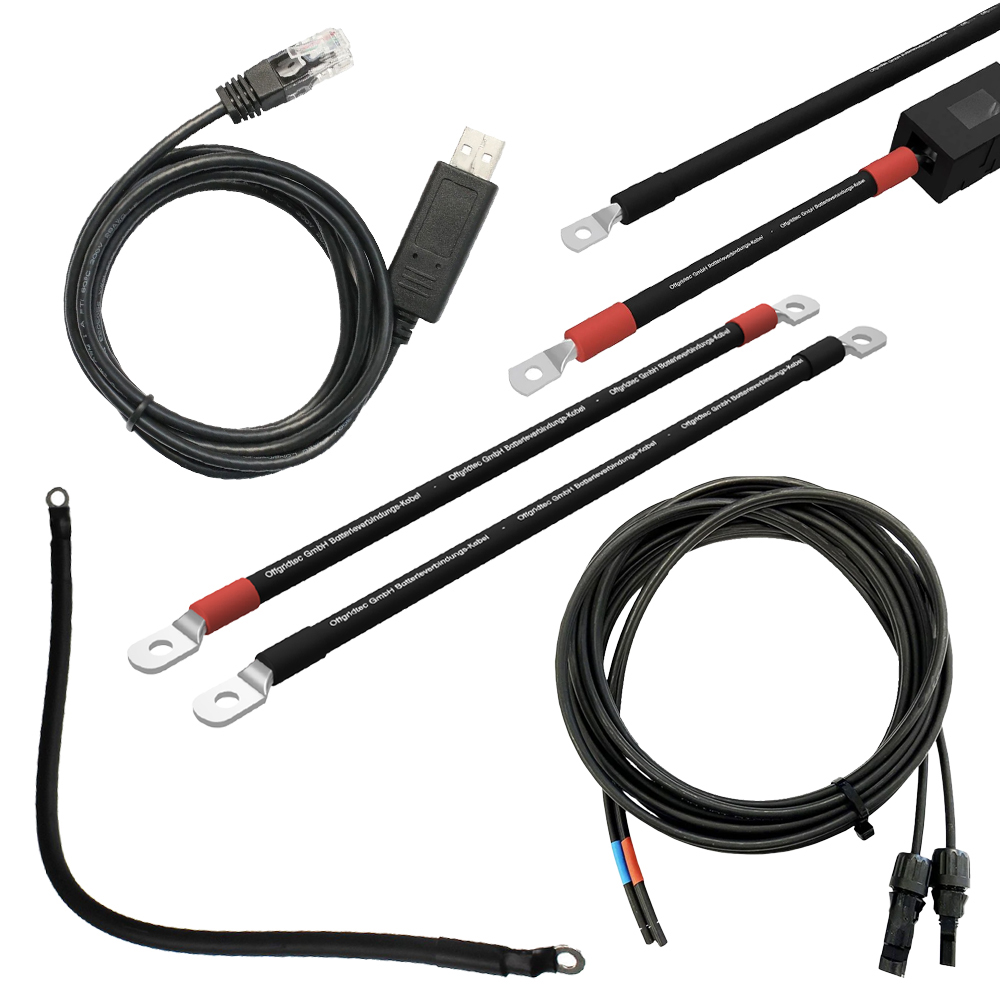

• 1x 8m 6mm² Professional Connection Cable Solar Module to Solar Charge Controller with solar connection plug
• 1x 1m Battery Cable 50mm² – both ends M10 lugs
• 1x Battery Connection Cable 50mm² 40cm M8 ozone, UV, and temperature resistant
• 1x 1.5m 10mm² Battery Cable with MIDI fuse holder screw connection to M8 for connecting charge controller and battery

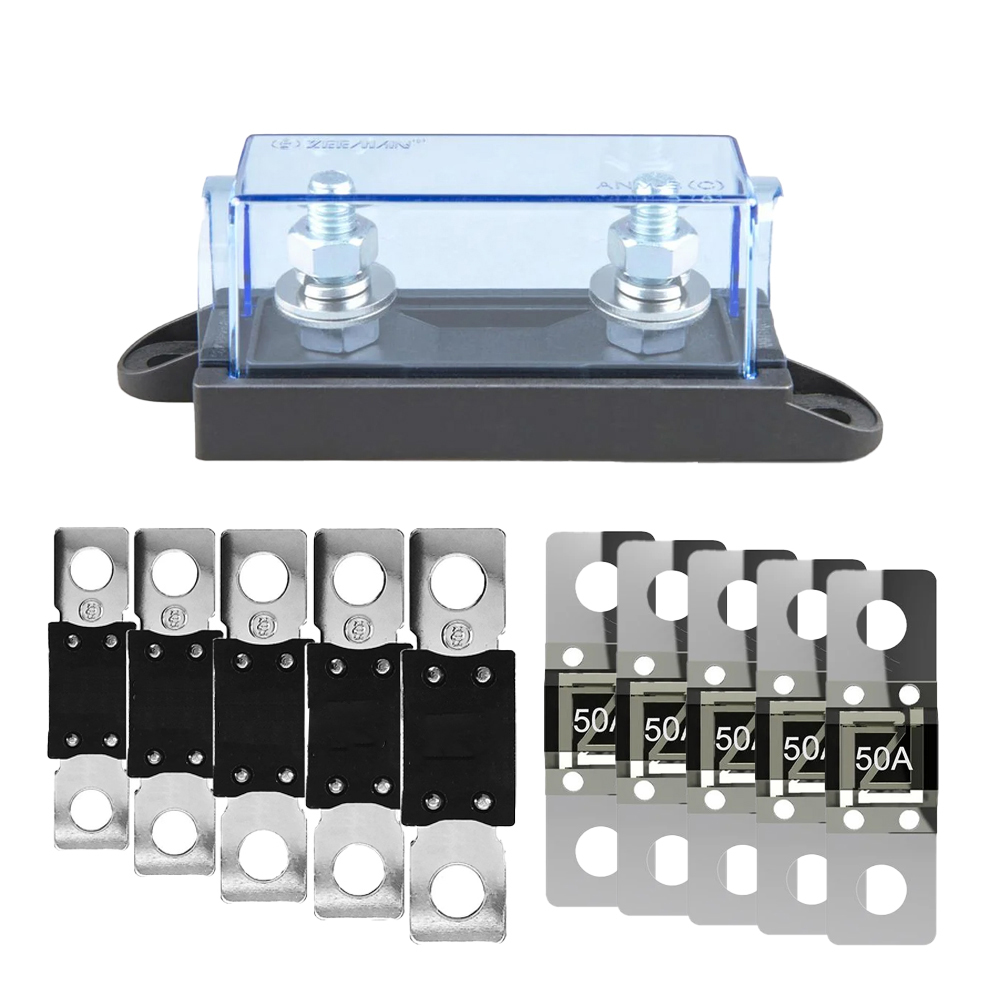

• 5x 300A 32V MEGA-Fuse Fuse
• 1x 50A 58V MIDI Fuse
• 1x Offgridtec MEGA-Fuse Fuse Holder
• 1x Offgridtec RS485 to USB Interface for PSI-PRO Series connects the inverter to a computer or laptop

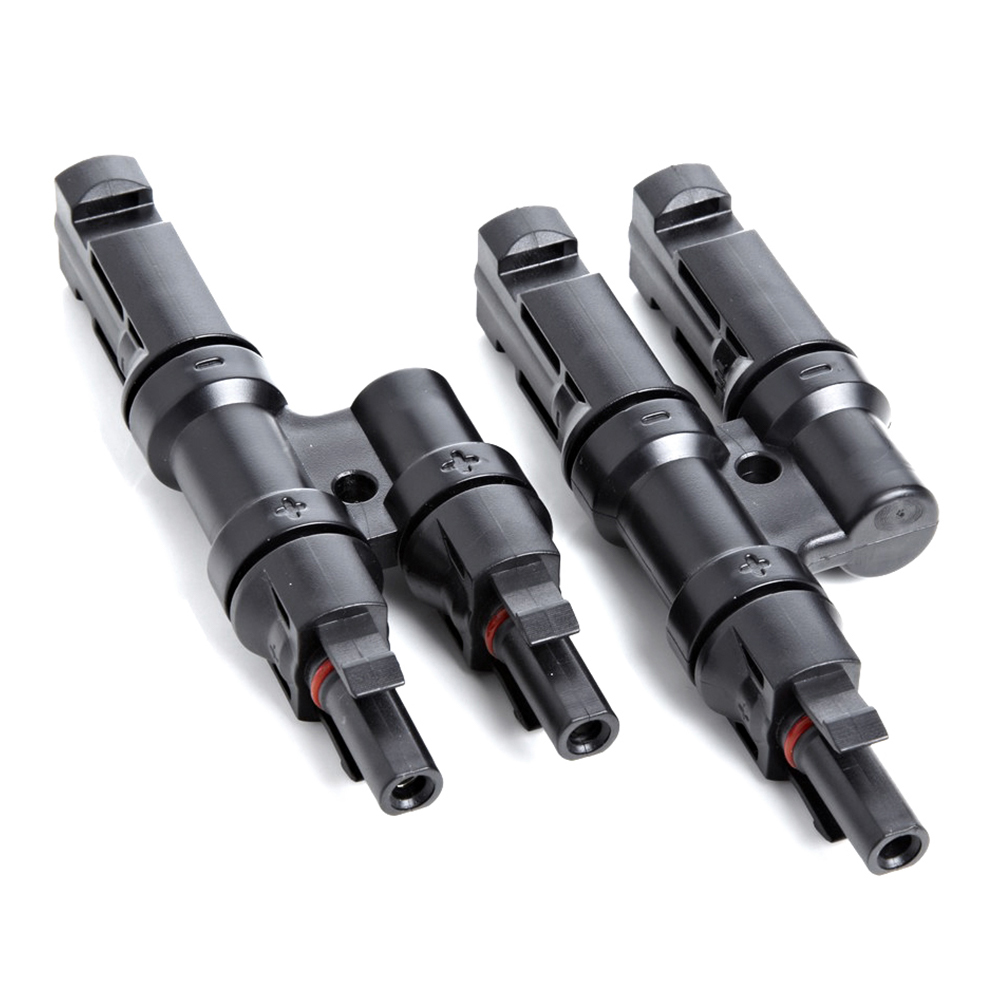

• 1x Offgridtec Branch Connectors Y-Connector (Pair) for parallel connection of the modules

Roof Mounting for the Solar Module

Since there are various requirements for mounting a module that can vary greatly depending on the type of roof, the systems of the Autark series do not come with a mounting bracket as standard. This can, of course, be purchased separately – here are some suitable suggestions:

• Mounting Kit with Beaver Tail Roof Hooks for Sloped Roof Installation
• Solar Module Holder for Flat Roof Installation - Adjustable Incline 10°-60°
• Mounting Kit with Lag Bolts for Sloped Roof Installation
• Mounting Kit with 3-Stage Adjustable Roof Hooks (for Roof Tiles)

Delivery Contents:

1x Offgridtec® Autark Pro XL 600W Solar System - 3000W AC power 2x 200Ah LiFePO4 Battery
