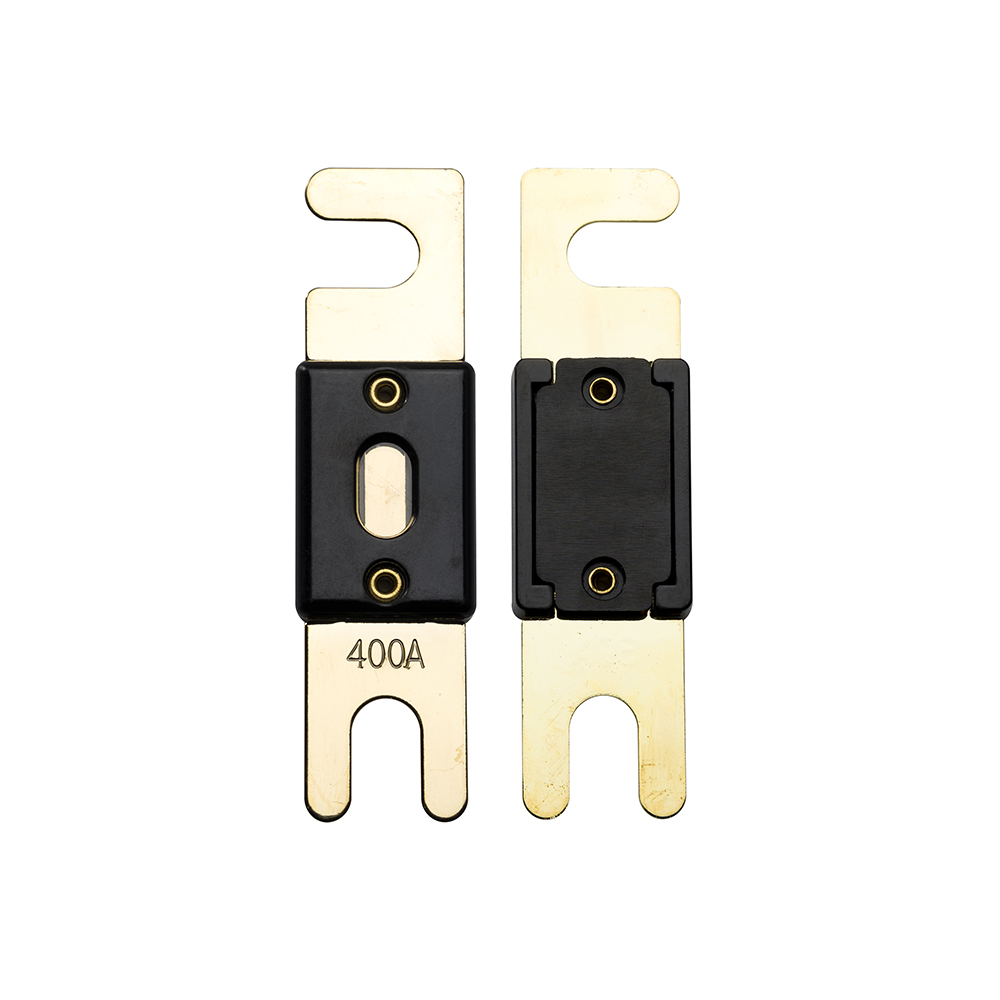

Offgridtec 400a 72v anl fuse din43560/1 set of 5
Shipped in 1-3 days
€6.94*
€5.83**
Addon Products
Shipped in 1-3 days
Shipped in 1-3 days
The high-quality ANL high-current strip fuses from Offgridtec (MPN: 018595) are especially suitable for use in 72V DC networks such as forklift trucks or various types of boats. The ANL fuses offer a high level of safety and functionality. Thanks to the high-tech plastic body, for example, flying sparks are prevented when the fuse is triggered. The fuses comply with the DIN43560/1 standard. In addition, there is also a matching ANL fuse holder from Offgridtec, which you can use to integrate your fuses quickly and professionally into your board network. Regular maintenance in the form of a visual and contact check is advantageous.
Highlights of the ANL fuses
- Very low contact resistance for high system efficiency
- Embedded in plastic housing to protect against sparking
- For a maximum board voltage of 72VDC
- High-current screw-type fuse of the latest generation for the automotive sector
- Operating temperature range: -40°C - +120°C
- Housing material: Bakelite + copper
- Element material: Copper
- Tightening torque: 40Nm
- Certification: RoHS, UL
Selectable amperage:
- 30A
- 40A
- 50A
- 60A
- 70A
- 80A
- 100A
- 125A
- 150A
- 175A
- 200A
- 250A
- 300A
- 350A
- 400a
- 500A
Scope of delivery:
5x anl fuse (current selectable)
