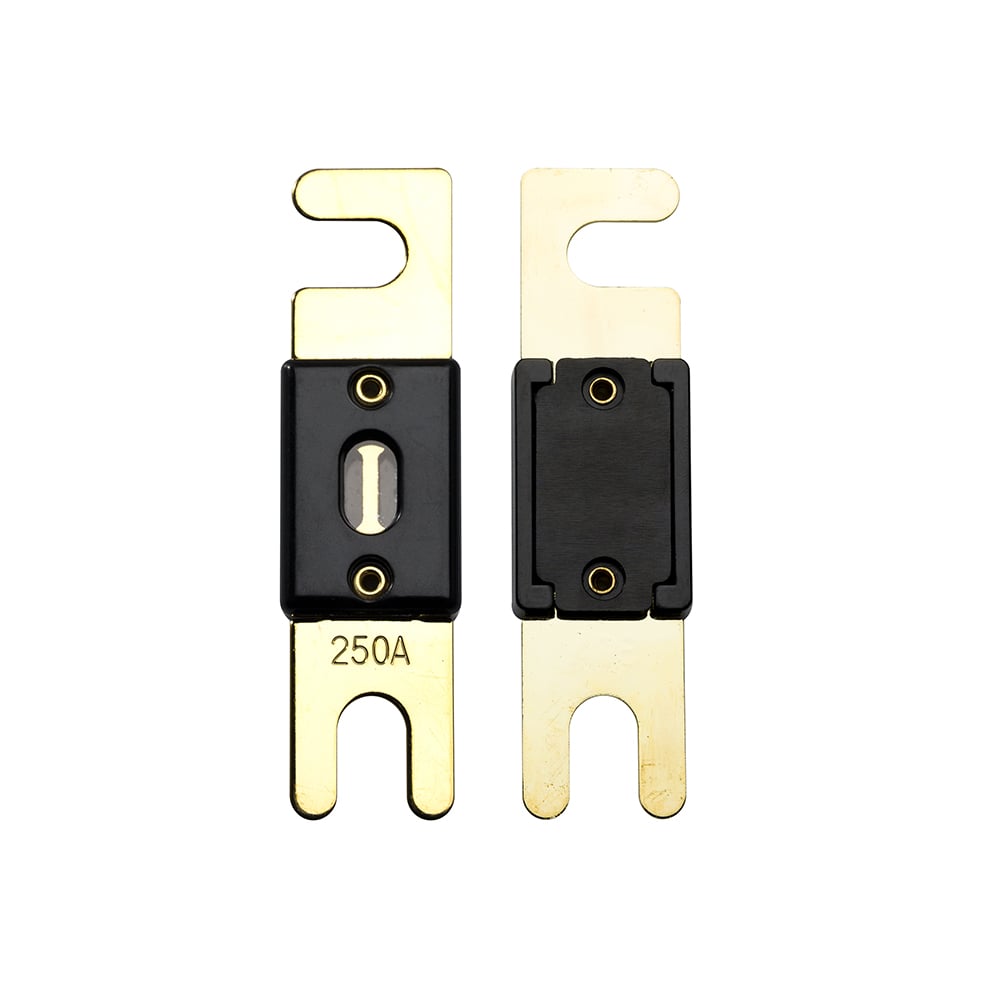

The high-quality ANL high-current strip fuses from Offgridtec (MPN: 018595) are especially suitable for use in 72V DC networks such as forklift trucks or various types of boats. The ANL fuses offer a high level of safety and functionality. Thanks to the high-tech plastic body, for example, flying sparks are prevented when the fuse is triggered. The fuses comply with the DIN43560/1 standard. In addition, there is also a matching ANL fuse holder from Offgridtec, which you can use to integrate your fuses quickly and professionally into your board network. Regular maintenance in the form of a visual and contact check is advantageous.

Highlights of the ANL fuses

  • Very low contact resistance for high system efficiency
  • Embedded in plastic housing to protect against sparking
  • For a maximum board voltage of 72VDC
  • High-current screw-type fuse of the latest generation for the automotive sector
  • Operating temperature range: -40°C - +120°C
  • Housing material: Bakelite + copper
  • Element material: Copper
  • Tightening torque: 40Nm
  • Certification: RoHS, UL

Selectable amperage:

  • 30A
  • 40A
  • 50A
  • 60A
  • 70A
  • 80A
  • 100A
  • 125A
  • 150A
  • 175A
  • 200A
  • 250A
  • 300A
  • 350A
  • 400a
  • 500A

Scope of delivery:

5x anl fuse (current selectable)

Offgridtec_ANL-Sicherung_30A-500A_Datasheet.pdf Download
Offgridtec_ANL-Sicherung_30A-500A_Datenblatt.pdf Download
Manufacturer: Offgridtec
ean: 4262440562548
