mc4 connector coupling connector 10mm² PV-KST4/10II and pv-kbt4/10ii

Product number: 8-01-007425

Shipped in 1-3 days

€5.99*

Prices incl. 19% VAT plus shipping costs

€5.03**

Incl. 0% VAT plus shipping costs for orders according to §12 Abs. 3 UStG

Product number: 8-01-007425

VAT-exempt delivery possible*

VAT-exempt order for Germany according to § 12 para. 3 UstG and Austria (§ 28 Abs. 62 UStG 1994)

§ Section 12 (3) UstG only applies if you are a private individual and the product is installed in Germany. To benefit from the 0 percent rate, please confirm at the checkout that you are eligible for the zero tax rate according to § 12 para. 3 UstG. Subsequently, the tax rate will automatically be set to zero for eligible items.

Similar Products

VAT-exempt delivery possible*

Offgridtec Branch Plug Y-Connector Pair

€4.62* €3.88**

These branch plugs are used to connect solar modules parallely to maintain a constant voltage. Ideal for 12V-systems or the connection of thin-film mo...

Shipped in 1-3 days

VAT-exempt delivery possible*

MC4 Connector Pair - plug and socket 4-6mm²

€3.99* €3.35**

This set includes a male and a female MC4-plug. These plugs are original Stäubli MC4-plugs. Details: touchproof, unplugged IP2X protection, plugg...

Shipped in 1-3 days

VAT-exempt delivery possible*

3 way solar connector junction sockets compatible with solar connector systems.

€8.37* €7.03**

The Offgridtec 3-way solar connectors (8-01-010335) are used to connect 3 modules in parallel. They are identical in construction to the 2-way junctio...

Shipped in 1-3 days

Addon Products

VAT-exempt delivery possible*

MC4 Wrench (assembly tool for MC4-connectors)

€4.96* €4.17**

With this wrench strain reliefs and cable connections on MC4-plugs can be screwed shut and unscrewed with the appropriate torque. Features: set consi...

Shipped in 1-3 days

VAT-exempt delivery possible*

Lappkabel h1z2z2-k 1x10mm² wh/bk solar cable by the meter

€2.69* €2.26**

Lapp SOLAR H1Z2Z2-K cables are weather, abrasion and UV-resistant photovoltaic cables. These halogen-free, double-insulated and cross-linked solar cab...

Shipped in 1-3 days

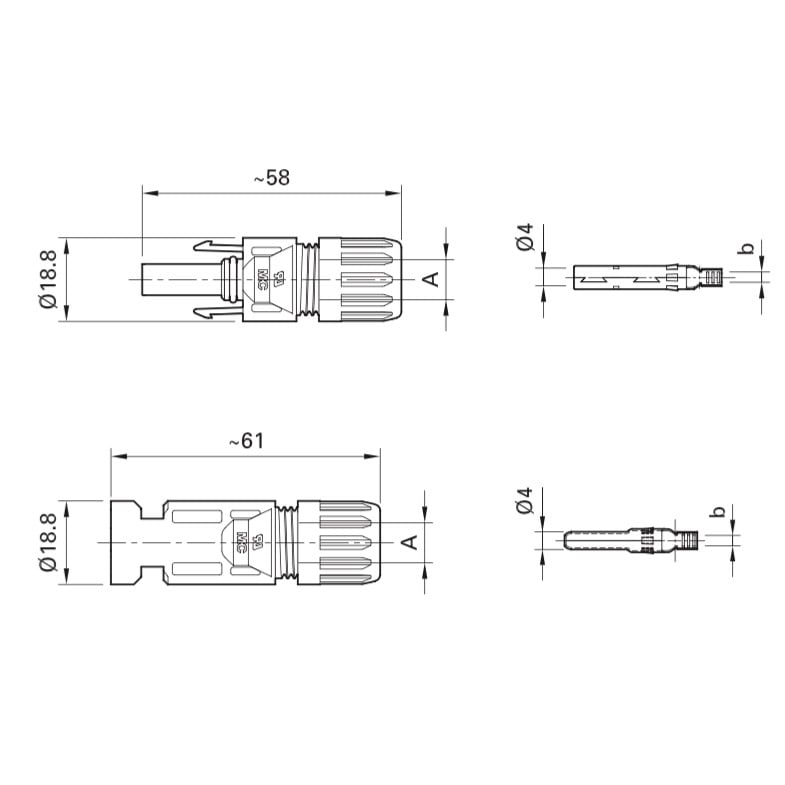

mc4 plug and socket pair for solar cables with 10mm² wire cross-section and an outer diameter of 5.5-9.0mm.

Especially in the area of 12v Solaraapplications there are often large line losses due to too small cable cross sections. Therefore we offer the proven mc4 connector system also for 10mm² cables.

important technical features

for solar cables with outer diameter 5.5 - 9.0mm
Touch protection, unplugged IP2X
Protection class, mated IP67
Temperature application range -40° ...90° C
max current: 42A
Cable strain relief according to iec 61984 (06.2001)
Contact system with MC contact blades
Contact material copper, tin-plated
System voltage up to 1000V

other versions

mc4 connector for 4-6mm solar cables

Scope of delivery:

1x pair of Stäubli mc4 connectors for 10mm cable, PV-KST4/10II + PV-KBT4/10II

Staeubli_MC4-Stecker-10mm_Datenblatt.pdf Download

Staeubli_MC4-Kupplungsstecker_Montageanleitung.pdf Download

Manufacturer: Stäubli

Product Type: Solar plug

Manufactuerer Information

Stäubli

Stäubli Electrical Connectors GmbH
Hegenheimer Straße 19
79576 Weil am Rhein
Germany

Mail: corporate.communications@staubli.com

Tel.: +49 7621 6670
