KEMO Multiphase Motor Interface 4 Pin
Product number:
2-12-005610
2-12-005610
BLACKWEEKS24
Multiphase motor interface 4 pin to operate a 4-strand multiphase motor 3 - 17V, 2A. For powersupply a double-power adaptor (Split-Power-Supply) is needed.
For a connection to a Standard-AT-PC starting from type '486 use the printer socket LPT1. The motor can be operated manually or with a predefined program with automatic processes. Optionally a interface-switch (M108) can be used which allows the operation of 4 single multiphase-motor interfaces at the same time. Software for DOS + Windows (98, NT, 2000, XP) is included or available as download on the manufacturer's website.
For a connection to a Standard-AT-PC starting from type '486 use the printer socket LPT1. The motor can be operated manually or with a predefined program with automatic processes. Optionally a interface-switch (M108) can be used which allows the operation of 4 single multiphase-motor interfaces at the same time. Software for DOS + Windows (98, NT, 2000, XP) is included or available as download on the manufacturer's website.

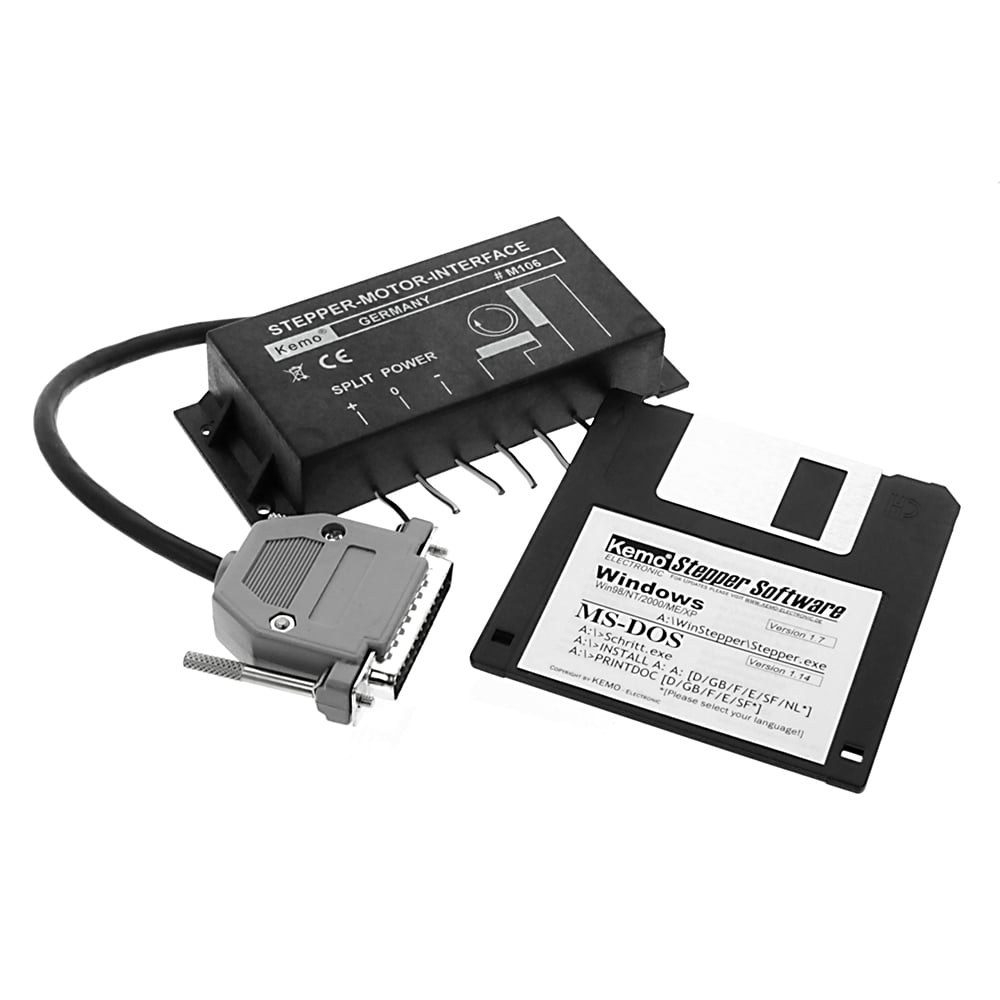

Delivery scope:
1x multiphase-motor interface module (4-strands)
1x software disk (version: Windows 1.7 / DOS 1.14)
1x general instructions #M1002
Bedienungsanleitung_M106.pdf
Download
Manufacturer:
Kemo Electonic
