KEMO Battery Guard 12V DC
Shipped in 1-3 days
€18.00*
€15.13**
The interrupting voltage is adjustable: approx. 10.4 - 13.3 V.
Important installation instructions, please note!

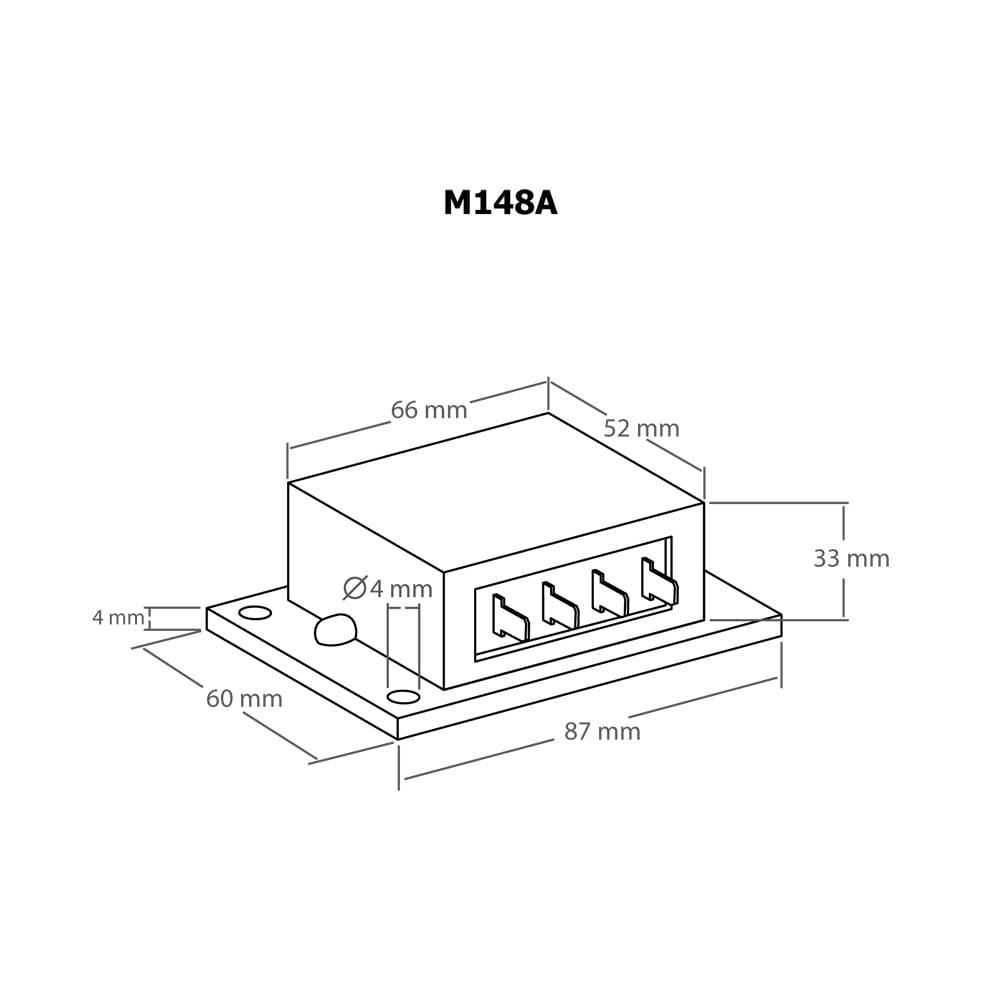

Depending on the load the module heats up. The heat is dissipated from the aluminum plate at the bottom of the module. Under certain circumstances it must be mounted on a cooling surface according to installation instructions. It is important that the module is fixed with 4 M3 screws (or 2.9mm metal screws) on the cooling surface. This may be the back wall of a metal casing. The aluminum plate on the bottom of the module must not bend, do not use larger screws and do not drill larger holes. The screw heads must rest on the plate of the module, rather than on the plastic edge of the module! During assembly, the module should not be curled up (if the ground is not flat). The reason: on the inside of the aluminum base of the module the thin insulating layer are directly soldered on the electronic SMD components. When the aluminum floor of the module curls up, the joints and the module start loosen and the module is defective. Please ensure that the maximum specified temperature (as specified in the module's description) is not exceeded. Otherwise apply a larger cooling plate.
Manufactuerer Information
Kemo Electronic
Kemo-Electronic GmbH
Leher Landstr. 20
27607 Geestland
Germany
Mail: info@kemo-electronic.de
Tel.: +49 4743 93380
