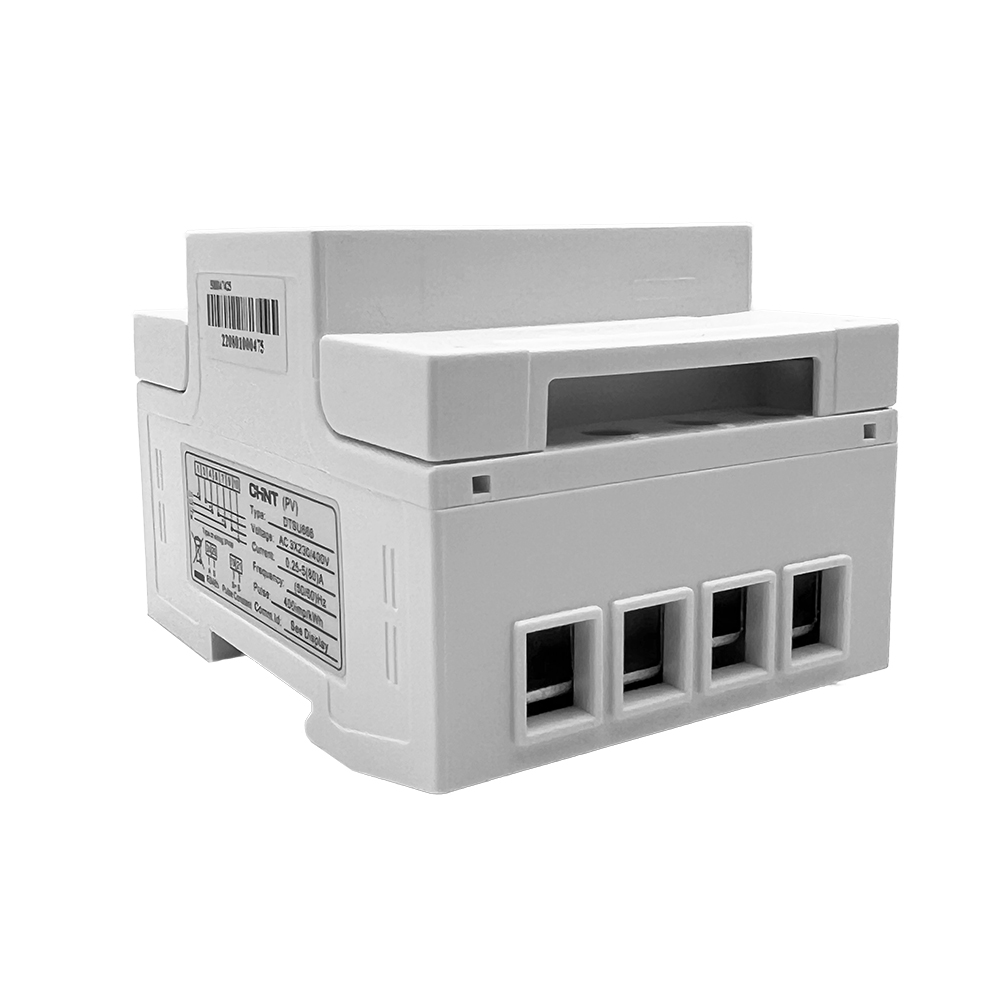

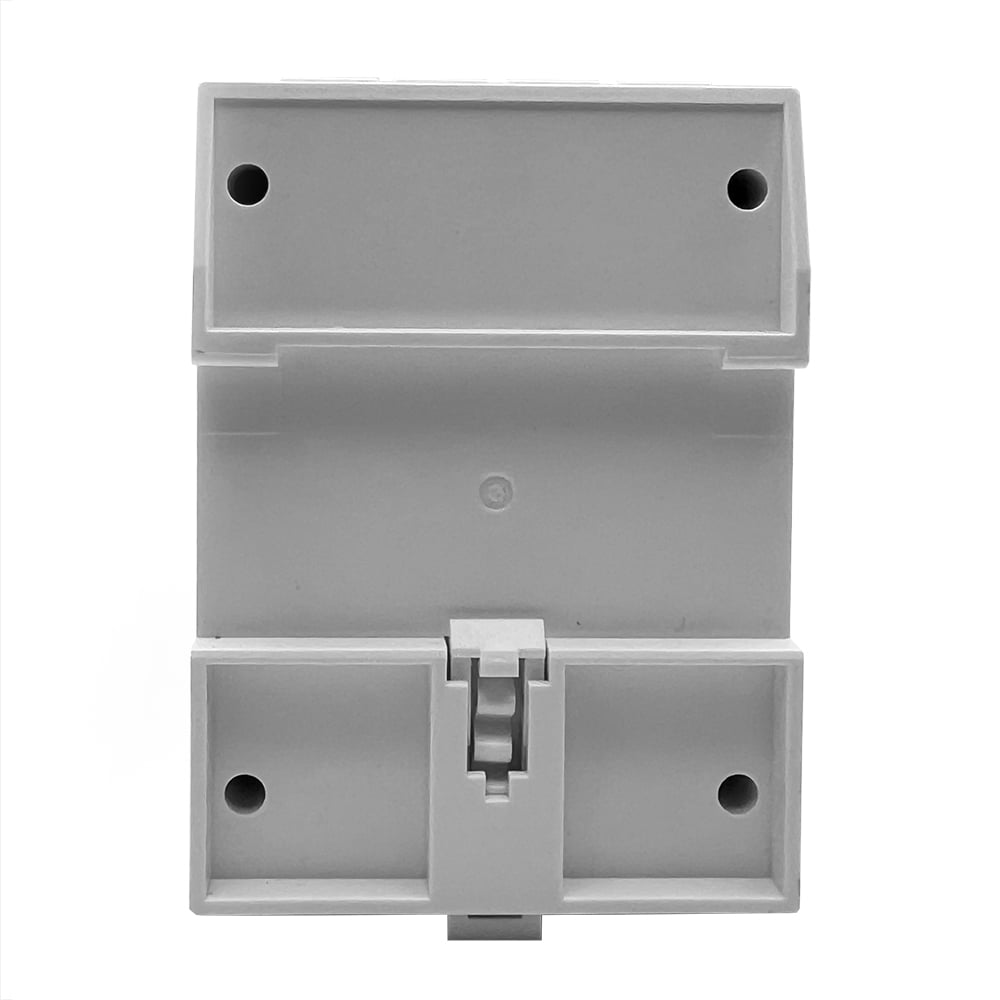

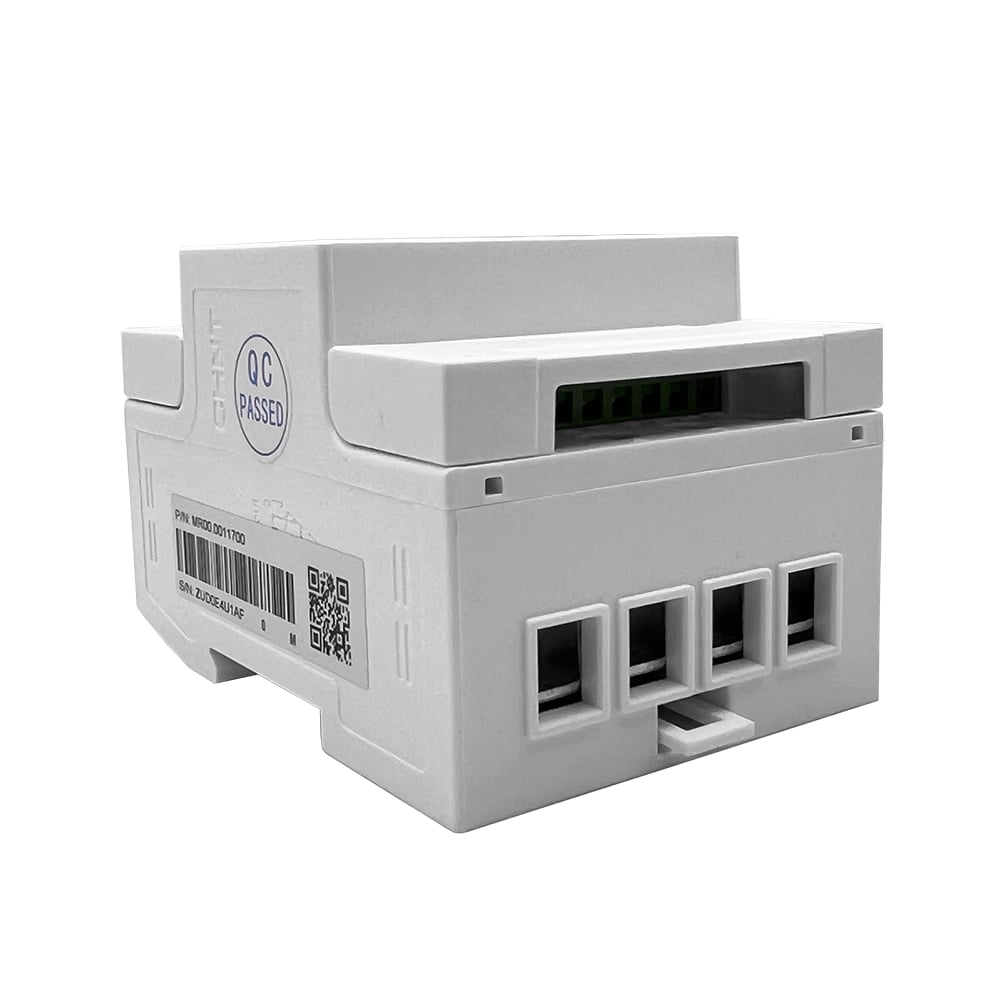

The TPM-C electricity meter (DTSU666) from Growatt is a 3-phase complete solution for grid export limitation and self-consumption monitoring, whose data can be read on an LCD display. It is characterised by high measurement accuracy and simple installation through plug and play. With RS485 communication and direct connections, the electricity meter is compatible with many Growatt inverters.
- Quick plug-and-play installation
- Precise measurement of current consumption
- For three-phase systems
- Supports zero export function with Growatt inverters
Technical Data:
- Rated voltage: 3x 230/400AC
- Input current: 0.25-5(80)A
- Frequency: 50/60 Hz
- Pulse: 400imp/kWh
- Voltage line power consumption: ≤ 1.5W/6VA
- Specific operating voltage range: 0.9Un ~ 1.1Un
- Extended operating voltage range: 0.8Un ~ 1.15Un
- Nominal temperature: -10°C + +45°C
- Temperature limit: -25°C ~ +70°C
- Protection class: IP51
- Mounting: DIN rail 35mm
- Communication: RS485
- Dimensions: 72 x 100 x 65 mm
- Weight: 2.7 kg
Scope of delivery:
1x Growatt TPM-C 3-phase electricity meter (DTSU666)
1x RS485 cable (5m)
