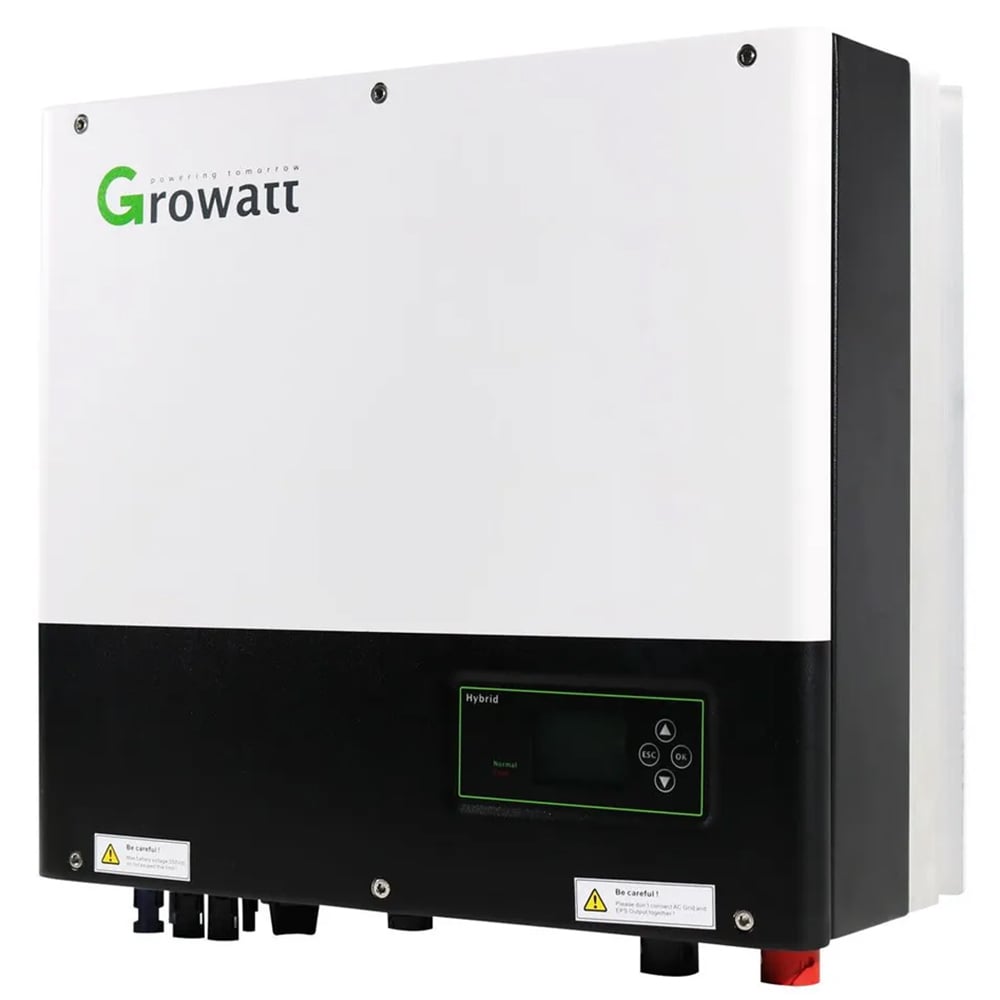

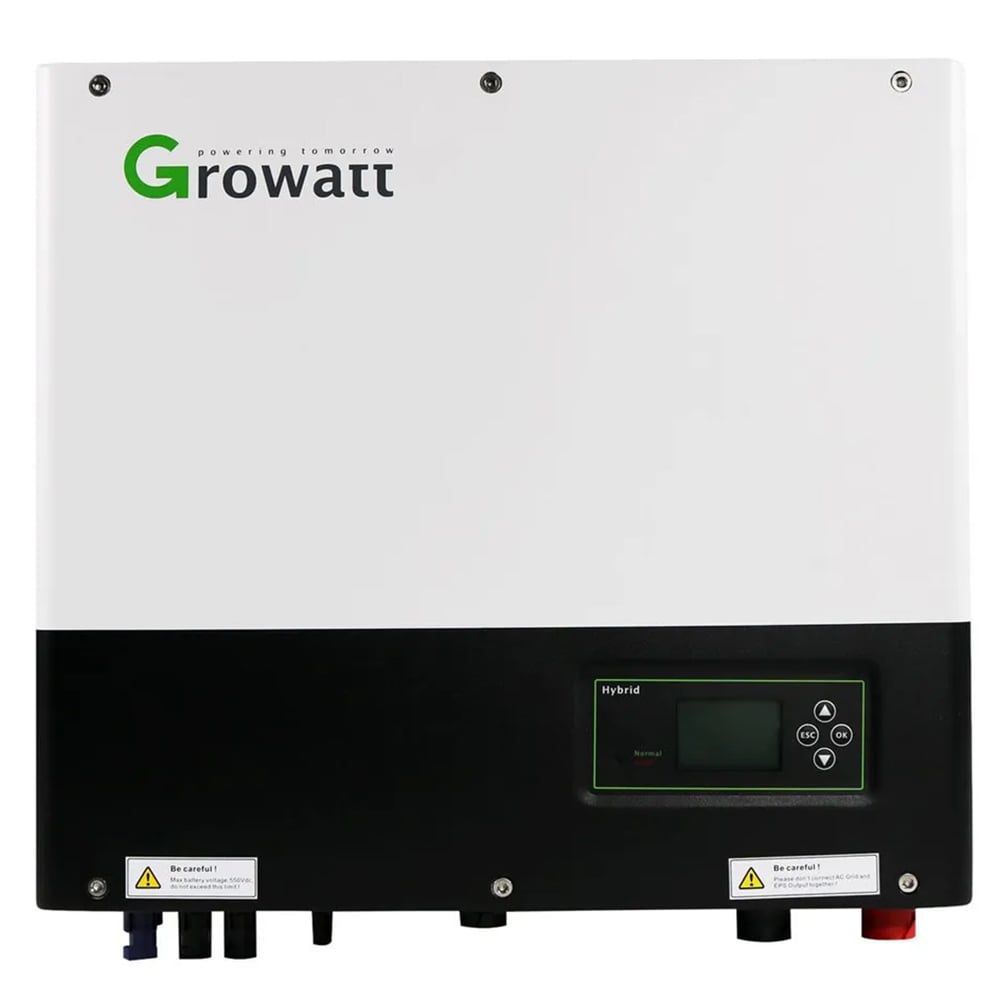

Growatt sph 10000tl3 bh-up 10kW hybrid inverter 3-phase

The Growatt sph10000tl3 bh-up hybrid inverter is a state-of-the-art solution for solar projects. With intelligent load management, a wide battery voltage range of 100-550 v and a VPP interface, it offers flexibility and efficiency. The inverter supports Solarasystems with a total output of up to 15 kW and enables an uninterruptible power supply. With these features, the sph10kTL3 bh-up is the ideal solution for flexible and reliable Solarasystems.

about the sph10kTL3 bh-up inverter

• 100% three-phase asymmetrical output
• Intelligent power control at phase level
• Wide battery voltage range 100-550 v
• UPS function (ups) with 10ms switching time
• VPP interface
• Scalable system configuration
• DC/AC type ii SPD
• DC/AC ratio up to 1.5
• Two MPP trackers (Maximum Power Point)
• Supports lithium and lead-acid batteries
• Intelligent load control via dry contact

Hybrid inverter

In contrast to conventional inverters, hybrid inverters offer the option of not only feeding the solar power generated into the grid, but also storing it in batteries. This means that the stored solar power can be used even when the sun is not shining. Another function of hybrid inverters is to optimize a household's electricity consumption by preferring to use the solar power generated directly in the household before it is fed into the grid. This leads to a reduction in energy costs and less dependence on expensive grid electricity.

Operating modes - configurable according to system requirements

Online mode

Different operating modes can be set for optimum system integration of the sph inverter. When entered directly on the device, a priority mode can only be set for one time period. When using the online platform, up to three time periods can be set for the priority mode (a chargeable accessory is required to use this function).

• Load first:With the standard "Load first" mode, the connected loads (consumers) are supplied with energy first. As soon as the PV energy is sufficient for the load, the surplus energy is fed into the battery. If the battery is fully charged or none is connected, the remaining energy is fed into the grid.
• Battery first:In this mode, the inverter first fully charges the battery with the maximum possible solar power. If the PV power is not sufficient, the grid charging function can also be activated.
• Grid first:In this mode, the PV energy generated is fed into the grid first. The on and off time of the mode can be set here, as well as the power rate.

Backup mode:

If there is no longer any mains voltage at the device, e.g. due to a short-term power failure or blackout, the Growatt sph automatically switches to backup mode. This ensures that the AC output is supplied via the EPS-LOAD connection. The required energy is only supplied via the Solarasystem and the battery. If the PV system also fails, the battery secures the AC supply until it is discharged. If required, the automatic switch to this mode can also be deactivated.

Maximum Power Point Tracking

By using Maximum Power Point Tracking (mppt) technology, a Solarasystem can achieve the optimum yield. The MIC inverter is equipped with mppt, which adjusts the optimum ratio of voltage and current throughout the day according to the solar radiation and the module temperature of the solar modules. With its wide mppt voltage range, many solar modules can be connected, enabling efficient energy generation. This advantage is particularly evident when the sky is partly cloudy and the light intensity is constantly changing.

Intelligent load management

The inverter's integrated smart load control enables precise and efficient control of energy consumption. By using a potential-free contact, electrical loads can be controlled intelligently and prioritized. This function enables automatic detection of energy requirements and optimum use of the available energy. Smart load management ensures optimum distribution of energy and thus contributes to efficient use. With intelligent load control via the dry contact, the inverter is able to optimize the energy flow and ensure efficient operation of your Solarasystem.

Growatt monitoring platform

By using the optional accessories of the Shine series, you can use the Growatt monitoring platform. This platform is available as a smartphone app for iOS and Android as well as a web version. The Shine accessories must be purchased separately, but use of the platform is free of charge. you can configure and monitor all your Growatt products via Shine, and it also allows you to view self-consumption and track trends.

The following Shine options are compatible with the sph series:

• ShineWiFi-X
• ShineLink-X
• Shine4G-X
• ShineMaster

Technical data

• Recommended module output: up to 15 kW
• Max. DC voltage: 1000V
• Starting voltage: 120 V
• mppt voltage range: 120-1000 V/600 V
• Battery voltage range: 100~550V
• Max. Charge/discharge current: 25 A
• Continuous charging/discharging power: 10 kW
• AC rated power: 10 kW
• Max. Apparent power: 10 kVA
• Max. AC output power: 10 kW
• Max. Output current: 15.2 A
• Nominal AC voltage range: 230/400 v (310~476 V)
• AC mains frequency range: 50/60 Hz (45Hz-55Hz/55Hz-65Hz)
• Enclosure rating: IP65
• Manufacturer's warranty: 10 years
• Maximum efficiency of 98.2
• Dimensions: 505 x 453 x 198 mm
• Weight: 30 kg

Scope of delivery

1x Growatt sph10000tl3 bh-up inverter

Note on Growatt inverters in use with batteries

Please note that the MIN, MOD, SPH and SPA series inverters may only be operated with original Growatt batteries. All Growatt inverters sold in Europe are not compatible with lead-acid batteries. Their use can lead to malfunctions or damage to the devices. Furthermore, no warranty claims can be made.
