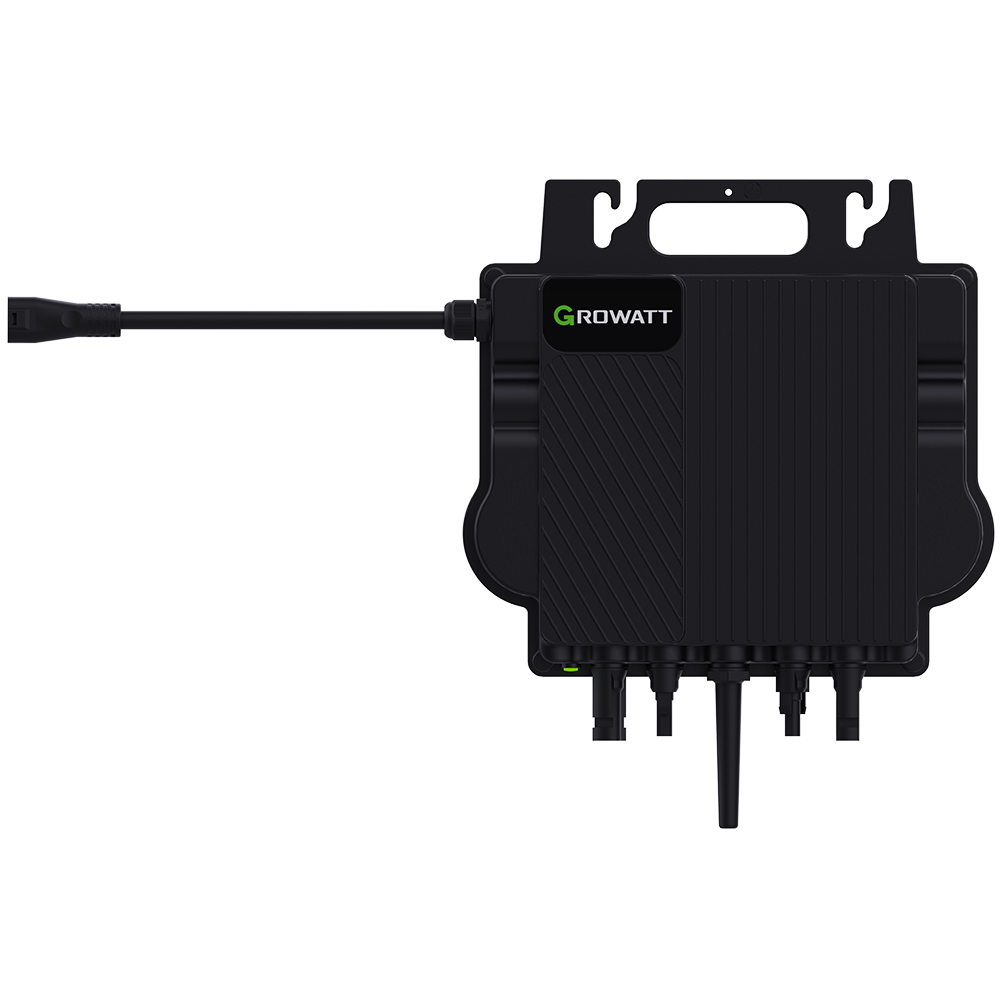

Growatt NEO 800M-X 800W VDE 4105 micro inverter WiFI integrated

The Growatt neo 800m-x is a single-phase micro inverter that has been specially developed for the trouble-free use of balcony power plants or miniSolaranlagen. The inverter is characterized by its impressive efficiency of up to 96.5%.

With 2 independent MPPT inputs and an impressive maximum PV output of 320w up to 540w, this inverter is ideal for smaller systems. In addition, the inverter offers a WiFi function that enables effortless system monitoring. This makes it an optimal choice for setting up and managing balcony power plants, where ease of use and high efficiency are of great importance.

The neo 800m-x inverter:

• 2 independent MPPTs
• Integrated WiFi communication
• Type iii spd on ac side
• Quick shutdown
• monitoring at module level
• Online smart service and maintenance
• LED display

Two MPP trackers for optimum solar yields

The Maximum Power Point Tracker (mppt) technology enables the yield of a Solarasystem to be maximized by determining the ideal relationship between solar radiation, module temperature and the properties of the solar cells throughout the day. The neo Inverter with two MPP trackers allows the optimum operating point for two separate photovoltaic strings to be optimized independently of each other. These two trackers work independently, which means that shading in one string, for example, has no effect on the other.

ac type iii spd

A type iii spd on the ac side of the inverter is a protective device that protects the inverter and connected components in Solaranlagen from overvoltages. It safely detects and diverts overvoltages caused by external influences such as lightning strikes to prevent damage to the equipment and ensure the reliability of the system.

Integrated protection functions

• DC reverse polarity protection
• ac overvoltage protection
• ac short-circuit protection
• Earth fault monitoring
• Mains monitoring
• Islanding protection

Technical data

• Max. recommended PV power: 320w up to 540w+
• Max. Input voltage: 60 V
• Start voltage: 16 V
• Nominal DC voltage: 16-60 V
• MPPT voltage range: 28V-60V
• Max. Input current per mppt: 16A
• Max. Short-circuit current per mppt: 20 A
• rated ac power: 800 W
• ac rated voltage range: 230v (180-253V)
• Frequency range: 50/60 Hz (45-55Hz/55-65Hz)
• Nominal output current: 3.48 A
• Dimensions: 260 x 220 x 43mm
• Weight: 3.1 kg
• Operating temperature range: -40°C - +65°C
• Protection class: IP67

In addition to the Growatt neo 800m-x inverter, we also offer a matching 5m ac cable which is specially designed for easy installation. The ac cable meets the specifications of the inverter and ensures a safe and efficient connection to the power supply.

Scope of delivery

1x Growatt neo 800m-x micro inverter
