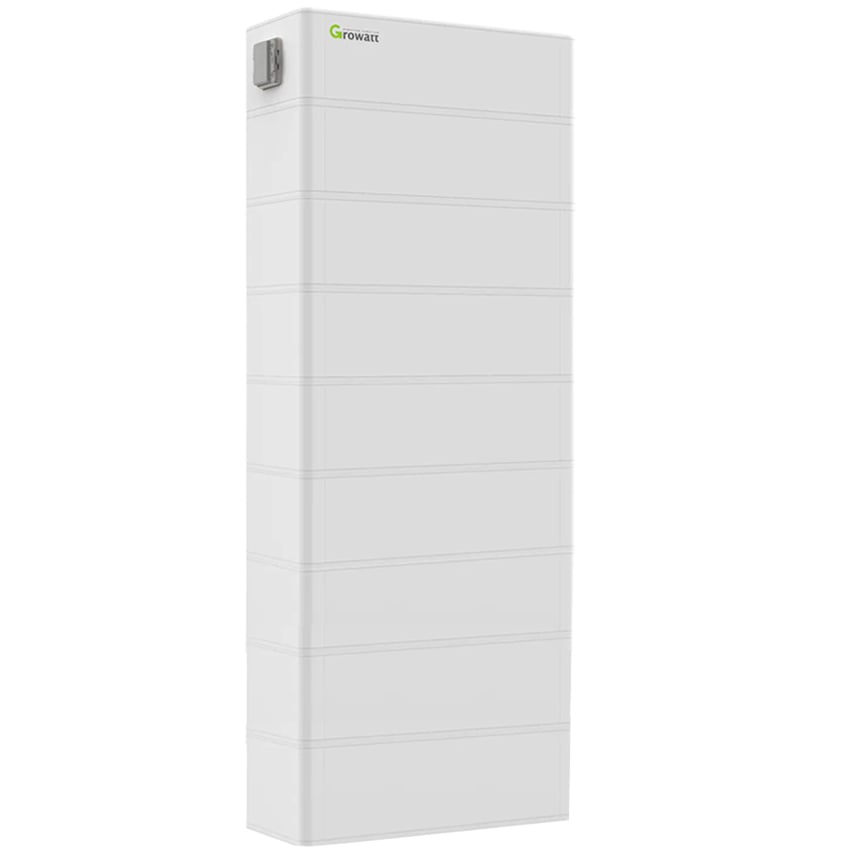

The ark high-voltage storage system from Growatt can be used flexibly thanks to its modular concept and can be expanded as required. A battery tower can be set up with a minimum of 3 to a maximum of 10 ark high-voltage batteries. A bms control unit and a connection cable set are included for commissioning with a compatible inverter. The battery base is also available as an option for ground installation.
The Growatt high-voltage battery system contains:
- ark 2.5h-a1 high-voltage battery LiFePO4 2.56kWh (3-10x depending on selection)
- hvC 60050-a1 ark bms control unit
- Connection cable set ark battery to inverter
- Optional: Battery base Ground installation
Compatible inverters
ark 2.5h-a1 high-voltage battery
The Growatt ark 2.5h-a1 high-voltage battery (mpn ark-2.5h-a1) is a LiFePO4 storage system with high cycle stability and a long service life. The modular, stackable concept enables flexible application for different scenarios and is easy to install. The battery offers excellent performance under high loads and is also suitable for outdoor installation with its ip65 protection. The soft start is used to prevent overvoltage in the system.
About the ark 2.5h-a1 battery:
- Modular, stackable battery concept
- Cobalt-free lithium iron phosphate (LFP)
- High cycle stability and long service life
- Wall or floor installation possible
- Soft start to protect the system from overvoltage
- Automatic wake-up in the event of undervoltage
- Protection class ip65 for outdoor installation
- Remote diagnosis and firmware update
Areas of application
- For grid-connected and stand-alone photovoltaic systems
- Emergency power supply
- Uninterruptible power supplies (usv / UPS)
Soft start to protect the system
The soft start mechanism is a protective function that is used with the Growatt battery to protect the system from overvoltage. When the battery is started or switched on, the power supply is gradually increased to protect the system from damage that could be caused by a sudden voltage spike. This ensures smooth and safe operation of the battery system.
Long cycle life
The Growatt ark battery modules are an ideal storage solution for photovoltaic systems due to their extremely long cycle life and the use of LiFePo4 cells. Regardless of whether it is a grid-connected or off-grid system, the Growatt storage system offers numerous advantages compared to conventional lead batteries and other lithium technologies.
Technical data for 1 battery module each:
- Battery type: Cobalt-free lithium iron phosphate (LiFePo4)
- Energy capacity: 2.56?kWh
- Usable capacity: 2.3 kWh
- Nominal voltage: 51.2?V
- Operating voltage range: 47.2-56.8?V
- Charging/discharging current: 25?A/0.5?C
- Protection class: ip65
- Temperature range: -10~50° C
- Dimensions: 650 x 260 x 180 mm
- Weight: approx. 28 kg
- 10-year manufacturer's warranty
- Certificates: iec62619, ce, cec, rcm, UN38.3
bms control unit
The Growatt hvC-60050-a1 bms is a central monitoring and control unit that is part of the ark hv high-voltage battery system and supports communication with the Growatt spa and sph inverters. Up to 10 battery modules, each with a capacity of 2.56 kWh, can be connected to this bms. These modules can be connected in series to form a battery tower offering a total capacity of up to 25.64 kWh. Storage towers can also be connected together, with one bms required per tower.
About the hvC 60050-a1 bms
- Compatible with Growatt spa and sph inverters
- Modular, stackable battery concept
- Monitoring and control
bms control parameters
The control parameters include the state of charge (soc), the mains voltage, the current, the cell voltage, the cell temperature and the PCBA temperature measurement. By precisely monitoring these parameters, the bms ensures optimum battery performance and longevity.
Flexible expansion
Growatt's ark battery system offers a high degree of flexibility thanks to its expandable configuration options, which range from 2.56 kWh to 25.6 kWh. Installation and expansion of the system is simple and straightforward thanks to the modular design and the use of cables. Another innovation of the ark system is that, unlike other battery systems, no battery cabinet is required. Only a battery base is required for a stable stand.
Technical data:
- Input/output voltage range: 90~585V
- Rated current: 25A
- Protection class: ip65
- Temperature range: -10~50° C
- Dimension: 650 x 260 x 185 mm
- Communication: CAN
- Weight: 8.5 kg

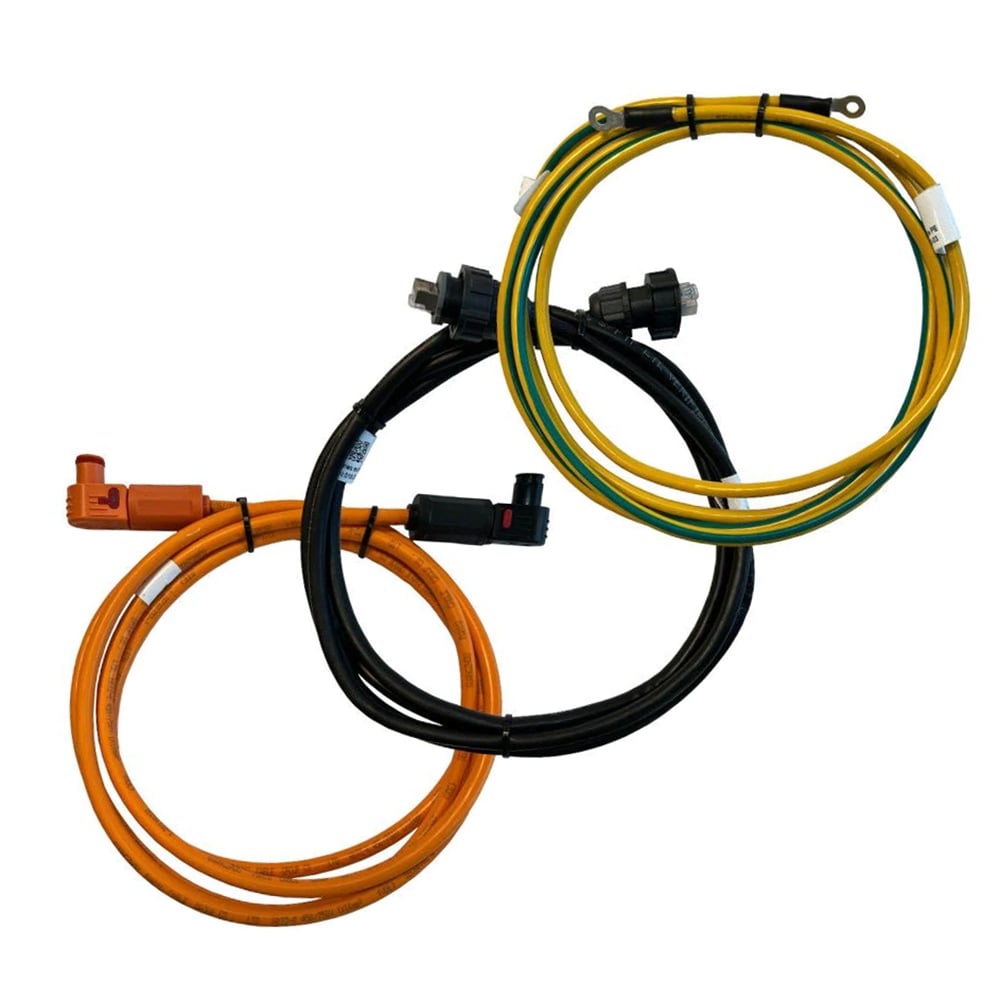

Connection cable set for inverter
The Growatt battery cable set is required to connect Growatt ark2.5h-a1 batteries to inverters of the three-phase sph or spa series.
- 2x 2m power cable (plus/minus)
- 2m communication cable

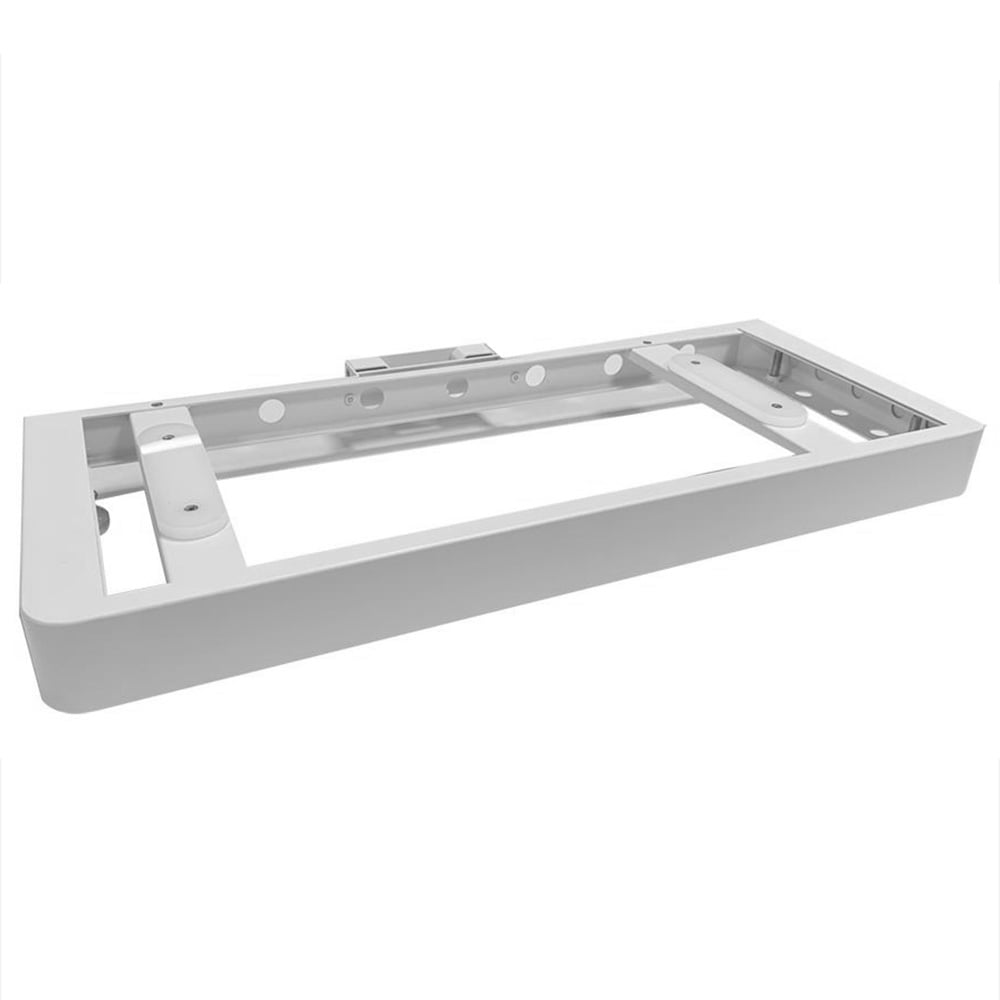

ark battery base
The Growatt ark battery base is suitable for the ground installation of Growatt ark battery modules and ensures that the battery tower stands securely. The Growatt ark system has a modular design, i.e. several batteries can be combined, with the Growatt Base serving as the foundation. Up to 10 storage modules and the associated bms can be stacked on one base.
- for floor mounting of Growatt ark hv and xh batteries
- one base per battery tower
- Weight: 3kg
