go-e Wallbox Gemini 2.0 11kW charging box with 1.8 meter cable and eSIM

The Gemini 2.0 from go-e (MPN: CH-05-11-51) is a smart, stationary wallbox with a charging capacity of 11kW and integrated SIM card. The charging station is suitable for installation at home or in a company parking lot, for example. It enables simple, fast and safe charging of electric vehicles and plug-in hybrids . With the go-e app and via the API, you benefit from numerous additional convenient functions. For example, you can conveniently control and monitor the charging process intelligently from anywhere. Thanks to the integrated SIM card, the go-e Charger offers all the great features of the previous Gemini series - even without a Wi-Fi connection. Thanks to the IP65 classification, charging electric cars or hybrid vehicles is safe and reliable, regardless of the weather conditions.

The highlights of the wallbox

• Smart charging via mobile radio and WLAN
• Various charging modes
• Numerous safety functions
• For 1- or 3-phase systems
• Charge any electric car
• Integrated RFID chip
• App function - full control and monitoring
• Can be used indoors and outdoors thanks to IP65
• Quick & easy installation by the electrician
• compliant with §14 EnWG

Charge your electric car - no matter which one

The charger is quick and easy to install, depending on your home technology. Attach the wall mounting plate, hang up the wallbox and connect it to the appropriate power source. Charging is just as easy as with a smartphone. Plug in the type 2 cable and the go-e Charger automatically charges with the power required by the car. If required, you can conveniently adjust the charging current directly on the device using the push button or use your app. Your electrician can easily connect it to an existing junction box.

Different charging modes

Starting the charging process as soon as you arrive is practical, but not always the most sustainable or cost-effective option. With the go-e charging station and its intelligent charging timer function, you can postpone your charging processes to times when there is an abundance of electricity. This reduces the load on the power grid and, depending on your electricity tariff, can also pay off financially for you.

Your safety and protection functions

If necessary, the charging station automatically reduces the flow of electricity (static/dynamic load management - only with go-e Controller) or switches off completely in the event of fault currents. This protects your car, the home electrics and the wallbox itself from damage. It has a DC protection module that protects the house installation from possible DC fault currents that could be caused by an electric car. A type A residual current circuit breaker and a miniature circuit breaker should be installed on the building side. In addition, the charger offers extended protection against AC residual currents (6 mA DC, 20 mA AC). Further advantages of the charger are

• Protection class: I
• Pollution degree: II
• Anti-theft protection - locking of the charging cable
• Access control - can be activated via RFID or app if required
• Phase and voltage testing
• Testing of the switching functions
• Earthing test
• Temperature sensors - regulation of the charging current in the event of overtemperature

Can be used both indoors and outdoors

With the go-e Charger, you get an extremely reliable and weatherproof charging solution thanks to the IP65 classification. You can always count on full power regardless of the weather conditions. The charging cable is locked theft-proof to ensure maximum security. Outdoors, the RFID chip offers you additional protection against unauthorized use. RFID chips are particularly practical when several people use the charger, as the charged power is shown separately for each user. This means you always have an overview and can share the go-e Charger with family or friends without any worries.

WLAN problems? There's another way

With the charging station, you can remain completely relaxed, as the reliable mobile connection is guaranteed by the integrated SIM card. You get free mobile coverage for at least 5 years and can extend this connection for just 12 euros per year (incl. VAT). Details can be found in the data sheet. If you also use a go-e controller, seamless cooperation between the two devices is guaranteed. This means you can easily use load management, PV surplus charging and flexible, cost-effective electricity tariffs. Only the MQTT and Modbus TCP protocols still require a Wi-Fi connection due to the high volume of data and technical requirements.

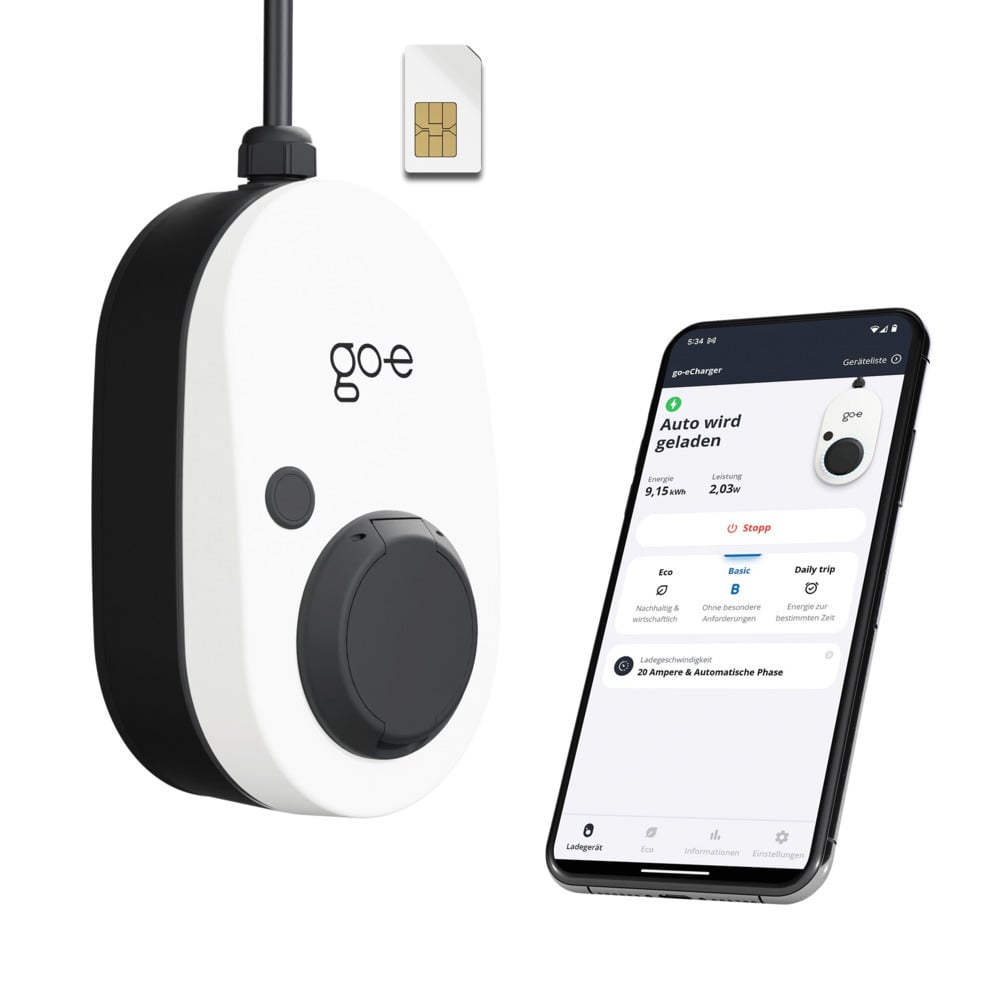

Full control with the app

You can also carry out all charging processes without the app. The LED ring on the wallbox shows you the current charging status. But. The status can be called up even more conveniently via the go-e Charger app, which also allows you to adjust all basic and comfort settings as required. Thanks to the integrated electricity meter, you can always keep an eye on the amount of electricity charged. If the wallbox is connected to a Wi-Fi network or has an active mobile phone connection, you can even control and monitor the device from the comfort of your couch.

Technical data

Charging capacity

• Max. Charging power: 11kW (16A, 3-phase)
• Amperage and status display: LED ring and app
• Setting the charging power: in 1 ampere steps between 6A and 16A
• 1-phase charging car: 1.4-3.7kW
• 3-phase charging car: 4.2-11kW
• Car connection: Type 2

General information

• Connection: Single-phase or three-phase
• Rated voltage: 230-240V (1-phase) / 400-415V (3-phase)
• Frequency: 50Hz
• Standby power: 3.1W (LEDs dark) to 5.2W (LEDs bright)
• RFID: 13.56MHz
• Communication: WLAN, 4G, LTE/2G, EDGE, supported frequency bands
• Operating temperature range: -25°C - +40°C
• Storage temperature range: -40°C - +85°C
• Protection class: IP65
• Weight: 1.85kg
• Dimensions: 155 x 260 x 110mm

Scope of delivery

1x 11kW charging station
1x 1.8m connection cable (5x2.5mm² type H07BQ-F)
1x wall bracket incl. screws and dowels
1x Optionally mountable anti-theft device (U-piece)
1x reset card
1x RFID chip (already programmed)
1x Quick guide
