EcoFlow PowerStream 800W-System inkl. Smart Steckdose

The PowerStream 800W system from Offgridtec and EcoFlow is an innovative solution for storing the surplus energy produced by your balcony power plant during the day and retrieving it when it’s needed most. With this system, you can elevate energy efficiency to a new level and achieve significant savings. The minimal set consists of an 800W micro-inverter and a smart plug for monitoring and coordination. When choosing a set with solar panels, you can select either a 445W Trina Solar Vertex S Black Frame or a FSP-Max 400W foldable solar suitcase.

Compatible with EcoFlow power stations:

• Delta Series: Delta Max 2000 and Delta Pro
• Delta 2 Series: Delta 2 and Delta 2 Max
• River 2 Series: River 2, River 2 Max, and River 2 Pro

The PowerStream 800W System Includes:

• 1x EcoFlow PowerStream 800W Micro-Inverter Module (includes 1.5m AC cable and 2m DC cable)
• 1x EcoFlow Smart Plug App-Control for PowerStream

When choosing a solar module:

• 2x solar module or solar suitcase (depending on selection)
    - Trina Solar 445W Vertex S+ Dual-Glass N-Type TopCon Module
    - Offgridtec FSP-Max 400W 36V Foldable Solar Module Solar Suitcase

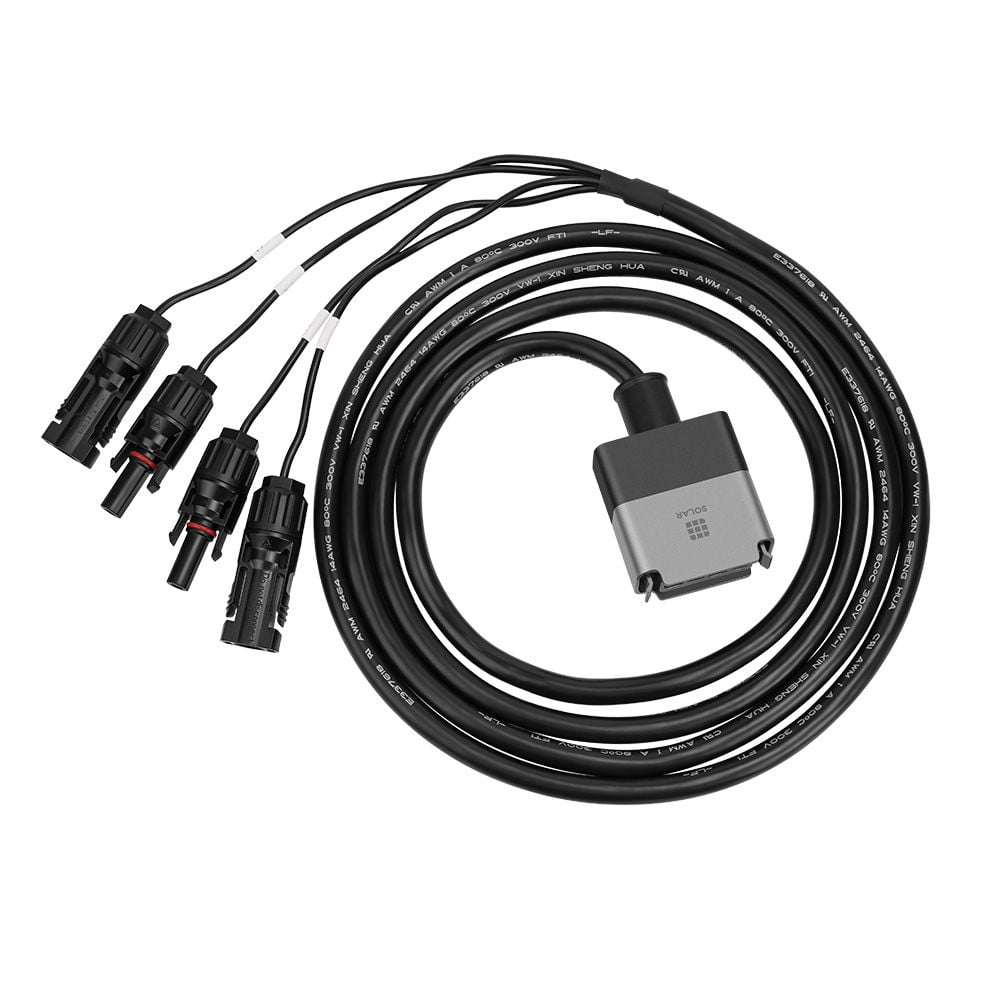

• 2x EcoFlow Super Flat Cables Flat Cable 0.5m with MC4 Connector
• 2x 20cm Anderson to Solar Connector Adapter Cable for FSP Modules and Solar Suitcase (for use only with Offgridtec Solar Suitcase)

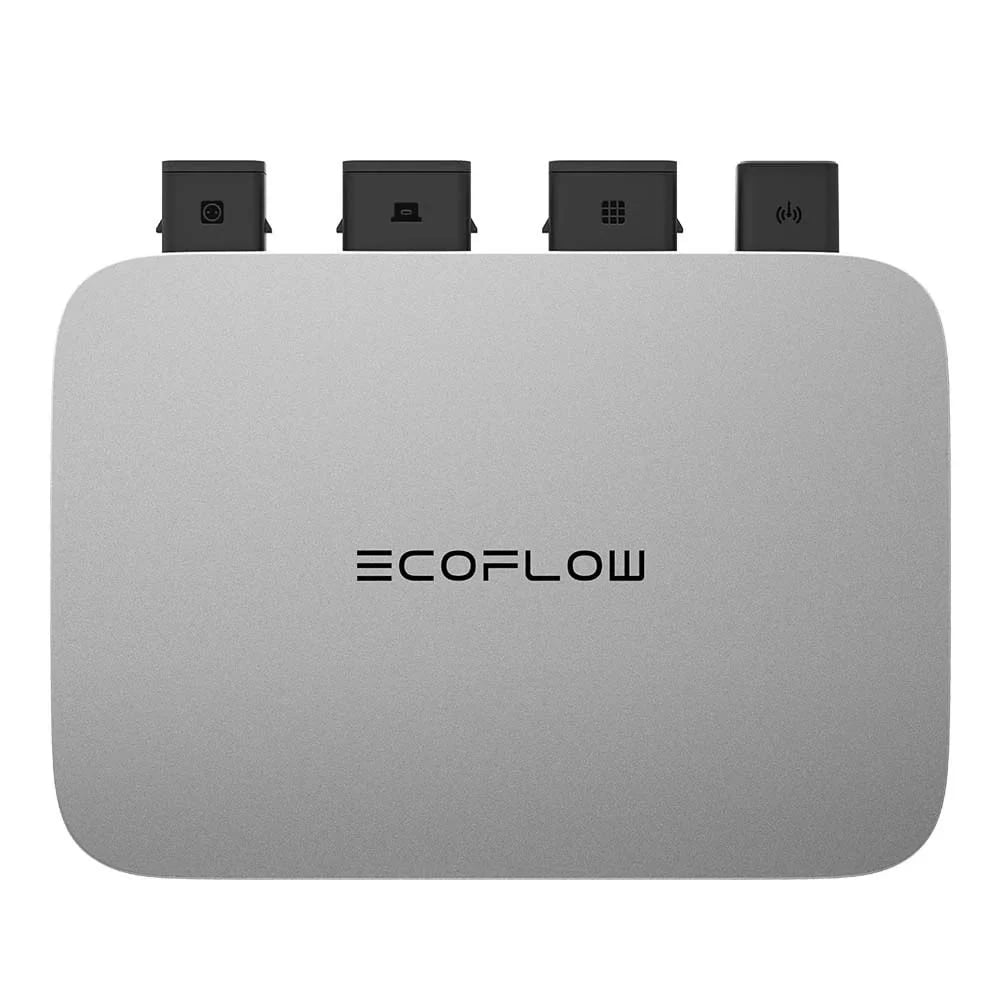

PowerStream 800W

The PowerStream 800W micro-inverter from EcoFlow is the ideal plug-and-play solution for your balcony power plant. With the optionally available smart plug and the EcoFlow app, the inverter can be monitored in real time. In combination with an EcoFlow power station, any unused energy can also be stored and utilized later.

• 0% energy waste possible
• Plug and Play - easy installation
• DIY socket design
• 10-year manufacturer warranty
• Wi-Fi and Bluetooth enabled
• Compatible with EcoFlow Smart Plug
• Optional: Monitoring with EcoFlow App
• High safety through integrated protection functions

The PowerStream System - Store surplus energy for the right moment!

The PowerStream system is an innovative solution that allows you to store the surplus energy produced during the day and retrieve it when it is most urgently needed. With this system, you can elevate energy efficiency to a new level and achieve significant savings. With an injection of up to 1039 kWh per year (under optimal conditions), you can save up to €415. Compared to other home power plants without storage, the PowerStream system enables 3.5 times the energy savings.

Technical Specifications

• PV input power: 400W x 2
• Max. input current: 13A
• Max. input voltage: 55VDC (PV connection), 59VDC (DC connection)
• Charging voltage: 30-58 VDC
• AC output power (grid-tied): 800W
• Max. AC output current: 3.7A
• DC input/output: 600W
• Humidity: 0-100%
• Dimensions: 242 x 169 x 33 mm
• Weight: approx. 3kg
• Operating temperature: -40 to +50°C
• Enclosure rating: IP67

Trina Solar 445W Vertex S+ Black Frame

The Trina Solar Vertex S+ (MPN: TSM-NEG9R.28) is an effective solar module with a power of 445W, utilizing monocrystalline TOPCon cells and dual glass technology. Thanks to the multi-busbar technology, it offers improved absorption, low series resistance, enhanced current collection, and reliability. It is certified for extreme wind and snow loads of 5400 - 4000 Pa and features highly transparent, 1.6 mm thick glass with an anti-reflective coating. The frame is made from a 30 mm wide anodized aluminum alloy.

• Multi-busbar technology
• Dual-glass design
• High-density cell connection technology
• N-type i-TOPCon cell technology
• Very low degradation
• High efficiency of 22.3%
• Manufacturer product warranty: 25 years
• Universal solution for residential and C&I roofs
• Includes connection cable (4.0mm²)

Technical Specifications

• Power (Pmax): 445 W
• Voltage (Vmp): 44.3 V
• Max. current (Imp): 10.05 A
• Open-circuit voltage (Voc): 52.6 V
• Short-circuit current (Isc): 10.71 A
• Operating temperature: -40°C - +85°C
• Max. system voltage: 1500V DC
• Max. fuse protection: 20A
• Number of cells: 144
• Ingress protection of junction box: IP68
• Dimensions: 1762 x 1134 x 30 mm
• Weight: 21.1 kg

FSP-Max 400W Foldable Solar Module

The FSP-Max 400W from Offgridtec (MPN 014560) is a foldable high-end solar module with a connection kit and integrated folding support legs, allowing the module to be easily set up anywhere at a 45-degree angle. The module is equipped with highly efficient monocrystalline PERC solar cells, demonstrating an efficiency of over 23%, delivering a solid 400Wp of solar power with optimal alignment and sunlight.
The combination of compact dimensions when closed and a low total weight of just under 13kg sets new standards in terms of flexibility and efficiency for mobile solar modules. Supplying mobile or permanently installed energy storage systems is therefore flexible and straightforward. Note: The solar suitcase is not suitable for permanent positioning!

The solution for solar-based mobile battery charging

• In camping
• On expeditions
• For vehicles and boats without permanent solar installations
• For off-grid power supply at home
• And many other applications in various fields

Key Features

• High output power
• Compatible with various 1-2.5 kWh mobile power stations
• Made from high-quality polymer composite
• Quick to set up and connect
• Cell efficiency of over 23%
• Compact dimensions
• With practical carrying handle and protective case
• Solar module protection class: IP65
• Wiring (Anderson) protection class: IP20

Technical Specifications

• Nominal power (Pmax): 400Wp (4x100W)
• Module voltage (Vmp): 36.5V
• Max. module current (Imp): 10.96A
• Open-circuit voltage (Voc): 43.1V
• Short-circuit current (Isc): 11.62A
• Max. system voltage: 200V/DC
• Cell efficiency: 23.4%
• Cell type: MONO-PERC
• Weight: 12.6kg
• Dimensions closed: 900 x 590 x 90 mm
• Dimensions opened: 900 x 2362 x 22.5 mm

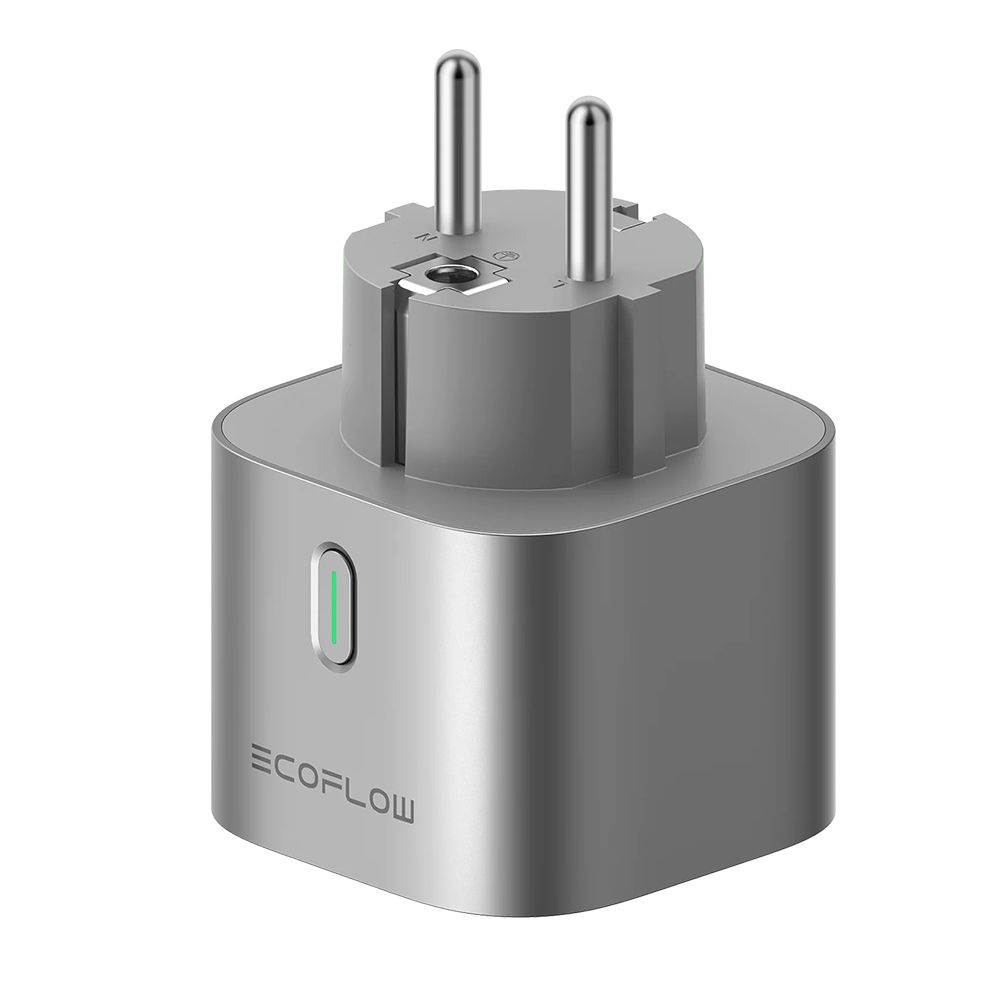

Smart Plug

The Smart Plug from EcoFlow (MPN: EFA-SmartPlug-EU) is a small socket connected via Wi-Fi that allows monitoring and intelligent control of the energy consumption of devices. In combination with the corresponding micro-inverter and the EcoFlow app, which forms the PowerStream system, the plug provides real-time statistics on energy consumption and allows optimized automatic power distribution.

• Works with PowerStream micro-inverter
• Optimized automatic energy allocation
• Remote control of devices via app
• Real-time energy management
• Matter Smart Home protocol (works with Matter-compatible smart home systems)
• Schedules and timers
• Guaranteed safety and durability
• 2-year warranty

Real-time energy management

Monitoring the energy consumption of devices in real-time and over a longer time period enables detailed reports to be viewed in the EcoFlow app and helps recognize consumption patterns. This allows for optimized energy savings and striving for a carbon-neutral lifestyle.

Technical Specifications

• Weight: 113 g
• Dimensions: 53 x 53 x 79 mm
• Voltage: 110-250 V
• AC Current: 10 A
• Frequency: 50 Hz
• Operating temperature range: -10°C - +40°C
