EcoFlow Power Kit Prepared Kit

The EcoFlow "Prepared Kit" can be combined in a wide variety of ways to generate energy for carefree, off-grid living and motorhome travel - in a small space. The modular energy system is the world's first compact energy solution designed specifically for small homes and motorhomes. These customizable plug and play power systems are now simpler than ever and can be adapted to your individual requirements.

The EcoFlow LFP batteries are available as 2 kWh and 5 kWh available. Up to three batteries can be stacked for use to increase the capacity to 4 kWh or 15 kWh. The integrated bms protects the batteries from activities that exceed their capacity limits. Temperature, voltage and current are monitored so that your home and system remain safe. Thanks to the integrated automatic preheating function, you can safely use the batteries in temperatures as low as -20°C.

About the EcoFlow power kits

• 4 charging methods
• 4 different inputs for motorhomes (solar power input, vehicle generator input, shore power input, smart generator input)
• 2 different inputs for off-grid living (solar power input, smart generator input)
• Intelligent controls
• Compact and integrated design
• Easy to assemble
• Space saving
• 48v, a safe, smaller solution

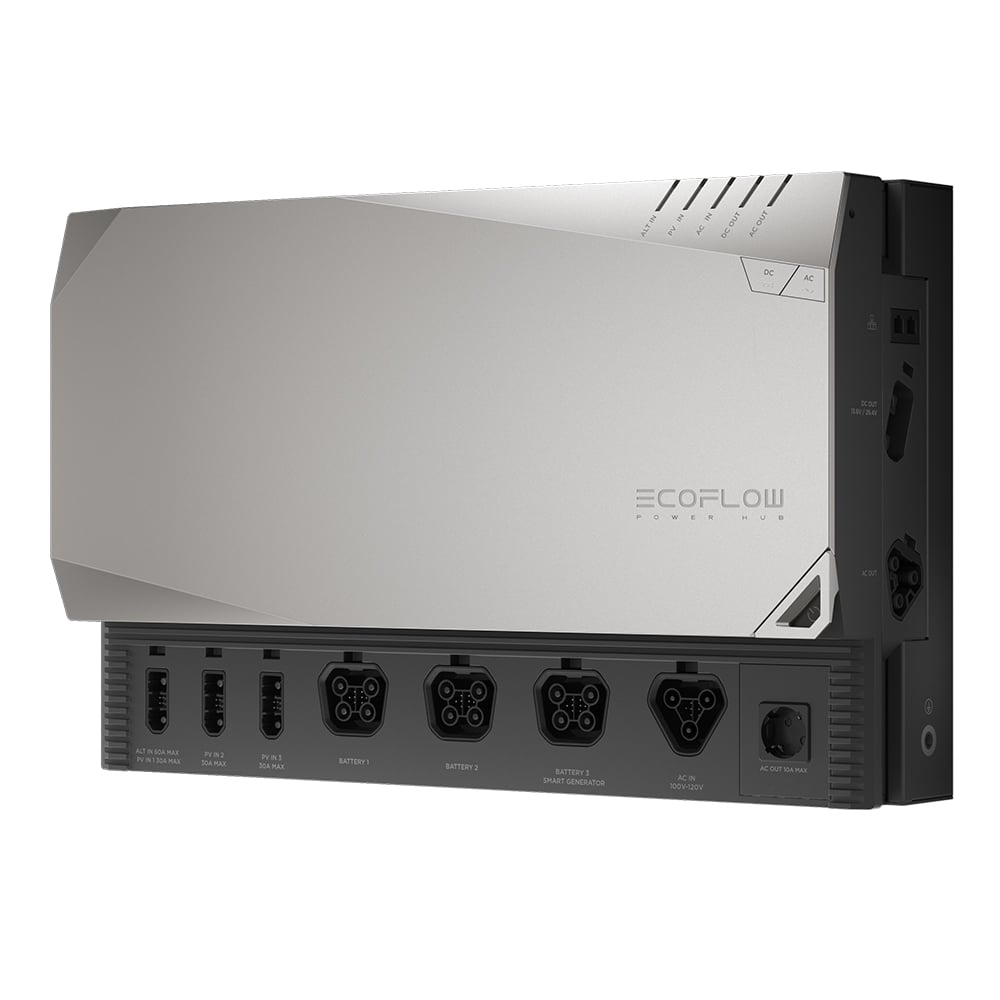

EcoFlow Power Hub

The Power Hub from EcoFlow is equipped with a 3600w AC output and includes two MPPT solar charge controllers, a dc/dc battery charger with mppt, an inverter charger and a dc-dc step-down converter. With all these components, you are ideally equipped to supply your tiny house or camper with energy. Its intelligent MPPT algorithm enables fast tracking and optimum solar yield. To protect the generator, the battery charger automatically adjusts the current.

About the Power Hub

• Outstanding MPPT algorithm
• Bluetooth, wifi, mobile app
• Various operating modes
• X-Boost (enables an AC output of 5000W to be achieved)
• X-Stream (fast charging with 3000w AC input)
• Compatible
• Automatic adjustments
• Efficiency and protection
• Easy to use and install

X-Boost function

X-Boost technology allows this product to supply an appliance with a maximum power of 5200w (for heaters only) while the rated output power remains at 3600w to prevent operational failure due to overload protection. The function is not available if the AC output is operated in bypass mode. The function is also not suitable for all appliances. It is particularly suitable for heating and motorized appliances, but not for products with voltage protection, such as precision instruments.

Operating modes

Bypass mode: When the appliance is connected to an external AC source and the AC output is switched on, the system switches to bypass mode. The AC output is powered by the external AC supply while the LFP battery is charged by the external AC supply. If no external AC source is available, this product will automatically switch to inverter mode. In this mode, the AC output is reactivated for power supply within only 30ms.
Inverter mode: If no external AC power source is available, the inverter provides AC power via current output.
Standby mode: If both the AC output and the dc output of the device are permanently deactivated and no charging input is made within 20 seconds, the device switches to standby mode to reduce energy consumption. It can be reactivated by pressing the dc out or AC out button.

Technical data

• AC main output
  • Pure sine wave voltage
  • Power: 3600 W
  • Voltage: 230 V
  • Frequency: 50 HZ
• AC standard output
  • Voltage: 230 V
  • Current: 10 A
• Direct current output
  • 13.6 v, 70 a, max. power 1000W
  • or
  • 26.4 v, 60 a, max. power 1600W
• Maximum power supported by X-Boost
  • 5200 W
• AC input voltage: 220-240 V
• Dimensions: 30 x 48 x 14cm
• Weight: 14kg
• Storage temperature: -25°C to 60°C
• Operating temperature: -25°C to 60°C

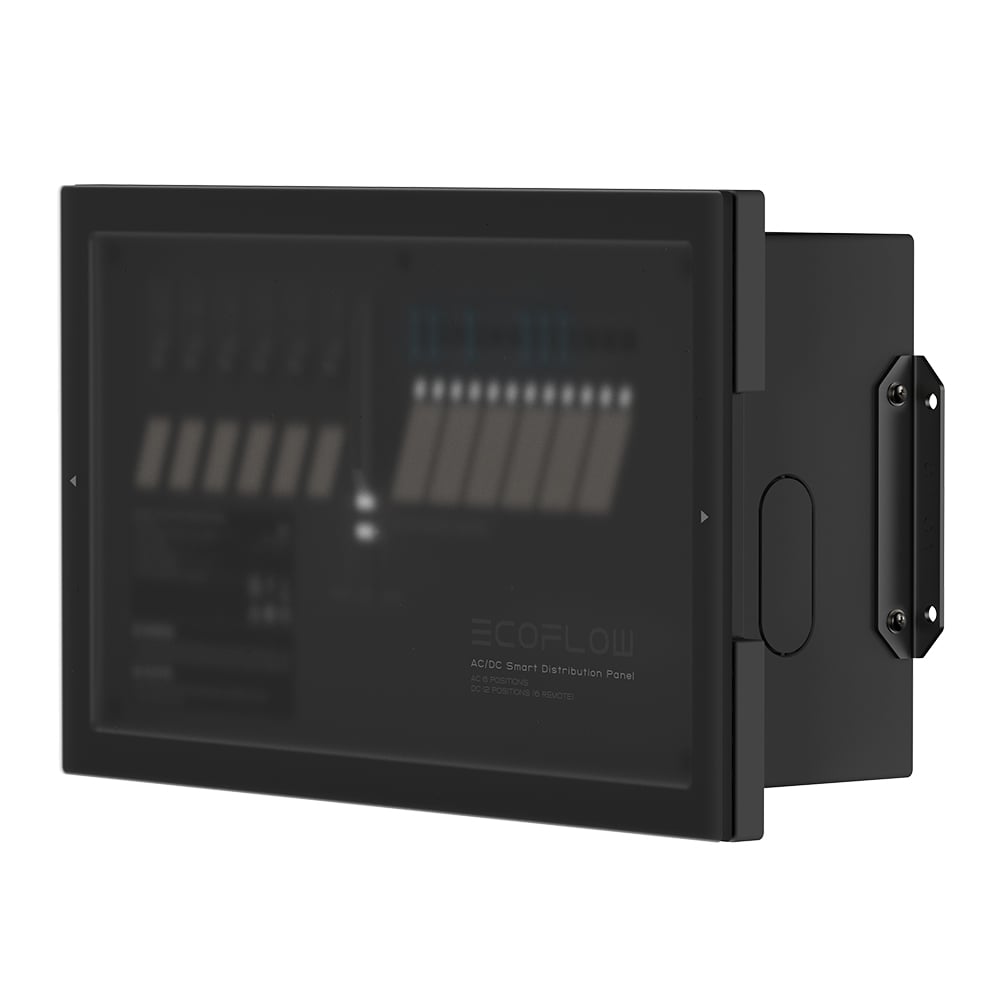

AC/dc distribution box

The intelligent Distribution box from EcoFlow simplifies installation and improves the safety and clarity of power distribution with an easy-to-connect plug and clear LED indicators. It also supports two installation methods. One is inline installation and the other is direct wall mounting. With an easy-to-wire plug and clear LED indicators, the intelligent distribution box offers simple set-up and makes setting up power distribution safer and clearer.

Technical data

• AC input: 220-240v, 50Hz
• Maximum input current: 30A
• dc output: 10-30v dc
• Maximum input current 70A
• Weight: 2,6kg
• Dimensions: 354 x 210 x 98mm
• Operating temperature: -25°C to 60°C
• Storage temperature: -25°C to 60°C

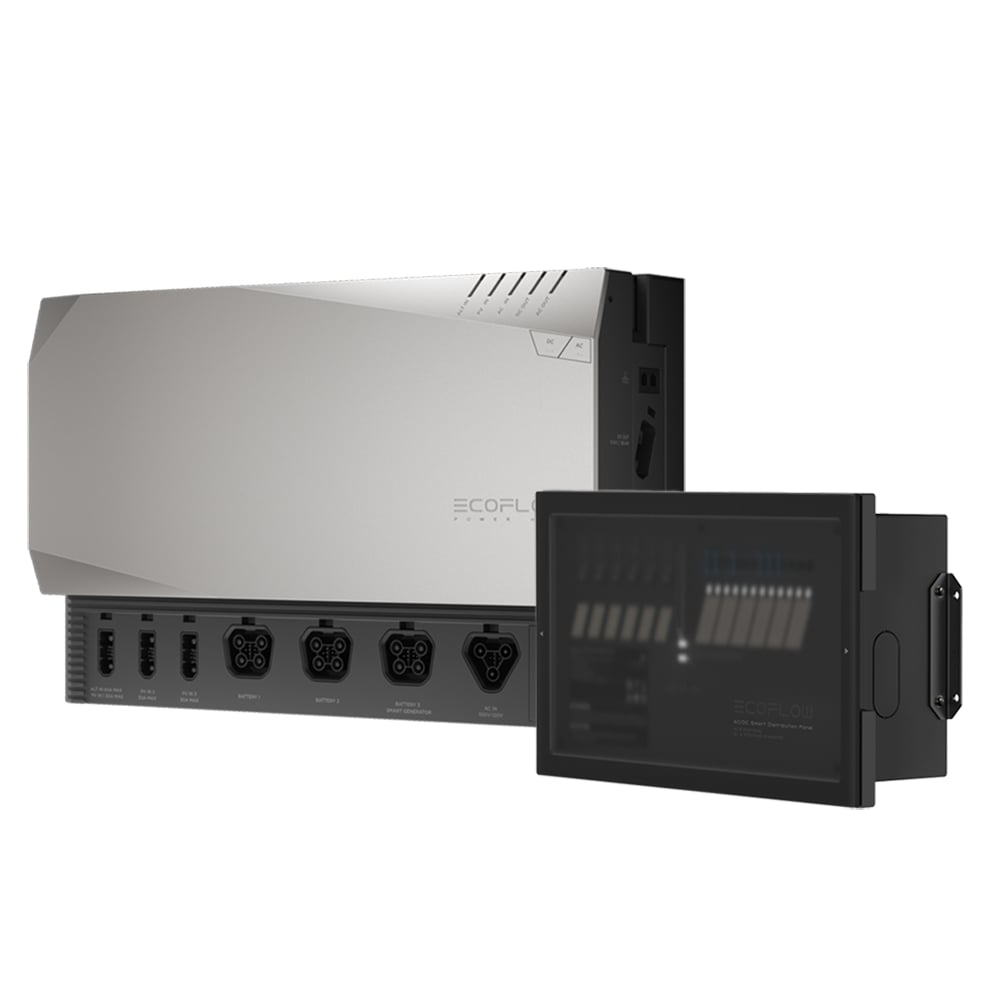

Scope of delivery:

1x EcoFlow Power Hub
1x EcoFlow AC/dc distribution box
1x EcoFlow cable package
