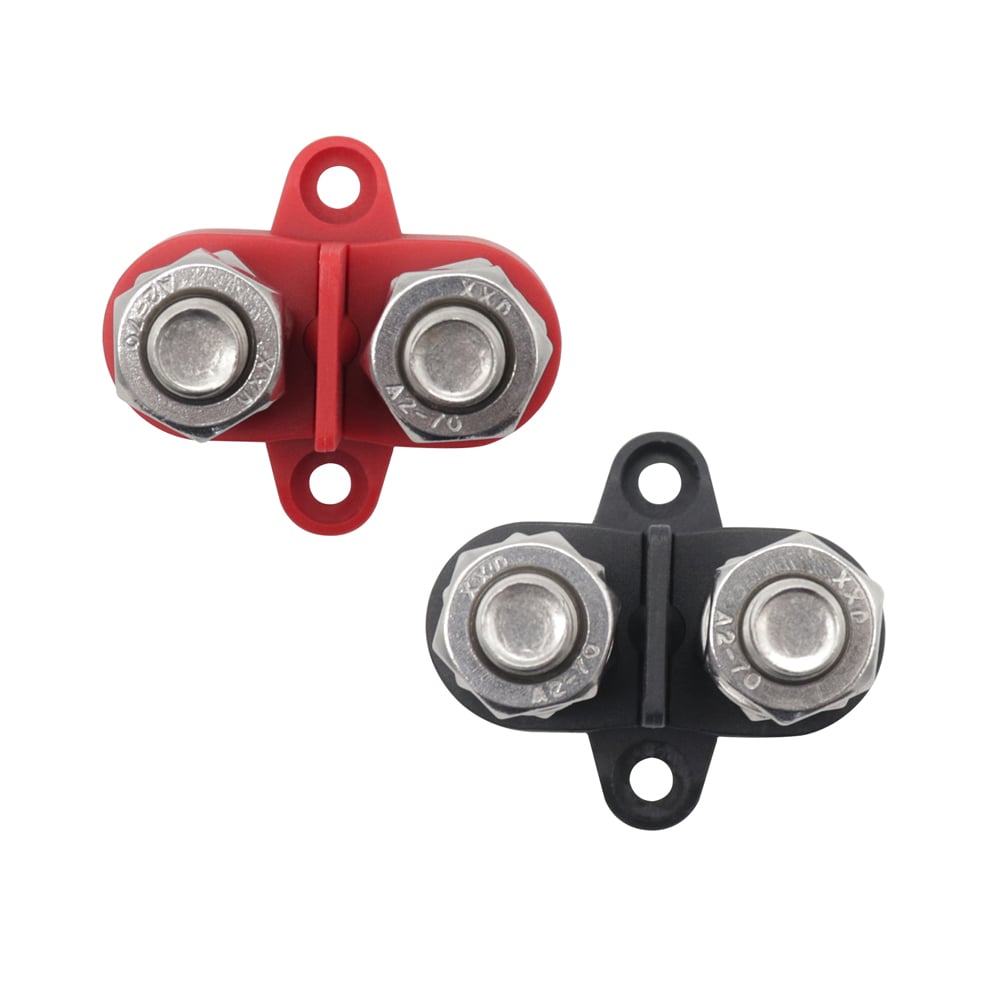

Dual Terminal Stud / 2-fold screw terminal with removable insulation plate 2 x m10 (3/8")
The 2-way connection bolts from Offgridtec (mpn 013355) are ideal for connecting multiple power lines to one source and provide neat wiring. They allow you to connect high power cables (negative and positive) for one or more connections. Suitable for 12v / 24v / 48V DC - motorhomes, trucks, coaches, boats, automobiles and other applications
Selectable sizes
- 2x m8 (5/16'')
- 2x m10 (3/8'')
- 1x m8 (5/16'') / 1x m10 (3/8'')
Features

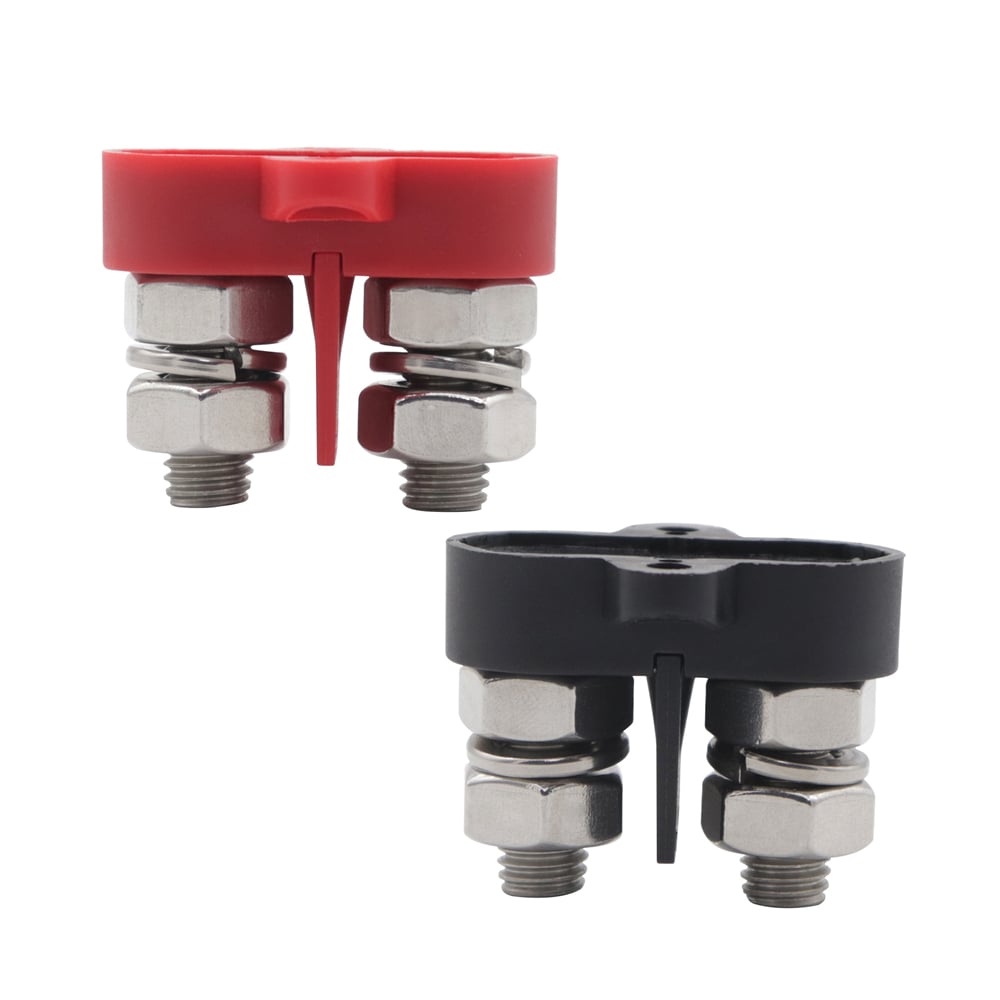

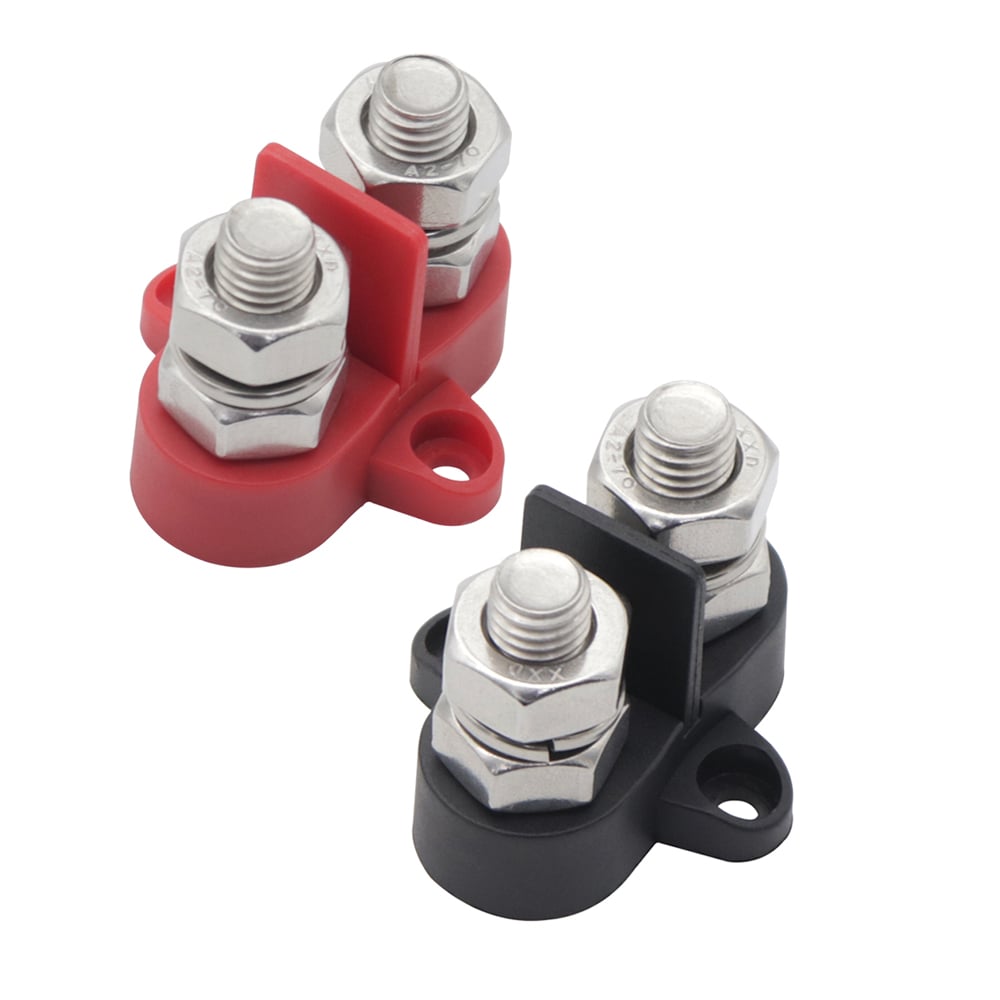

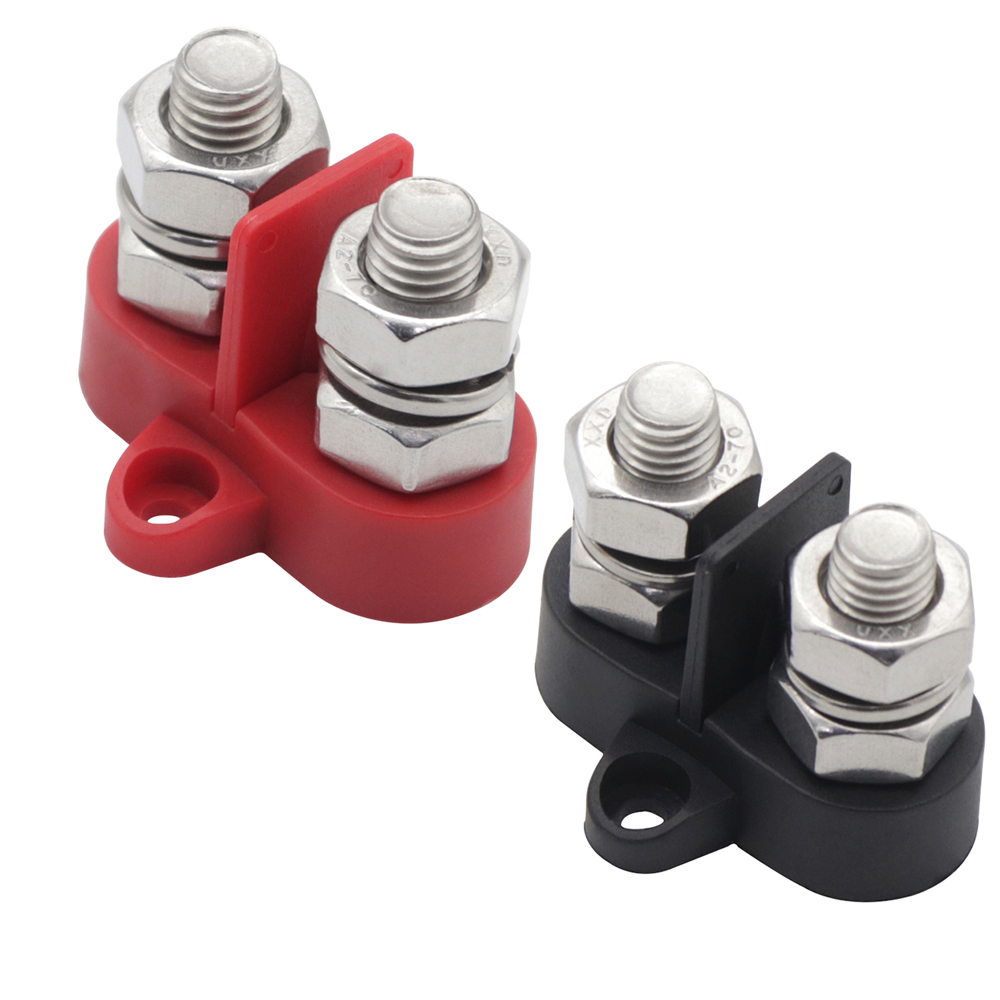

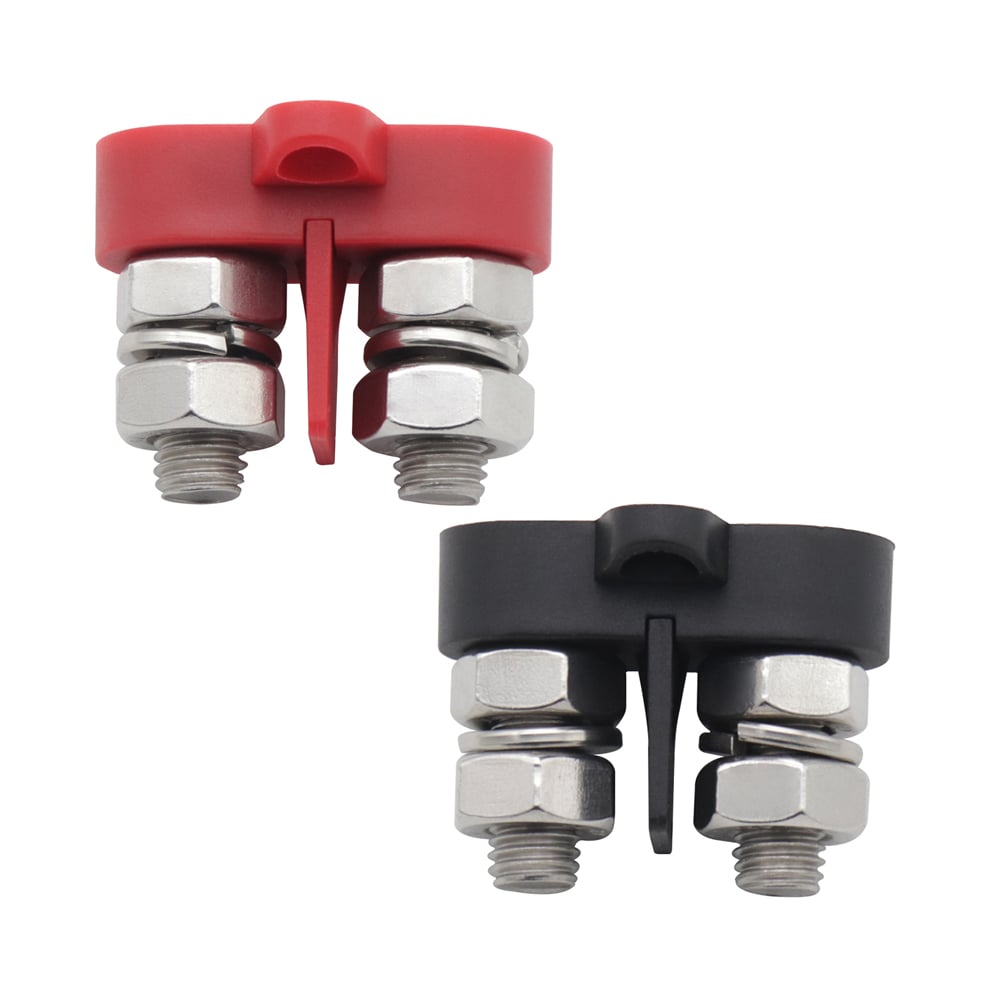

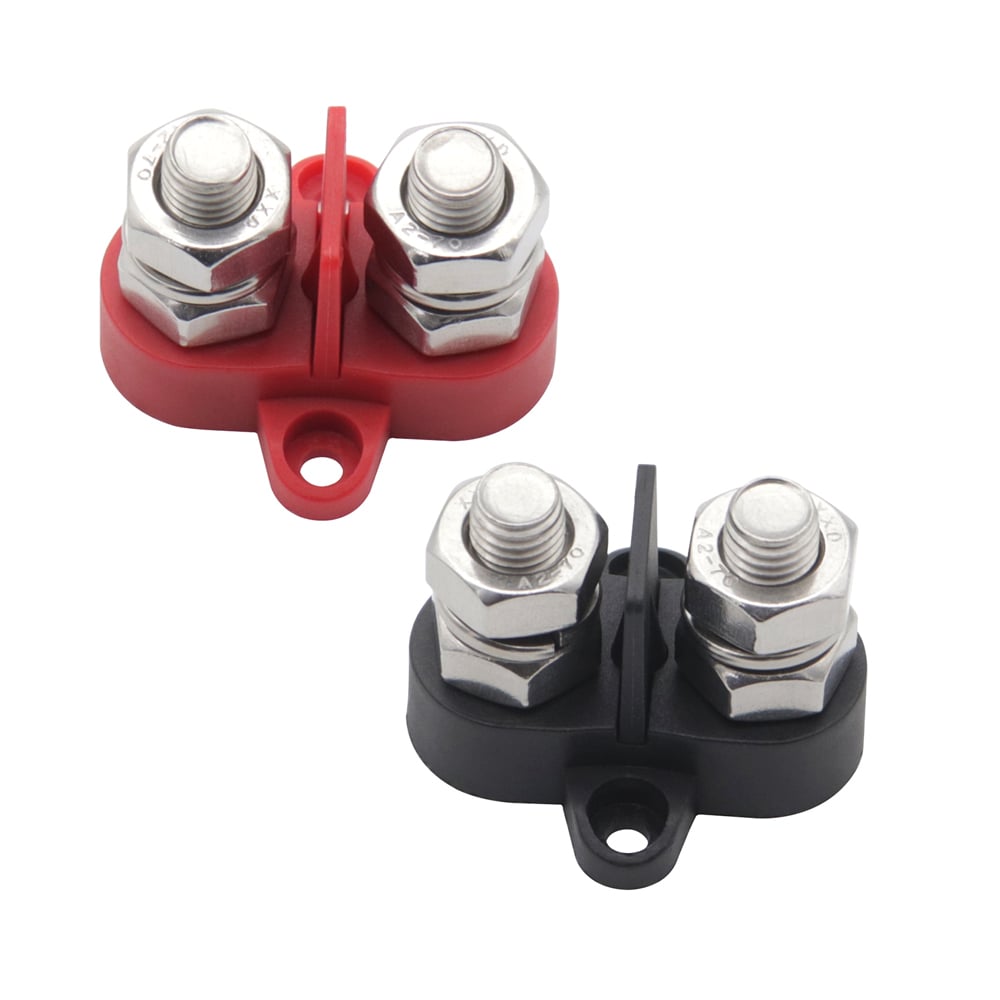

- set of 2 - red and black
- with matching mounting screws
- Max. Current: 150A
- Max. Voltage: 70v DC
- Material bolt: Tinned copper

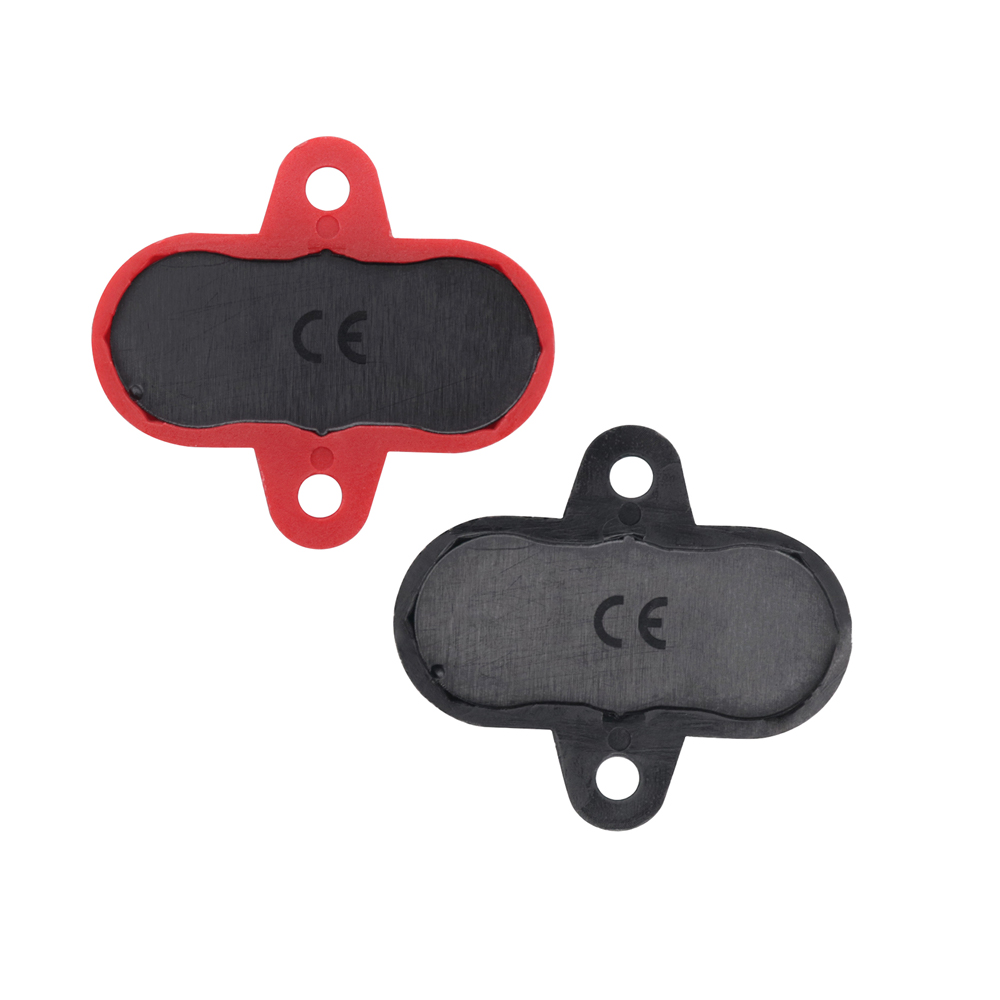

- Material base: Glass fiber reinforced nylon

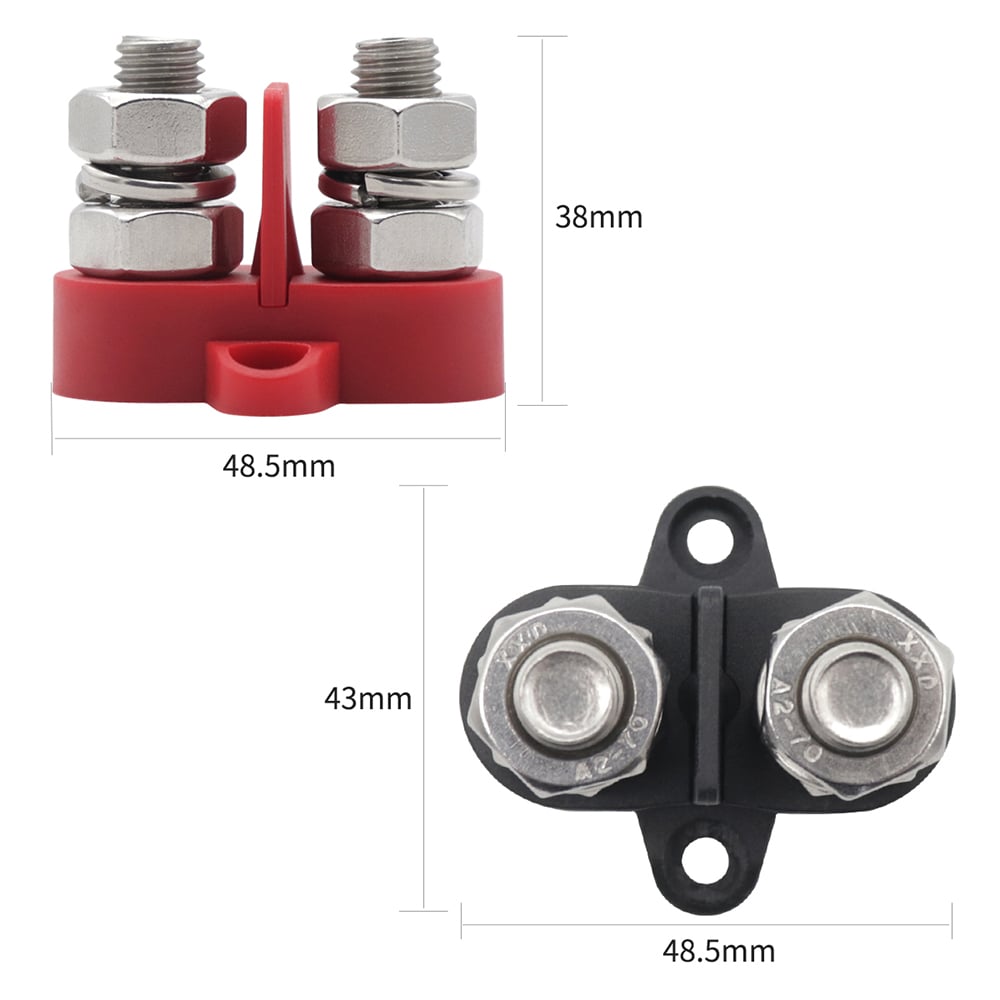

- Dimensions: 48.5 x 43 x 32 (38) mm
- Weight: 70g

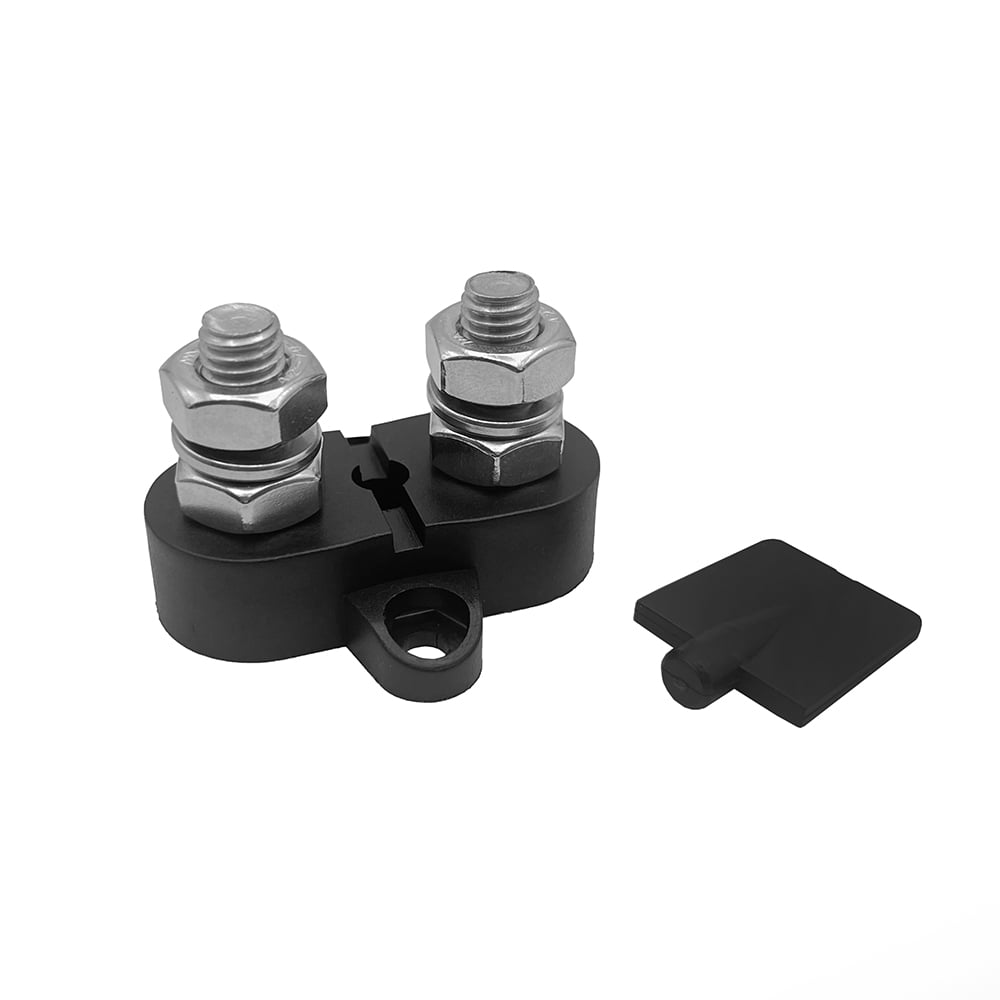

With removable insulation plate
The 2-way connection studs are equipped with a removable insulation plate that ensures safe separation of the two connections. This is particularly important to prevent short circuits and thus increase the safety of the entire cabling. Whether in motorhomes, lorries, coaches, boats or other vehicles - the insulation plate makes a significant contribution to ensuring that the installation remains clean and safe. If necessary, the plate can be removed to provide more flexible connection options.
Scope of delivery:

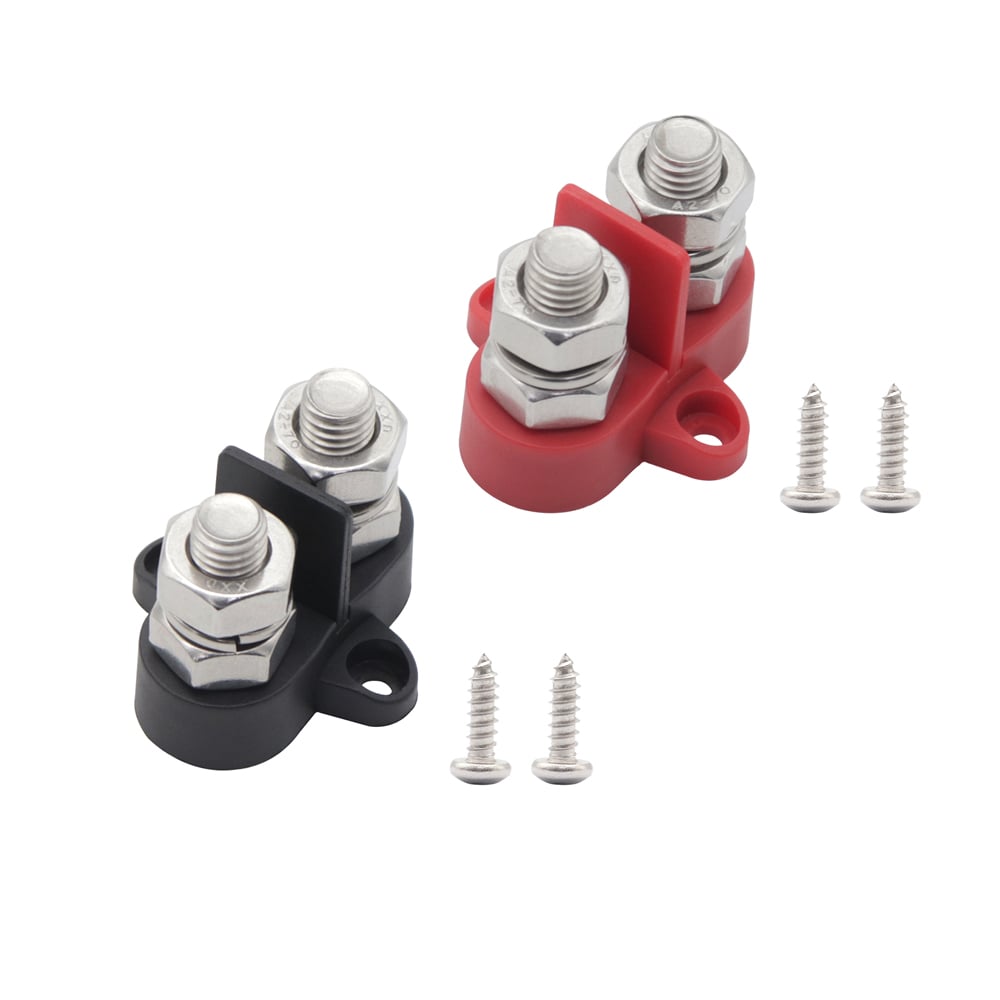

1x Offgridtec connection bolt (set of 2 - red & black)
4x mounting screws
