Offgridtec MEGA fuse 70v for 48v systems

Product number: 8-01-012970-001

40% Rabatt mit Code BLACKWEEKS24 im Warenkorb sichern

Shipped in 1-3 days

Fuse strength

60a

80a

100a

125a

200a

250a

300a

€16.71*

Prices incl. 19% VAT plus shipping costs

€14.04**

Incl. 0% VAT plus shipping costs for orders according to §12 Abs. 3 UStG

Product number: 8-01-012970-001

VAT-exempt delivery possible*

VAT-exempt order for Germany according to § 12 para. 3 UstG and Austria (§ 28 Abs. 62 UStG 1994)

§ Section 12 (3) UstG only applies if you are a private individual and the product is installed in Germany. To benefit from the 0 percent rate, please confirm at the checkout that you are eligible for the zero tax rate according to § 12 para. 3 UstG. Subsequently, the tax rate will automatically be set to zero for eligible items.

Similar Products

VAT-exempt delivery possible*

More versions available

Offgridtec MEGA fuse 70v for 48v systems

Variants from €8.35*

€16.71* €14.04**

The MEGA fuses from Offgridtec (MPN: 012970) are especially suitable for voltages up to a maximum of 70V for 48V systems. They work ideally as a fuse ...

Shipped in 1-3 days

VAT-exempt delivery possible*

More versions available

Offgridtec MEGA fuse 70v for 48v systems

€8.35* €7.02**

The MEGA fuses from Offgridtec (MPN: 012970) are especially suitable for voltages up to a maximum of 70V for 48V systems. They work ideally as a fuse ...

Shipped in 1-3 days

VAT-exempt delivery possible*

More versions available

Offgridtec MEGA fuse 70v for 48v systems

Variants from €8.35*

€9.46* €7.95**

The MEGA fuses from Offgridtec (MPN: 012970) are especially suitable for voltages up to a maximum of 70V for 48V systems. They work ideally as a fuse ...

Shipped in 1-3 days

VAT-exempt delivery possible*

More versions available

Offgridtec MEGA fuse 70v for 48v systems

Variants from €8.35*

€9.46* €7.95**

The MEGA fuses from Offgridtec (MPN: 012970) are especially suitable for voltages up to a maximum of 70V for 48V systems. They work ideally as a fuse ...

Shipped in 1-3 days

VAT-exempt delivery possible*

More versions available

Offgridtec MEGA fuse 70v for 48v systems

Variants from €8.35*

€9.46* €7.95**

The MEGA fuses from Offgridtec (MPN: 012970) are especially suitable for voltages up to a maximum of 70V for 48V systems. They work ideally as a fuse ...

Shipped in 1-3 days

VAT-exempt delivery possible*

More versions available

Offgridtec MEGA fuse 70v for 48v systems

Variants from €8.35*

€10.79* €9.07**

The MEGA fuses from Offgridtec (MPN: 012970) are especially suitable for voltages up to a maximum of 70V for 48V systems. They work ideally as a fuse ...

Shipped in 1-3 days

Addon Products

VAT-exempt delivery possible*

Middle Clamp for Solar Modules (height 35mm)

€1.26* €1.06**

A middle clamp is needed when more than one module is installed on a profile rail. Features: material: aluminium opening for M8 screws space between ...

Shipped in 1-3 days

VAT-exempt delivery possible*

M10 x 30mm VA Screw

€0.50* €0.42**

M10 hex screw fitting for various applications and systems in the field of module mounting, for example profile rails. Material: VA stainless steelTyp...

Shipped in 1-3 days

VAT-exempt delivery possible*

Offgridtec 3m 6mm² MC-4 Connecting Cable Plug / Socket Extension

€6.13* €5.15**

Content: 3 Meter (€2.04* / 1 Meter)

3m 6mm² MC4 extension cable (MC4 plug and socket). The cable is manufactured in our factory in Lower Bavaria. The plugs themselves are also German ori...

Shipped in 1-3 days

VAT-exempt delivery possible*

Offgridtec 5m 6mm² MC-4 Connecting Cable Plug / Socket Extension

€10.53* €8.85**

Content: 5 Meter (€2.11* / 1 Meter)

5m 6mm² MC4 extension cable (MC4 plug and socket). The cable is manufactured in our factory in Lower Bavaria. The plugs themselves are also German ori...

Shipped in 1-3 days

VAT-exempt delivery possible*

Victron 3m VE.Direct Cable - connection cable

€16.18* €13.60**

Content: 3 Meter (€5.39* / 1 Meter)

This 3m Victron VE.Direct Cable (ASS030530230) is used to connect devices for communication via the VE.Direct-port, for example BlueSolar charge contr...

Shipped in 2-5 days

VAT-exempt delivery possible*

Victron SmartSolar mppt 250/60-Tr

€448.09* €376.55**

The Smartsolar mppt 250/60-tr from victron Energy (mpn scc125060210), is part of the latest generation of smart solar controllers from the premium Dut...

Shipped in 1-3 days

VAT-exempt delivery possible*

More versions available

Victron Mega-Fuses 60-500A max 32V

Variants from €9.22*

€12.14* €10.20**

The MEGA fuses from Offgridtec (MPN: vk16) are especially suitable for operating voltages up to a maximum of 32V. They are ideal for use as a fuse on ...

Shipped in 1-3 days

VAT-exempt delivery possible*

Pylontech Battery connection cable set Pylontech to inverter 2 x 2.0m 25mm² Amphenol to m8

€27.05* €22.73**

Content: 2 Meter (€13.53* / 1 Meter)

The Pylontech battery connection cable set (mpn bw0us3000bal0002) includes 2 x 2 meter cables (plus/minus) with a cross section of 25mm² each and a CA...

Shipped in 1-3 days

VAT-exempt delivery possible*

VE.Can to CaN bus bms type a cable 1.8m

€15.17* €12.75**

Content: 1.8 Meter (€8.43* / 1 Meter)

This VE.Can to CaN bus bms cable from Victron (mpn ass030710018) is needed to connect a CaN bus capable battery, which is not from Victron, to a Victr...

Shipped in 2-5 days

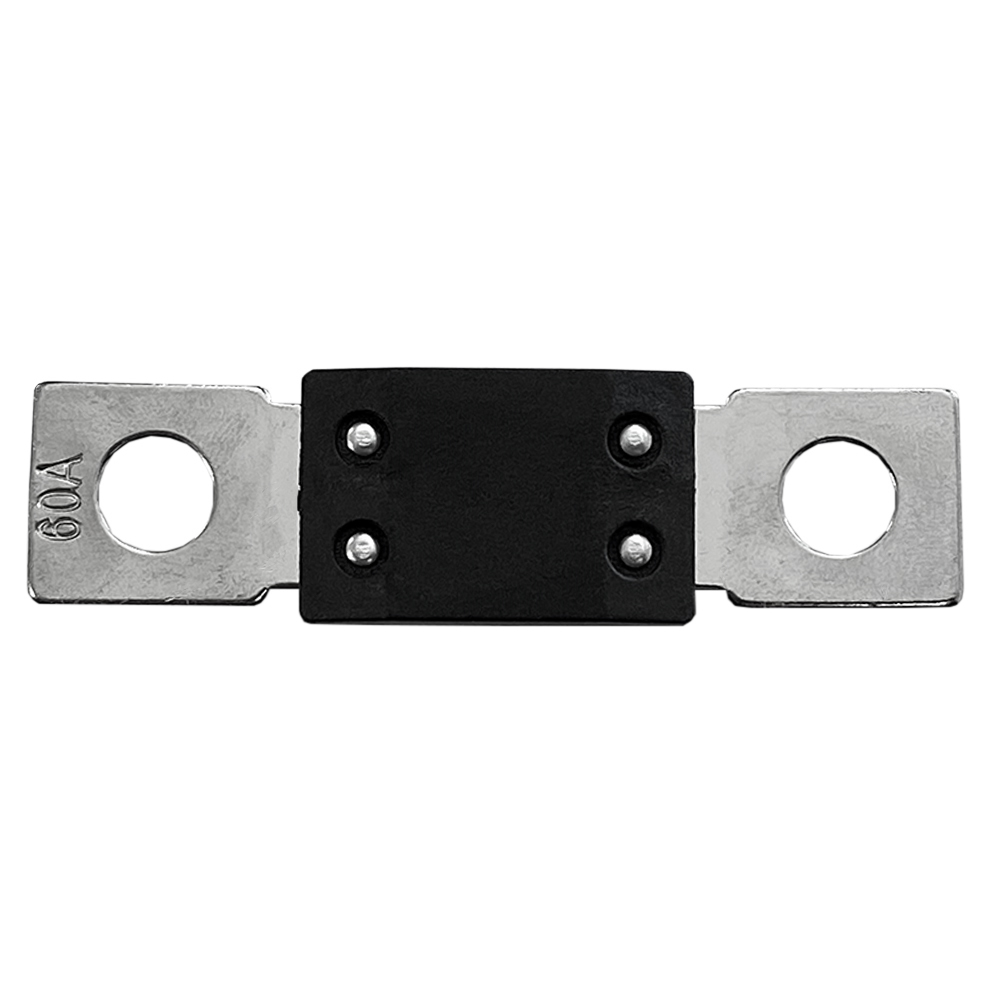

The MEGA fuses from Offgridtec (MPN: 012970) are especially suitable for voltages up to a maximum of 70V for 48V systems. They work ideally as a fuse on the battery cable of voltage converters and inverters or charge controllers with high charging currents. They offer a high level of safety and functionality. In addition, there is also a suitable fuse holder from Offgridtec, which you can use to integrate your fuses quickly and professionally into your on-board network. Regular maintenance in the form of a visual and contact check is an advantage.

Highlights of the MEGA fuses

Very low contact resistance for high system efficiency
Embedded in nylon housing to protect against sparking
For a maximum board voltage of 70VDC
Operating temperature range: -40°C - +120°C
Housing material: Nylon + copper (nickel plated)
Element material: Copper
Tightening torque: 35Nm
Certification: RoHS, UL

Selectable amperage:

60A
80A
100A
125A
200A
250A
300A

Scope of delivery

5x MEGA fuse (current selectable)

Offgridtec_MEGA-Sicherung_60A-300A_Datenblatt.pdf Download

Offgridtec_MEGA-Sicherung_60A-300A_Datasheet.pdf Download

Offgridtec_MIDI-Fuse_Sicherung_Halter_Declaration_of_Conformity.pdf Download

Your name / alias

Your eMail

Product question

Publish question

Fields marked with asterisks (*) are required.

I have read and accepted the privacy notice.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Asked from Sven Zimmermann at 20.09.2022

Ist diese Sicherung passend für den Einbau in den Victron Lynx Distributor?

Ja, Sie können unsere MEGA-Sicherungen in einem Victron Lynx Distributor verwenden.
