Offgridtec HomePremium M UPS solar system 13500Wp US5000 19.2kWh 3-phase

Extremely Versatile Complete Package

The Offgridtec® HomePremium series is a true all-rounder at an unbeatable price-performance ratio. In addition to serving as a UPS backup solution with the option of grid or battery priority, this PV system can also be used as a self-consumption system. The performance capability of this solar plant knows hardly any limits—depending on personal needs and upon request, extensions, both on the module and battery side, are possible. If a higher output power is required at the inverter, additional identical units can also be connected for increased performance.

Along with the power electronics, the storage system, and the solar modules, all components required for connection are included in the delivery scope, except for the solar module mounts, which must be ordered separately. All other components are plug and play—this means no tedious plug assembly or similar—just connect and done. Depending on the selection, the system is delivered with or without a power meter.

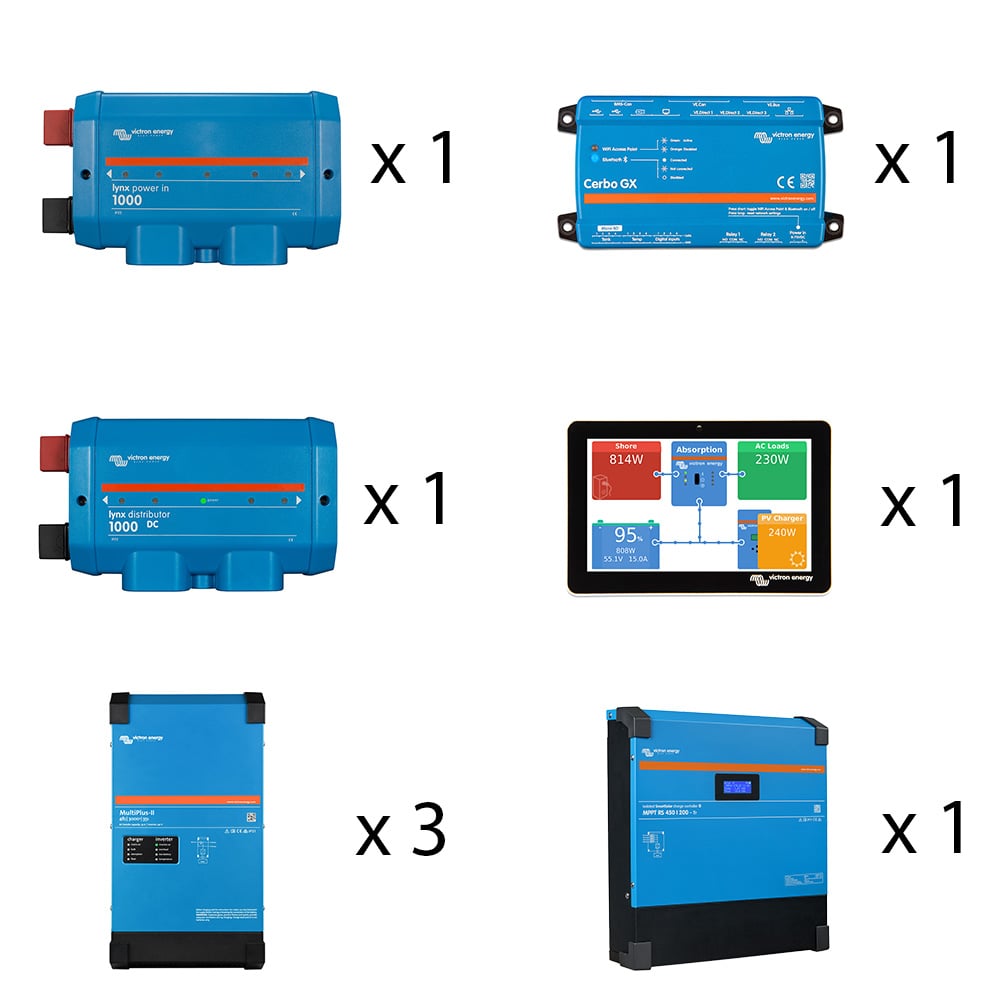

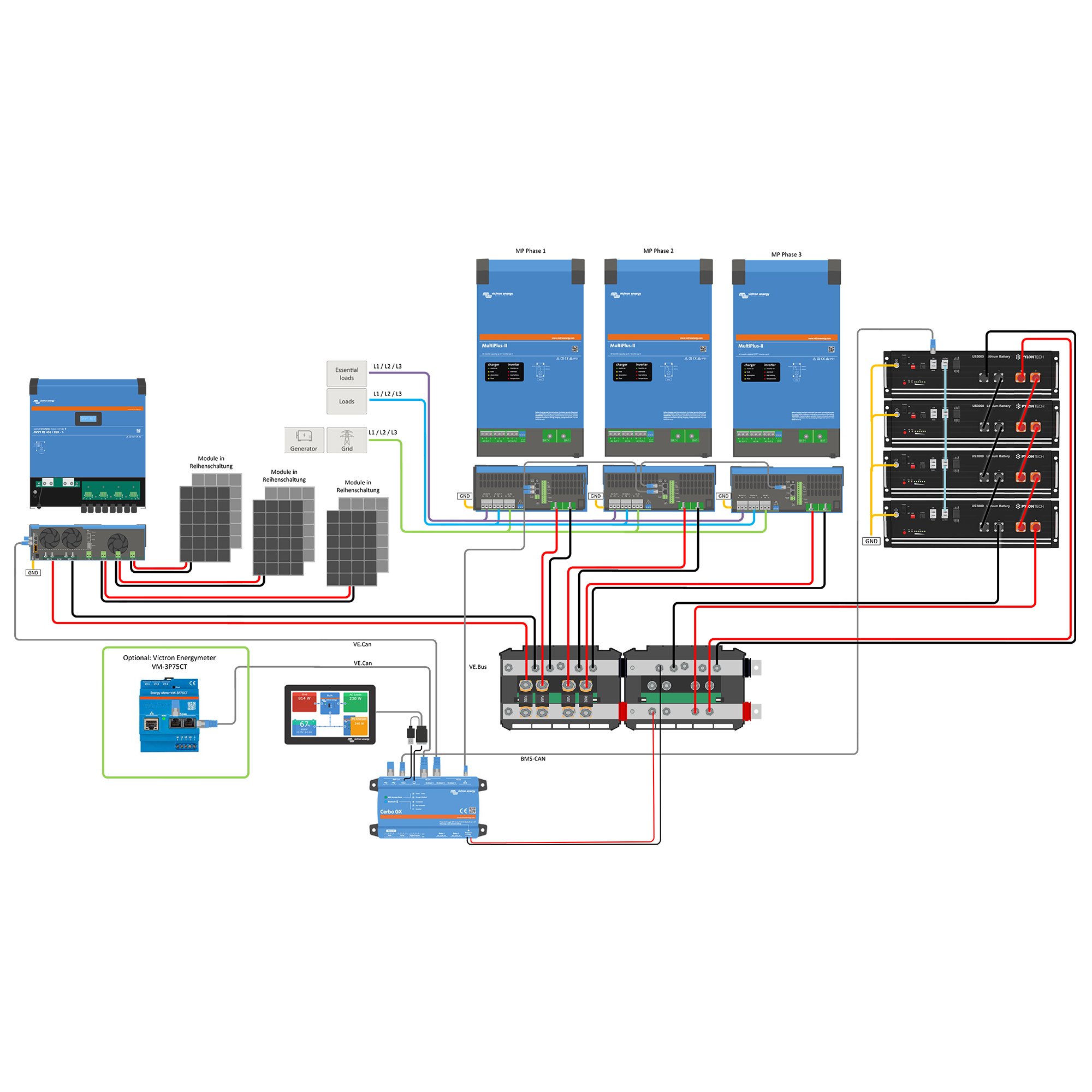

Parts List – What's Included

• 30x Luxen Solar 450W Bifacial TopCon N5 Full Black Solar Modules
• 4x 4.8kWh Pylontech US5000 LiFePo4 Storage Batteries
• 1x Victron Energy MPPT SmartSolar Charge Controller 450/200 48V
• 3x Victron PMP482505010 MultiPlus-II 48/5000/70-50A
• 1x Cerbo GX MK2 + 1x GX Touch 50 by Victron Energy - the communication center of your system
• 1x Victron Energy Lynx Distributor for DC distribution and protection
• 1x Victron Energy Lynx Power In
• 3x 10m Offgridtec® Professional Connection Cable 6mm² Solar Module to Controller for connecting solar modules to the charge controller
• 2x Pylontech Battery Connection Cable Set Pylontech to Inverter 2 x 2.0m 25mm² Amphenol to M8
• 4x 1m Battery Cable 50mm² M8 Lugs on Both Sides
• 3x Offgridtec 10m MC4 to MC4 Connection Cable 6mm² red/black
• 1x VE.Can to CAN-Bus BMS Type A Cable 1.8m ASS030710018 for connecting the Cerbo GX to the storage
• 2x 3m Victron RJ45 UTP Cable for connecting the MultiPlus to the Cerbo GX
• 3x Mega Fuse 125A / 70V
• 1x Mega Fuse 250A / 70A
• 2x 0.9m Victron RJ45 UTP Cable
• 1x Pylontech Battery Cabinet 024U

If Power Meter Selected:

• 1x Victron VM-3P75CT Energy Meter
• 1x Victron 5m RJ45 UTP Cable

Extended Use of Your HomePremium System

The delivery of the HomePremium system is optionally available with or without the Victron power meter and cable, with the requirement that an energy meter with connection cable is mandatory for the construction of an energy storage system.

With this power meter, you can perform a grid-parallel installation and monitor your energy consumption or control your energy costs. Thanks to phase compensation, you could even use the 3-phase meter for single-phase systems. This allows for seamless integration of decentralized energy sources and consumers into the existing power grid without any issues.

Luxen Solar 450W Full Black Solar Module

The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as LECO N-TOPCon cell technology and a 96-cell half-layout to maximize efficiency. Additionally, the SMBB Half-Cut cell technology is employed to optimize performance.

Half-Cell Technology

In half-cell technology ("Half-Cut"), conventional silicon cells are halved using a laser. The resulting halves are then connected in parallel, which, by reducing resistance losses, leads to increased performance of the solar module.

Bifacial Cells

Bifacial modules offer a decisive advantage through their transparent backsides and special cell technology – they also utilize reflected light. This results in significantly increased energy yield, making these modules a particularly efficient choice for your solar system.

Technical Data

• maximum power: 450W
• Module voltage (Vmp): 30.08V
• max. current (Imp): 14.96A
• open-circuit voltage (Voc): 35.21V
• short-circuit current (Isc): 16.02A
• module efficiency: 22.52%
• max. operating voltage: 1500V DC
• operating temperature range: -40°C to +85°C
• dimensions: 1762 x 1134 x 30mm
• cells: 96 (6x16)
• protection class: IP68
• connection: MC4
• weight: 24kg

LiFePo4 Storage Technology by Pylontech – Proven, Reliable, Safe

The US3000C storage battery from Pylontech is a next-generation lithium iron phosphate battery that offers maximum safety and lifespan. Each module is equipped with a battery management system (BMS) for comprehensive protection against deep discharge, overcharging, as well as damage from high currents or extreme temperatures. Short circuits and reverse polarity are also excluded.

Features of the Pylontech US3000C Storage Modules

• Extremely cycle-resistant – over 6000 cycles at 95% DoD (depth of discharge per cycle)
• Absolutely self-protecting due to integrated shutdown (BMS)
• High charge and discharge power of up to 5KW per module
• High storage density
• Low weight and compact design
• Absolutely maintenance-free and easy to install

The Heart of the System – the Victron MultiPlus-II 48/5000

The MultiPlus-II 48/5000/70-50 from Victron Energy combines classic MultiPlus components with an external current sensor and integrated anti-islanding function. This expands the PowerControl and PowerAssist functionalities to 100A and enables use in ESS applications.

The configuration options at the MultiPlus-II are extremely versatile, just as its application possibilities. To ensure that the system, as delivered, lives up to its "plug and play" designation, we have already configured it with the necessary settings for you – thus the system is immediately ready for use without further configuration.

Performance Features and Properties of the MultiPlus-II 48/5000

• PowerControl and PowerAssist – increases grid or generator power
• Built-in anti-islanding function and connection option for an external current sensor (optional)
• Can be used as a backup device in grid-connected systems
• VE.Bus interface for parallel and three-phase operation
• Remote monitoring and system integration
• Parallel and three-phase operation
• Approved according to VDE-AR-N 4105

Technical Data

• 5000 W power with non-linear load - 4000 W continuous load - 9000 W peak power
• For 48 V battery voltage, 50 A transfer switch, and 70 A battery charger
• Output voltage: 230 VAC, frequency: 50 Hz
• Max. efficiency: 95%
• Protection class: IP22

Maximum Flexibility with Two AC Outputs

The MultiPlus-II offers uninterrupted operation by automatically taking over the supply of consumers in the event of grid outages or interruptions from land/generator power. The switching occurs in less than 20 milliseconds to ensure continuous operation of electronic devices. A second output provides power only when AC is present at the MultiPlus-II input. This allows the connection of consumers such as a water heater, which should not be drained from the battery.

Configuration

The MultiPlus-II is delivered unconfigured as standard. You can find the configuration guide for the system in the download section. If you wish for a pre-configuration by us, we can gladly handle this for you at an additional cost. For this, you can add the "Offgridtec Pre-configuration" item to your shopping cart during the ordering process. In this case, the shipping may take 3-5 business days longer until the configuration is completed.

Victron Energy Cerbo GX MK2 and GX Touch 50 – the Communication Center of Your System

The latest development in system monitoring from Victron Energy allows for easy control and configuration of your system. Complemented by the GX Touch 50 – a waterproof 5-inch touchscreen – you always have an overview of your system parameters. The features of the Cerbo allow you to perfectly monitor and control the system while maximizing system performance in an unprecedentedly easy manner.

Victron Energy has developed a new system monitoring tool that allows you to easily control and configure your system. The GX Touch 50, a waterproof 5-inch touchscreen, provides a clear overview of your system parameters. With the Cerbo module, you can accurately monitor your system and maximize performance. It is compatible with both solar charge controllers and grid-tied inverters. Mounting material and connection cables are included in the delivery scope. Thanks to the Bluetooth function of the GX Touch 50, access to your system is even faster and easier. An optional wall mount is available.

Victron Remote Portal

The Victron Remote Portal (VRM) is a free Victron Energy service that allows you to remotely read your system's data and configure the devices accordingly. This way, even in your absence, you have full control and overview of all relevant system parameters. The functionality is available online as a demo version and is perfectly suitable to get a first impression - https://vrm.victronenergy.com/landingpage

Safety Note: Have this complete system installed and commissioned only by a qualified electrician.
