Offgridtec HomePremium S UPS solar system 8200Wp US3000 14kWh 3-phase

Extremely Versatile Complete Package

The Offgridtec® HomePremium Series is a true all-rounder at an unbeatable price-performance ratio. In addition to being used as a UPS backup solution with the option of grid and battery priority, this PV system can also be utilized as a self-consumption system. The capabilities of this solar installation are virtually limitless – depending on personal needs and upon request, expansions are possible, both in terms of modules and batteries. If a higher output is required at the inverter, additional similar devices can also be connected for performance enhancement.

Alongside the power electronics, storage, and solar modules, all necessary components for installation are included in the delivery, with the exception of the solar module brackets, which must be ordered separately. All other components are plug and play – meaning no tedious connector assembly is required – just connect and you're done. Depending on the selection, the system is delivered with or without a power meter.

Parts List – What's Included

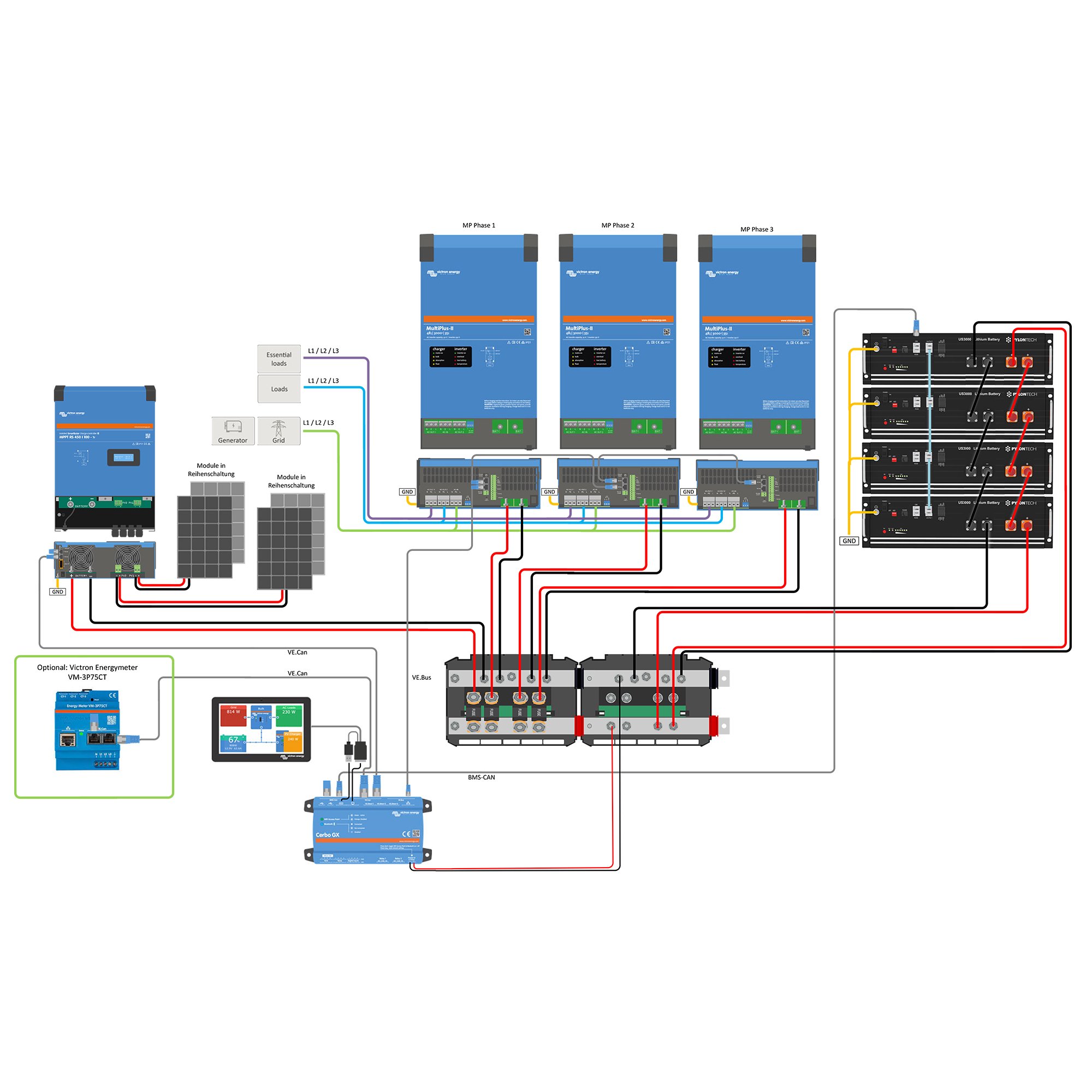

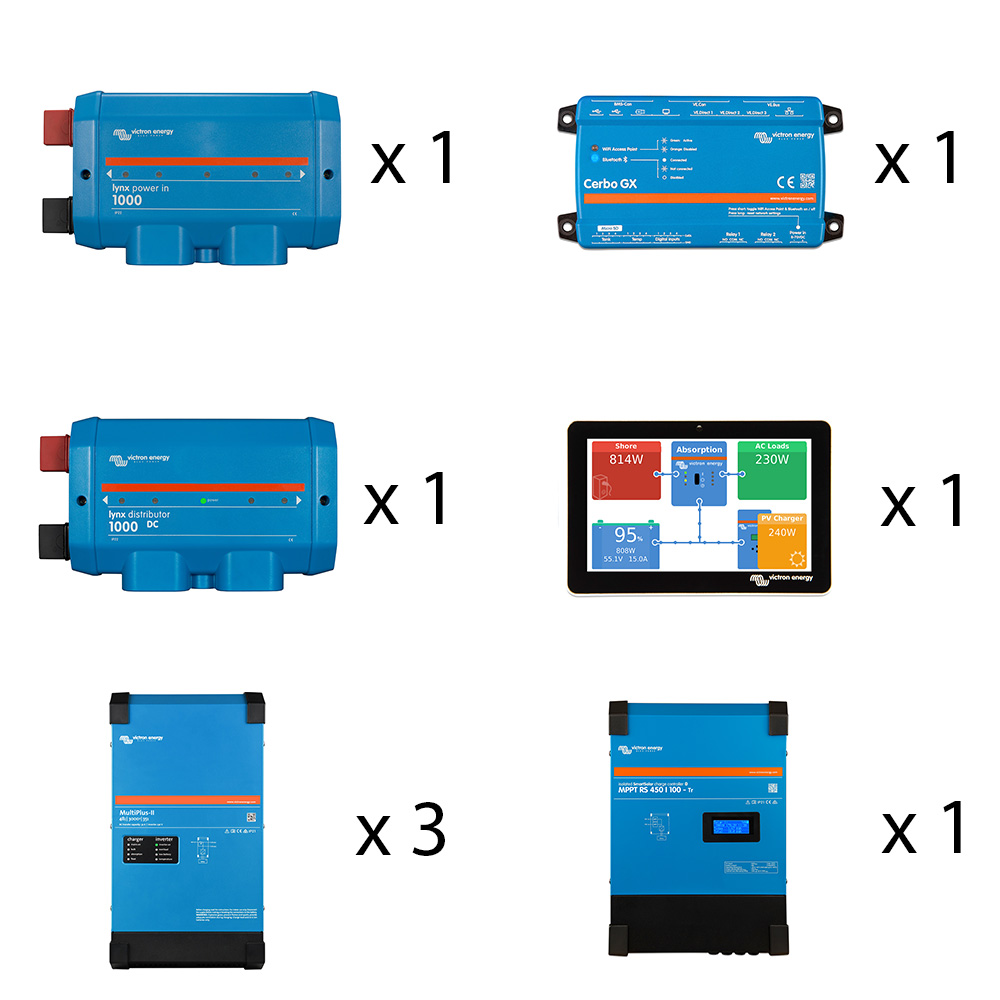

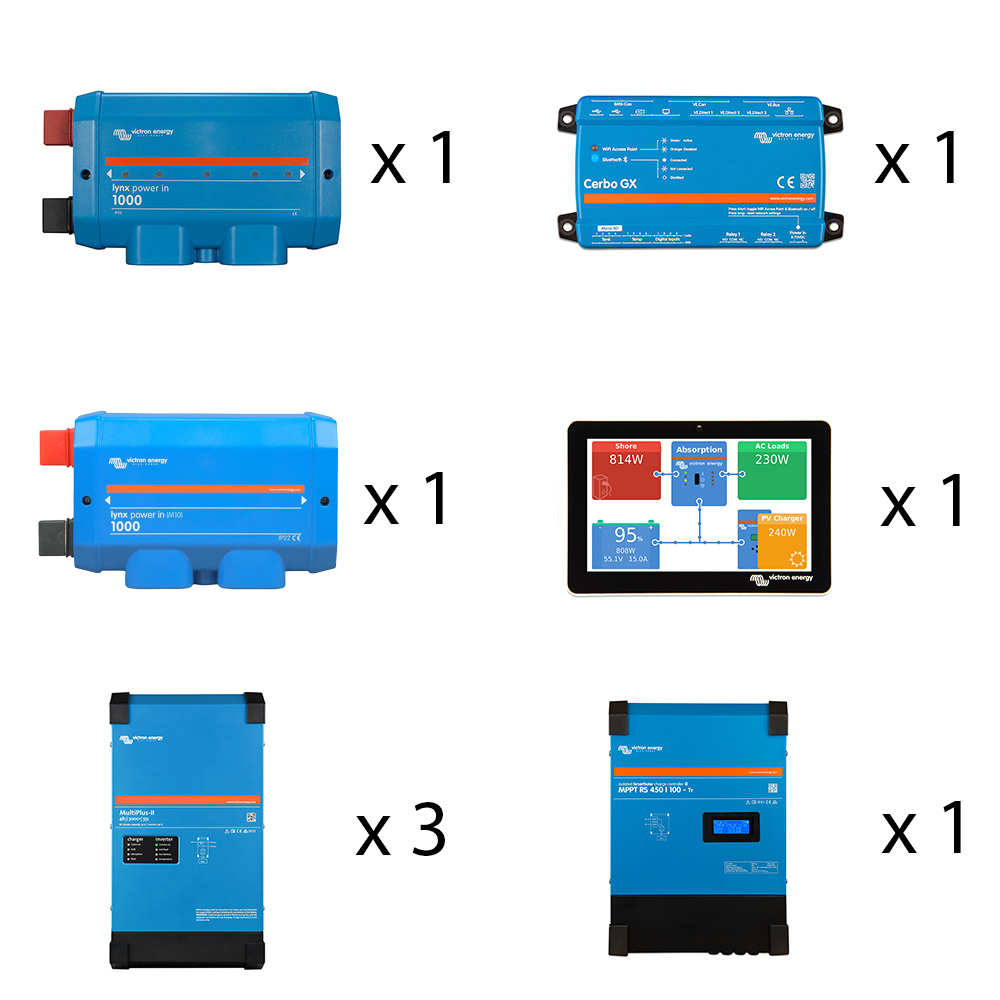

• 20x Luxen Solar 430W Full Black Solar Module Luxneri Series 5
• 4x 3.5kWh Pylontech US3000C LiFePo4 Storage Batteries
• 1x Victron Energy MPPT SmartSolar Charge Controller 450/100 48V
• 3x Victron Energy 48/3000 MultiPlus-II Inverter MPN PMP 482305010
• 1x Cerbo GX MK2 + 1x GX Touch 50 from Victron Energy - the communication hub of your system
• 1x Victron Energy Lynx Distributor for DC distribution and protection
• 1x Victron Energy Lynx Power In

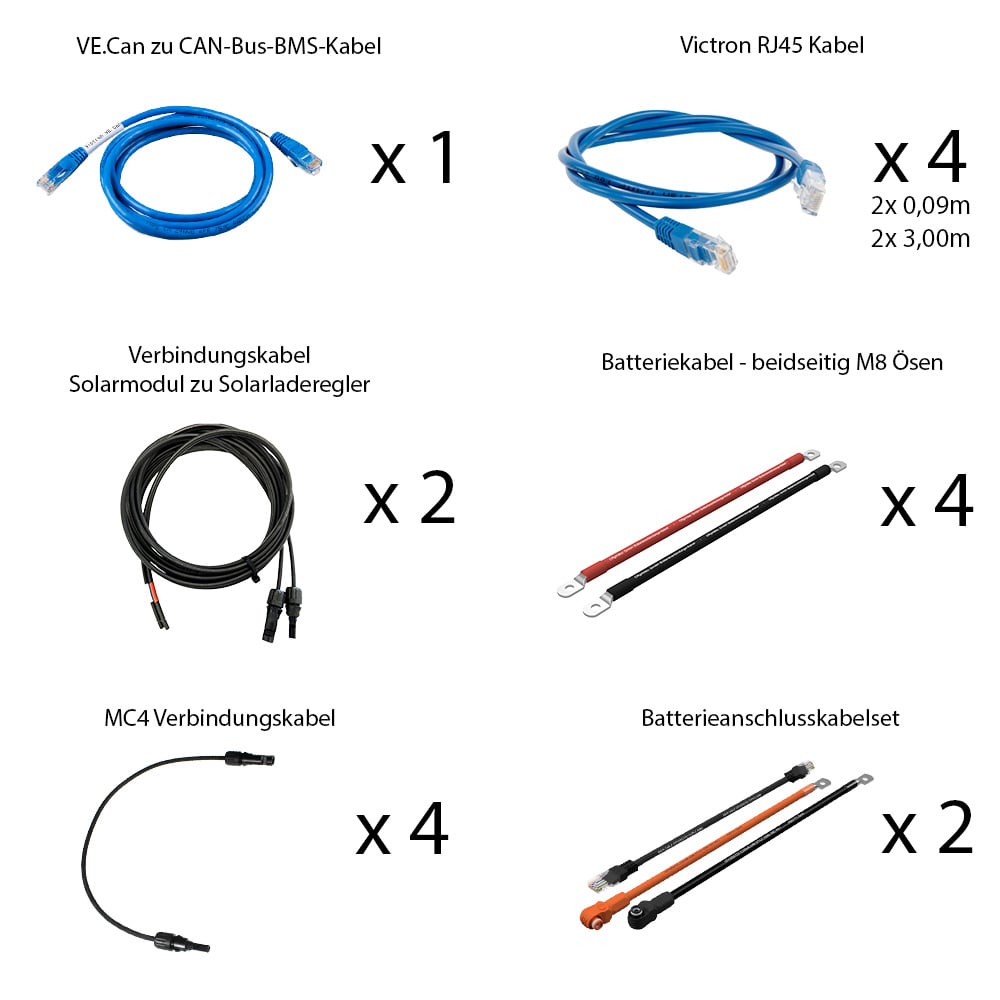

• 2x 10m Offgridtec® Professional Connection Cable 6mm² Solar Module to Charge Controller
• 2x Pylontech Battery Connection Cable Set Pylontech to Inverter 2 x 2.0m 25mm² Amphenol to M8
• 4x 1m Battery Cable 35mm² Double-sided M8 Lugs
• 2x 10m 6mm² MC4 Connection Cable
• 1x VE.Can to CAN Bus BMS Type A Cable 1.8m ASS030710018 for connecting the Cerbo GX MK2 with the battery
• 2x 3m Victron RJ45 UTP Cable to connect the MultiPlus with the Cerbo GX
• 4x Mega Fuse 125A / 70V
• 2x 0.9m Victron RJ45 UTP Cable
• 4x Pylontech Brackets for US3000C Life PO4 Battery

If power meter selected:

• 1x Victron VM-3P75CT Energy Meter
• 1x Victron 5m RJ45 UTP Cable

Extended Use of Your HomePremium System

The delivery of the HomePremium system can be chosen with or without Victron power meter and cables, where establishing an Energy Storage System requires a power meter with connection cable.

With this power meter, you can perform a grid-parallel installation and subsequently monitor your energy consumption and control your energy costs. Thanks to phase compensation, you can even use the 3-phase meter for single-phase systems. This allows seamless integration of decentralized energy sources and consumers into the existing power grid.

Luxen Solar 430W Full Black Solar Module

The monocrystalline and bifacial 430W Full Black Solar Module from the N5 Series by Luxen Solar impresses with a combination of various technologies, such as N-TOPCon cell technology and a 108 half-cell layout. In the production process, the SMBB Half-Cut cell technology was also applied to enhance performance. This state-of-the-art solar module represents the pinnacle of solar technology, delivering impressive output and low Levelized Cost of Energy (LCOE).

Features

• N-TOPCon cell technology
• SMBB Half-Cut cell technology
• Low BOS & LCOE
• Bifacial cell module technology
• Excellent Anti-PID and Low LID performance
• 3 bypass diodes
• 30-year power guarantee and 15-year product guarantee
• High cell efficiency of over 22%

Half-Cell Technology

In Half-Cell technology, conventional silicon cells are halved using a laser. The resulting halves are then connected in parallel, which reduces resistance losses and increases the module's power output.

Bifacial Cells

Bifacial modules offer a significant advantage through their transparent backsides and specialized cell technology – they utilize reflected light as well. This leads to considerably increased energy yields, making these modules a particularly efficient choice for your solar installation.

Technical Data

• maximum power: 430W
• module voltage (Vmp): 32.04V
• max. current (Imp): 13.42A
• open-circuit voltage (Voc): 38.96V
• short-circuit current (Isc): 14.13A
• module efficiency: 22.02%
• dimensions: 1722 x 1134 x 30 mm
• operating temperature range: -40°C to +85°C
• cells: 108 (6x18)
• max. operating voltage: 1500V DC
• weight: 23.5kg

LiFePo4 Storage Technology by Pylontech – Proven, Reliable, Safe

The US3000C storage battery from Pylontech is a next-generation lithium iron phosphate battery that offers maximum safety and longevity. Each module is equipped with a battery management system (BMS) for comprehensive protection against deep discharge, overcharge, and damage from high currents or extreme temperatures. Short circuits and polarity reversal are also prevented.

Features of the Pylontech US3000C Storage Modules

• Extremely cycle-resistant – over 6000 cycles at 95% DoD (Depth of Discharge per cycle)
• Absolutely safe due to integrated protection cutoff (BMS)
• High charge and discharge capacity of up to 5KW per module
• High storage density
• Low weight and compact design
• Completely maintenance-free and easy to install
• 10-year warranty

The Heart of the System – The Victron MultiPlus-II 48/3000

The MultiPlus-II 48/3000/70-50 from Victron Energy (MPN PMP482305010) combines classic MultiPlus components with an external current sensor and integrated anti-islanding functionality. This expands the PowerControl and PowerAssist functions to 100A, allowing for ESS (Energy Storage System) applications.

With an inverter output of 3000 W (2400 W under linear load) and a 48 V battery charger with a 35 A output, this MultiPlus-II is optimally sized. A 32 A transfer switch allows for quick switching between AC connections for maximum flexibility.

Performance Features and Properties of the MultiPlus-II 48/3000

• PowerControl and PowerAssist – increase grid or generator power
• Integrated anti-islanding function and capability for external current sensor connection (optional)
• Can be used as a backup device in grid-connected systems
• VE.Bus interface for parallel and three-phase operation
• Remote monitoring and system integration
• Approved according to VDE-AR-N 4105

Technical Data

• 3000 W output under non-linear load - 2400 W continuous load - 5500 W peak load
• for 48 V battery voltage, 32A transfer switch and 35A battery charger
• output voltage: 230 VAC, frequency: 50 Hz
• Max. efficiency: 95%
• Protection class IP22

Maximum Flexibility with Two AC Outputs

The MultiPlus-II offers uninterrupted operation by automatically taking over the supply of consumers in the event of power outages or interruptions to the land/generator power. The switch occurs in less than 20 milliseconds to ensure continuous operation of electronic devices. A second output provides power only when AC is present at the MultiPlus-II's input. This allows for the connection of consumers such as a water heater, which should not be discharged by the battery.

Configuration

The MultiPlus-II is delivered unconfigured by default. You can find the system configuration instructions in the download section. If you wish for pre-configuration by us, we can gladly take care of that for you for an additional fee. For this, please add the linked item "Offgridtec Pre-configuration" to your shopping cart during the ordering process. In this case, shipping may take an additional 3-5 business days until the configuration is completed.

Victron Energy Cerbo GX MK2 and GX Touch 50 – The Communication Hub of Your System

The latest development in system monitoring from Victron Energy enables you to effortlessly control and configure your system. Accompanied by the GX Touch 50 – a waterproof 5-inch touchscreen – you can always have an overview of your system parameters. The functions of the Cerbo allow for perfect monitoring and control of the system while maximizing performance in an unprecedentedly easy manner.

The Cerbo module is compatible with both solar charge controllers and grid-connected inverters. Mounting materials and connection cables are included. The Bluetooth function of the GX Touch 50 allows for even faster and easier access to your system. An optional wall mount is available.

Victron Remote Portal

The Victron Remote Portal (VRM) is a free service provided by Victron Energy that enables you to remotely read the data from your system and configure the devices accordingly. This way, you always have full control and an overview of all relevant system parameters, even when you are away. The functionality is available online as a demo version, making it ideal for getting a first impression - https://vrm.victronenergy.com/landingpage

Safety Notice: Have this complete system installed and commissioned only by a qualified electrician.
