The hvm battery box from byd offers you a usable storage capacity of at least 8.3kWh and can easily be expanded to a maximum capacity of 22.1kWh per tower with additional high-voltage battery modules. To achieve the maximum capacity of 66.2kWh, up to 3 identical hvm towers can be connected directly in parallel. It is also possible to expand the system later by adding further hvm modules or parallel hvm towers. This makes it ideal for operating power-intensive consumers and supports you even in the event of a power failure thanks to the integrated emergency power function, as well as in off-grid operation. The hvm series is once again equipped with state-of-the-art LFP battery cells, which are known for their longevity and safety.
- Powerful emergency/standby power
- Off-grid function
- Patented modular plug-in design
- Good scalability
- Award-winning efficiency thanks to true series connection
- Compatible with leading 1- and 3-phase inverters
- Cobalt-free lithium iron phosphate battery (LFP)
- Highest safety standards according to vde2510-50 / iec62619 / cec / ce / UN38.3
The byd hvm set contains:
- byd hvm 2.76kWh modular high-voltage battery module (3-8x depending on selection)
- 1x byd HVS/hvm battery control unit+ base
A Compatibility list for byd with over 30 inverter models, including Fronius, GoodWe, SMA and Sungrow, for example, can be found as a download in our appendices (Compatible Inverter List).

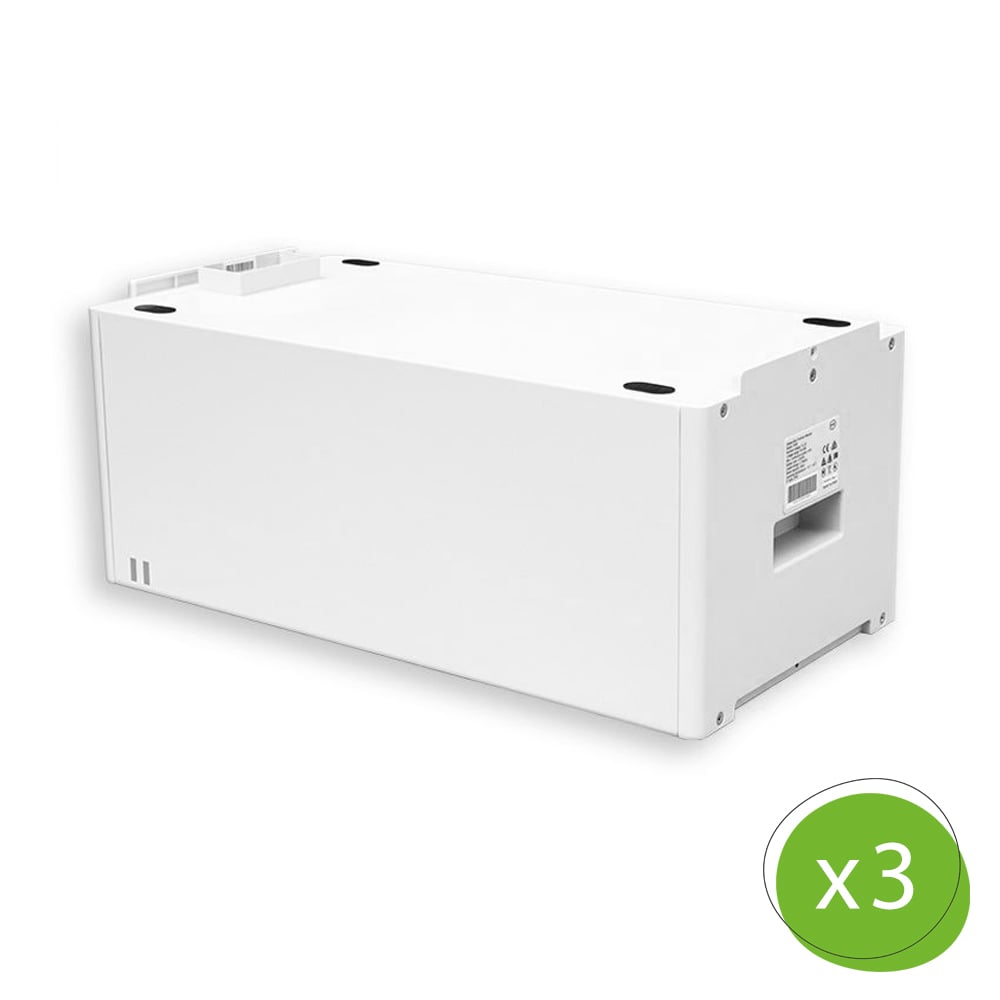

Battery module hvm 2.76 kWh
The hvm 2.76 kWh high-voltage battery module from byd impresses with its high cycle stability and remarkable longevity thanks to its LiFePO4 technology. The modular and stackable design of the battery allows versatile use in various scenarios and is characterized by very uncomplicated installation. It offers outstanding performance, even under high loads. Alongside the battery management system and the base, the battery is the main indicator of the byd hvm Battery Box Premium. This storage system is very easy to expand from 3 to 8 modules in series without cables. The parallel connection of up to 3 identical battery boxes also enables a maximum capacity of 66.2 kWh.
The new system generation
The new byd generation is based on the tried-and-tested storage systems and offers all the previous functions. You are launching a battery module on the market that has a higher storage capacity than its predecessor. Further development of the cell technology has reduced the system weight by almost 30 % and the installation depth by 8 cm, which requires less floor space and results in a slimmer appearance. A highlight of the new storage units is their IP55 protection class, which allows them to be used outdoors. In addition, the new generation offers even more flexibility and scalability. Up to three battery towers can now be connected to form a system. In terms of charging and discharging capacity, byd remains true to its line, as each battery can also deliver its nominal capacity as power, i.e. 1c. This makes the new series ideal for on-grid, on-grid plus backup and off-grid systems.
Modular battery system
The hvm Battery-Box can be configured with 3 to 8 hvm battery modules arranged in a series connection. This allows a capacity of 8.3 to 22.1kWh to be achieved. To achieve the maximum capacity of 66.2kWh, up to 3 identical hvm towers can be connected directly in parallel. It is also possible to expand the system later by adding further hvm modules or parallel hvm towers.
Supplied with power at all times: byd backup power and off-grid function
The hvm set is extremely versatile and can be used in both on-grid and off-grid systems. Its integrated emergency power function is particularly practical and often in demand. This enables the system to supply the entire household with power in the event of a power failure, either on one or three phases. The prerequisite for this is a compatible hybrid or storage inverter that supports both an emergency power and an off-grid function. A list of compatible inverters can be found in the "Downloads" section.
Power and storage capacity: scalability made easy
byd attaches great importance to the scalability of its storage systems. The new B-Box hvm is easy to retrofit and enables simple expansion. A simple plug-in connection eliminates any cable clutter and unnecessary complexity in the product design. It is possible to add additional storage modules. Furthermore, by connecting up to three storage towers in parallel, a maximum storage capacity of 66.2kWh and a discharge capacity of 66.2kW can be achieved. It is important to note that each storage tower must have the same number of modules.
Technical parameters per battery
- Capacity: 2.76 kWh
- Max. Output current: 50A
- Peak output current: 75a (3sec)
- Rated voltage: 51.2V
- Voltage range: 40~59V
- Dimensions: 233 x 585 x 298 mm
- Weight: 38 kg
- Operating temperature range: -10°C - +50°C
- Protection class: IP55
- Battery efficiency: >96%
- Communication: can / RS485
- Manufacturer's warranty: 10 years

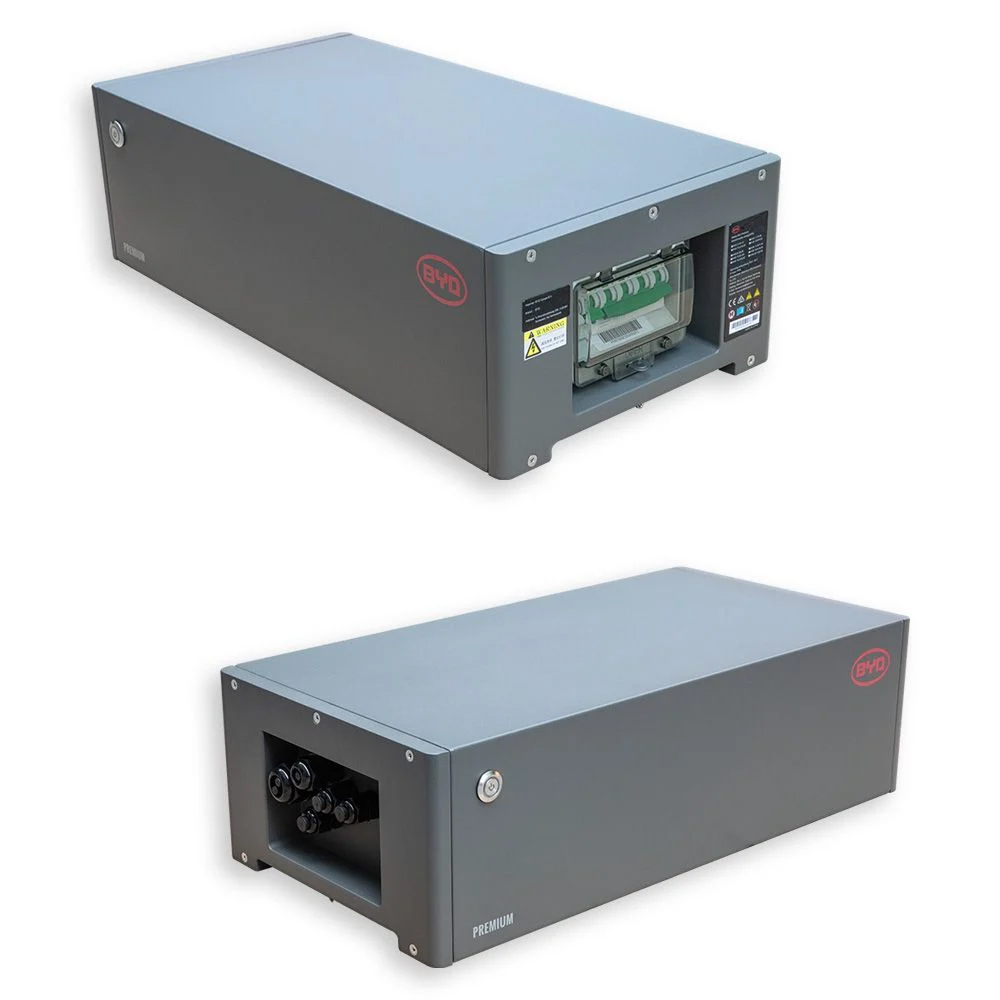

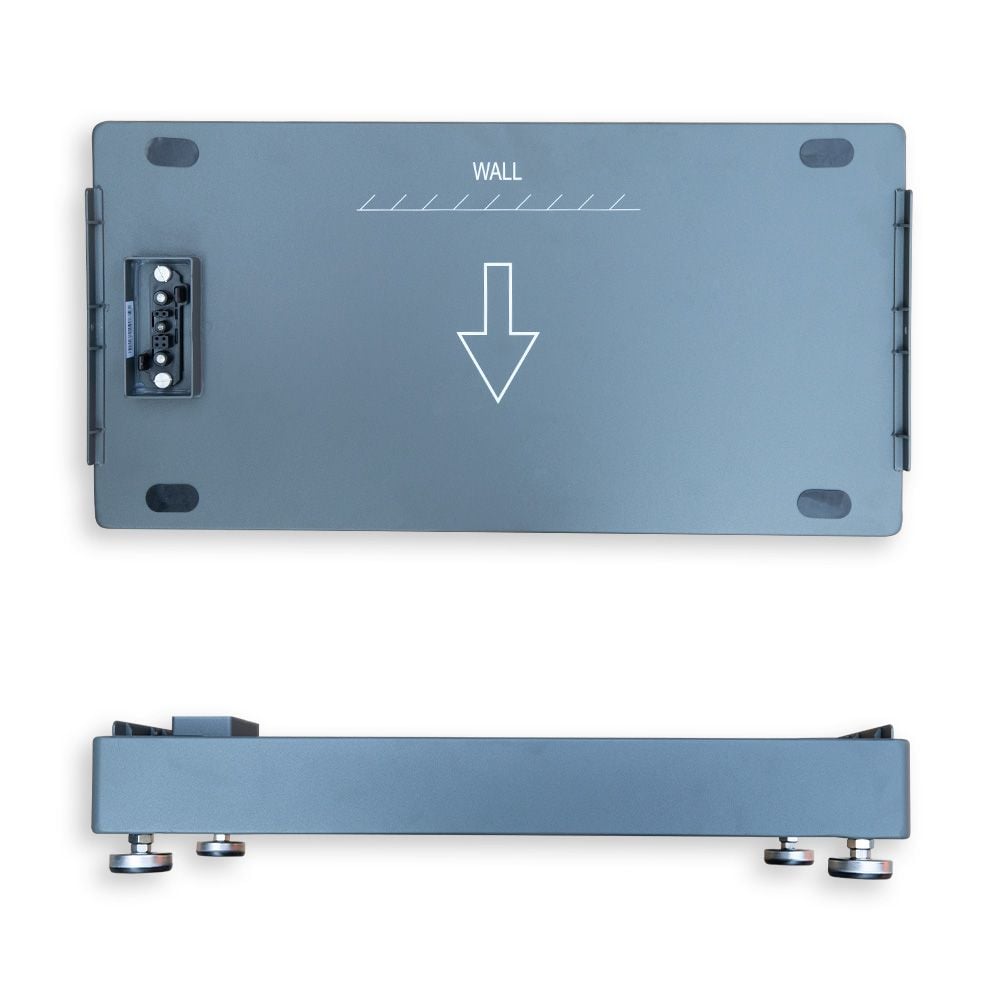

Control unit and base
The byd battery control unit and base provides protection, monitoring and a secure stand for the byd high-voltage battery storage system. This small set of 2 components can be used for the hvs and for the hvm battery box.
Technical parameters
- Control unit dimensions: 180 x 585 x 298 mm
- Base dimensions: 100 x 585 x 298 mm
- Weight: 15 kg
- Protection class: IP55
- Max. Discharge depth: 100%
- Manufacturer's warranty: 10 years
