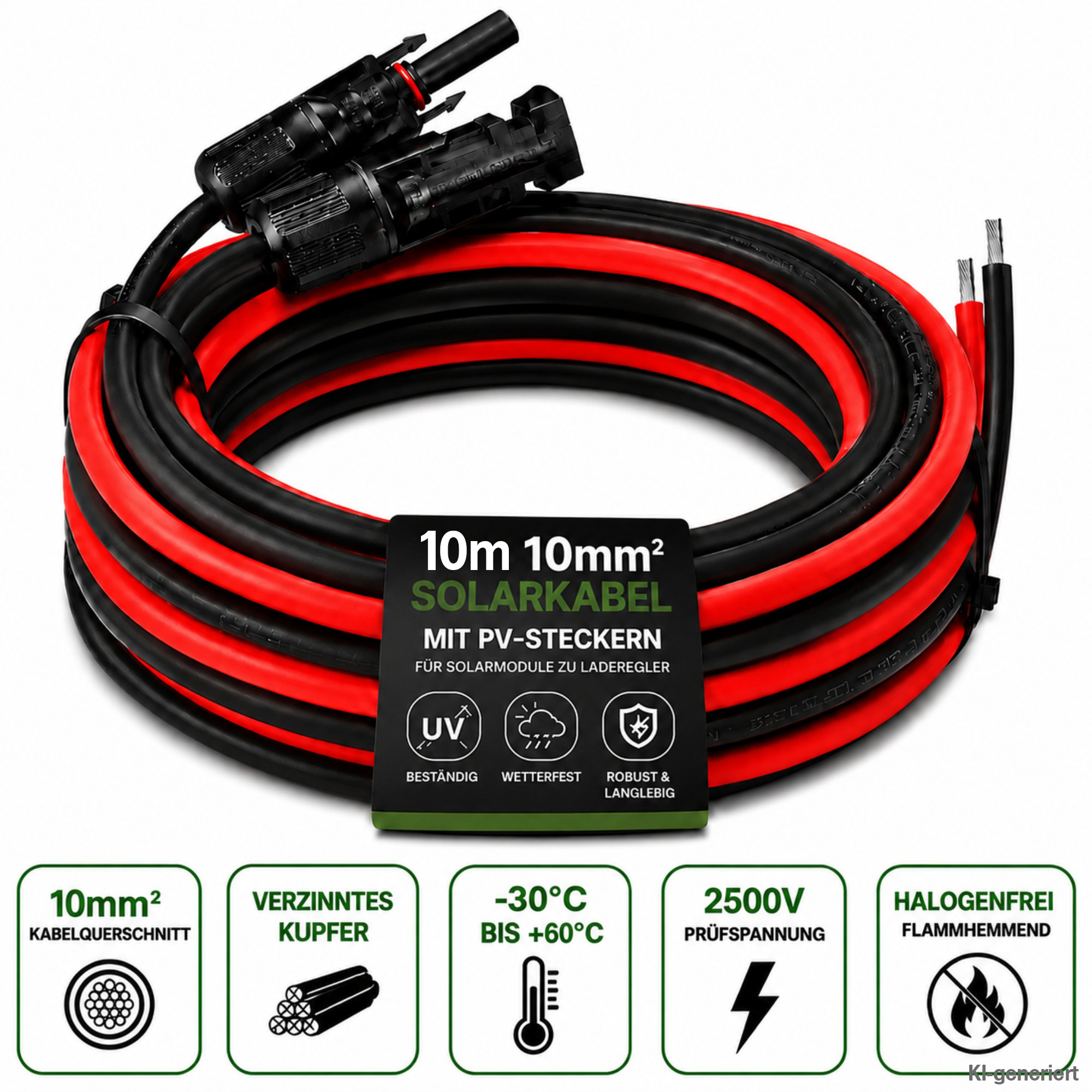

10m Offgridtec® professional connection cable 10mm² solar module to charge controller
Shipped in 1-3 days
€64.71*
€54.38**
This 2-core solar cable professionally connects the solar charge controller to the solar modules in a solar system. On the module side the cable has original Multi-Contact mc4 connectors and on the charge controller side the cable ends are cut for easy stripping of the sheath and exposure of the bare wire. The cable can be connected to any charge controller with appropriate receptacle (min 10mm²). Most 12v modules have mc-4 connectors. If your module has other plugs, you can find the appropriate adapters in our store.
All components were crimped with professional tools and show an optimal connection quality. The cable is manufactured in our factory in Lower Bavaria.
Due to the cross-section, cables with 4mm² from a length of 5m are only suitable for 24v systems and up. For 12v you should use at least 6mm².

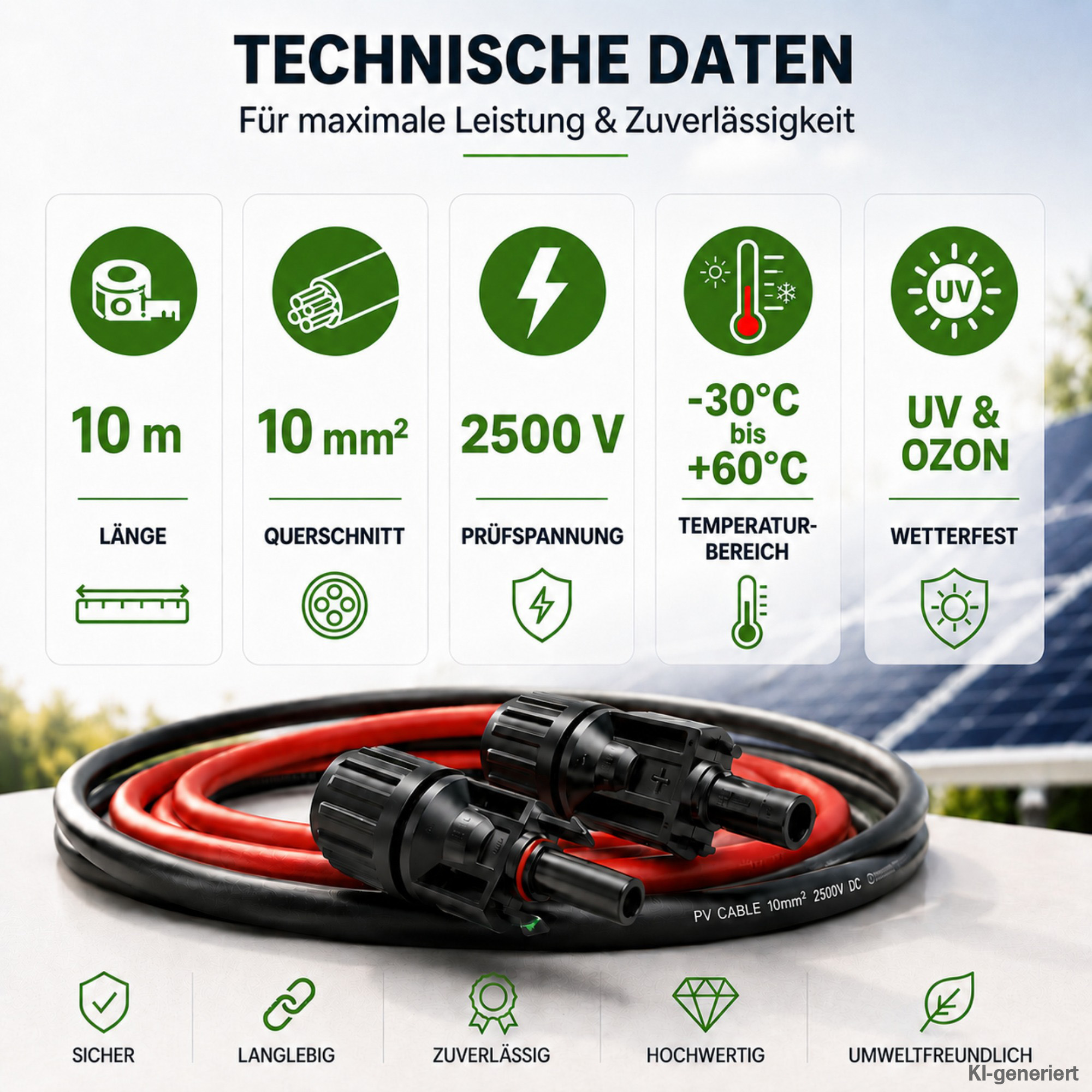

Features solar cable
- suitable from 12v system
- Length: 10m
- mc-4 connector
- 10mm² wire cross section
- double insulated
- resistant against: uv, ozone, weather, water
- very flexible
Properties mc-4 plug and socket
- Touch protection, unplugged IP2X
- Protection class, mated IP67
- Temperature application range -40° - +90°C
- Insulation material PA
- Locking system snap-in
- Cable strain relief according to iec 61984
- Contact system MC contact lamellae
- Contact material copper, tin-plated
- Flame class UL94-V0
- Protection class II
- System voltage up to 1000V
- Material: copper / tin
Scope of delivery:
1x 10m professional connection cable 10mm² solar module to charge controller
Manufactuerer Information
Offgridtec GmbH
Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
Germany
Mail: info@offgridtec.com
Tel.: +49 8721 9199400
